# What is dora-rs?
## Highlights

Dataflow-Oriented Robotic Architecture (dora-rs) is a framework that makes creation of robotic applications fast and simple.
- 🚀 A single CLI to launch your Python and Rust robotic projects.
- ⚡️ [10-17x faster](https://github.com/dora-rs/dora-benchmark/README.md) than `ros2`.
- 🐍 Easy and Fast prototyping with a clean [Python API](https://www.dora-rs.ai/docs/api/python-api).
- 🖥️ Supports macOS, Linux, and Windows.
- ⏬ Installable without Rust via `curl` or `powershell`.
- ❇️ Includes a large set of pre-packaged nodes for fast prototyping.
- 🛠️ Build and Run applications **without compilation step** beyond the native compiler of your favourite language.
- 🤖 Simplifies building robotic applications by integrating hardware, algorithms, and AI models to facilitate seamless communication.
- ⚙️ Eases integration of hardware and software by supporting Python, C, C++, and ROS2, while ensuring low-latency communication with zero-copy Arrow messages.

Building a robotic application can be summed up as bringing together hardwares, algorithms, and AI models, and make them communicate with each others. At dora-rs, we try to:
`dora-rs` is backed by [1ms.ai](https://1ms.ai).

- make integration of hardware and software easy by supporting Python, C, C++, and also ROS2.
- make communication low latency by using zero-copy Arrow messages.
## Installation

Install dora with our standalone installers, or from [crates.io](https://crates.io/crates/dora-cli):

### On macOS and Linux
```bash
curl --proto '=https' --tlsv1.2 -sSf https://raw.githubusercontent.com/dora-rs/dora/main/install.sh | bash
```

dora-rs is still experimental and you might experience bugs, but we're working very hard to make it stable as possible.
### On Windows
```powershell
powershell -c "irm https://raw.githubusercontent.com/dora-rs/dora/main/install.ps1 | iex"
```

## Performance
### With cargo
```bash
cargo install dora-cli
```

## Documentation

The full documentation is available on [our website](https://www.dora-rs.ai/docs).
A lot of guides are available on [this section](https://dora-rs.ai/docs/guides/) of our website.

## Getting Started

1. Run the benchmark example (Rust must be installed):

```bash
git clone https://github.com/dora-rs/dora
cd dora
cargo run --example benchmark --release
```

2. Run some Python examples (A venv must be activated):

```bash
# activate your venv here
cd dora/examples/python-dataflow
dora up
dora build dataflow.yml
dora start dataflow.yml
```

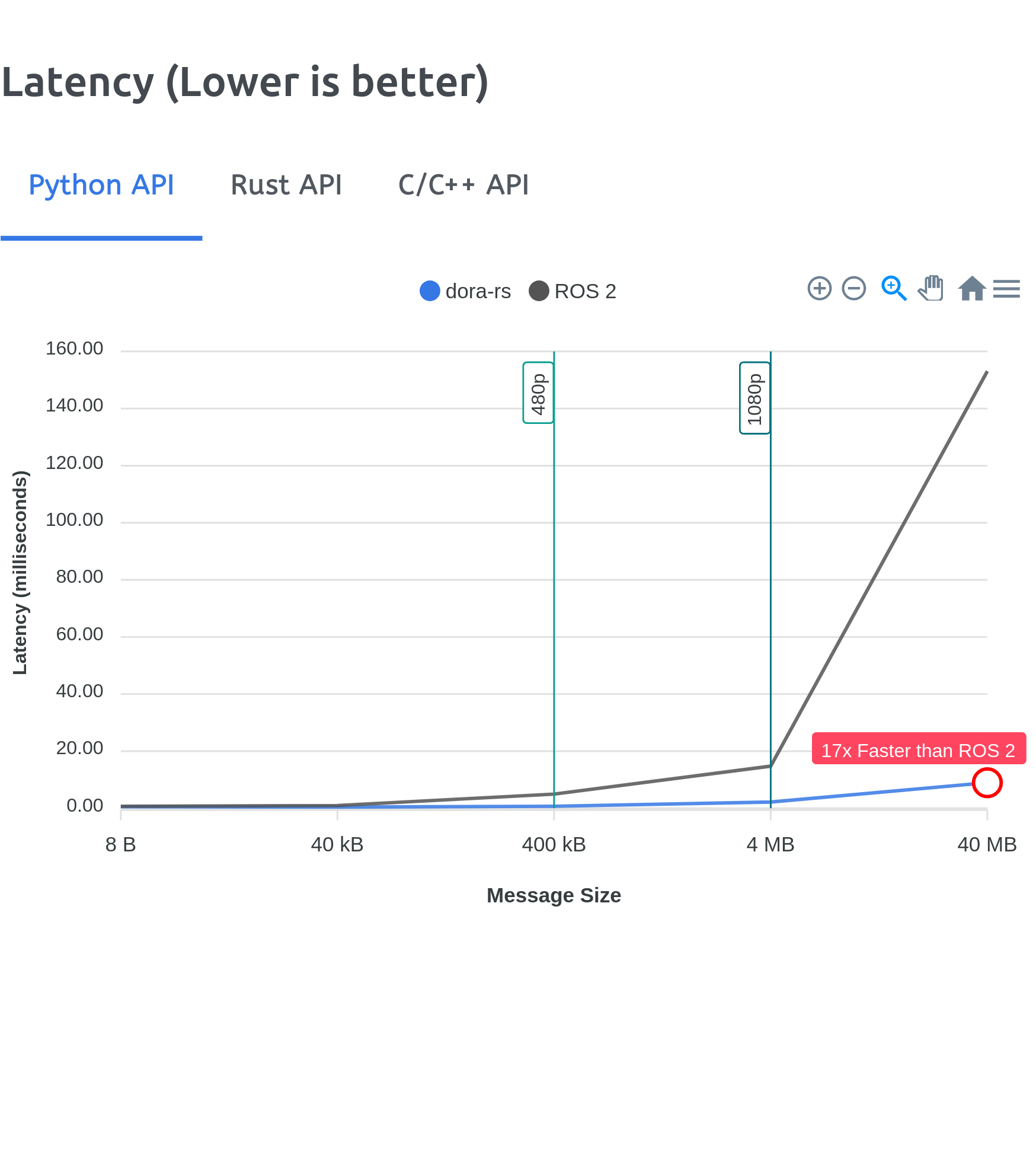

dora-rs can show impressive performance, up to 17x faster compared to current status quo ROS2 in Python! This is the result of using our own shared memory server and Apache Arrow to achieve zero copy data passing.
> Make sure to have a webcam

<a href="https://www.dora-rs.ai/">
<img src="./docs/src/latency.png" align="center" width="600">
</a>
To stop your dataflow, you can use <kbd>ctrl</kbd>+<kbd>c</kbd>

> See: https://github.com/dora-rs/dora-benchmark/tree/main for reproduction.
## What is Dora? And what features does Dora offer?

## Dataflow Paradigm
**D**ataflow-**O**riented **R**obotic **A**rchitecture (`dora-rs`) is a framework that makes creation of robotic applications fast and simple.

dora-rs implements a declarative dataflow paradigm where tasks are split between nodes isolated as individual processes.
`dora-rs` implements a declarative dataflow paradigm where tasks are split between nodes isolated as individual processes.

Each node defines its inputs and outputs to connect with other nodes.

```yaml
nodes:
- id: camera
build: pip install ../../node-hub/opencv-video-capture
path: opencv-video-capture
inputs:
tick: dora/timer/millis/20
outputs:
- image
env:
CAPTURE_PATH: 0
IMAGE_WIDTH: 640
IMAGE_HEIGHT: 480

- id: object-detection
build: pip install ../../node-hub/dora-yolo
path: dora-yolo
inputs:
image:
source: camera/image
queue_size: 1
outputs:
- bbox
env:
MODEL: yolov8n.pt

-
- id: plot
build: pip install ../../node-hub/opencv-plot
path: opencv-plot
inputs:
image:
source: camera/image
queue_size: 1
bbox: object-detection/bbox
image: camera/image
```

The dataflow paradigm has the advantage of creating an abstraction layer that makes robotic applications modular and easily configurable.

<a href="https://www.dora-rs.ai/">
<img src="https://raw.githubusercontent.com/dora-rs/dora-rs.github.io/main/static/img/overview.svg" align="center" width="600">
</a>
<p align="center">
<picture align="center">
<source media="(prefers-color-scheme: dark)" srcset="https://raw.githubusercontent.com/dora-rs/dora/improve-beginner-exp/docs/src/dora_diag_dark.svg">
<source media="(prefers-color-scheme: light)" srcset="https://raw.githubusercontent.com/dora-rs/dora/improve-beginner-exp/docs/src/dora_diag_light.svg">
<img src="https://raw.githubusercontent.com/dora-rs/dora/improve-beginner-exp/docs/src/dora_diag_light.svg">
</picture>
</p>

---

## Communication
It offers several features, such as:

### TCP Communication and Shared Memory

Communication between nodes is handled with shared memory on a same machine and TCP on distributed machines. Our shared memory implementation tracks messages across processes and discards them when obsolete. Shared memory slots are cached to avoid new memory allocation.

## Message Format
### Arrow Message Format

Nodes communicate with Apache Arrow Data Format.

[Apache Arrow](https://github.com/apache/arrow-rs) is a universal memory format for flat and hierarchical data. The Arrow memory format supports zero-copy reads for lightning-fast data access without serialization overhead. It defines a C data interface without any build-time or link-time dependency requirement, that means that dora-rs has **no compilation step** beyond the native compiler of your favourite language.

<img align="center" src="https://github.com/dora-rs/dora-rs.github.io/blob/main/static/img/arrow.png?raw=true" width="600">
[Apache Arrow](https://github.com/apache/arrow-rs) is a universal memory format for flat and hierarchical data. The Arrow memory format supports zero-copy reads for lightning-fast data access without serialization overhead. It defines a C data interface without any build-time or link-time dependency requirement, that means that `dora-rs` has **no compilation step** beyond the native compiler of your favourite language.

## Opentelemetry
### Opentelemetry

dora-rs uses Opentelemetry to record all your logs, metrics and traces. This means that the data and telemetry can be linked using a shared abstraction.

[Opentelemetry](https://opentelemetry.io/) is an open source observability standard that makes dora-rs telemetry collectable by most backends such as elasticsearch, prometheus, Datadog..
[Opentelemetry](https://opentelemetry.io/) is an open source observability standard that makes dora-rs telemetry collectable by most backends such as elasticsearch, prometheus, Datadog...

Opentelemetry is language independent, backend agnostic, and easily collect distributed data, making it perfect for dora-rs applications.

<img src="https://github.com/dora-rs/dora-rs.github.io/blob/main/static/img/opentelemetry.png?raw=true" align="center" width="600">

## Hot-Reloading
### Hot-Reloading

dora-rs implements Hot-Reloading for python which means you can change code at runtime in Python while keeping your state intact.

Using the feature flag: `--attach --hot-reload`, dora-rs watch for code change and reload nodes that has been modified.
You can check fail-safe mechanism at: https://github.com/dora-rs/dora/pull/239

<a href="http://www.youtube.com/watch?v=NvvTEP8Jak8">
<img align="center" width="600" alt="demo" src=http://img.youtube.com/vi/NvvTEP8Jak8/0.jpg>
</a>

## Self-Coding Robot: Code RAG (WIP)

You can easily create a self-coding robot, by combining Hot-reloading with a Retrieval Augmented Generation (RAG) that is going to generate code modification from your prompt.
See:[examples/python-operator-dataflow](examples/python-operator-dataflow)

<img src="https://github.com/dora-rs/dora-rs.github.io/blob/main/static/img/RAG.svg?raw=true" align="center" width="600">

Self-Coding Robot is just the tip of the iceberg of robotics combined with llm, that we hope to power. There is so much more that we haven't explored yet like:

- [self-debugging](https://arxiv.org/pdf/2304.05128.pdf)
- [memory](https://github.com/cpacker/MemGPT)
- [function calling](https://github.com/ShishirPatil/gorilla)
- ...

## Installation

Quickest way:

```bash
cargo install dora-cli --locked

dora --help
```

On Unix system, you can install dora without cargo with:

```bash
curl --proto '=https' --tlsv1.2 -sSf https://raw.githubusercontent.com/dora-rs/dora/main/install.sh | bash

dora --help
```

For more info on installation, check out [our guide](https://www.dora-rs.ai/docs/guides/Installation/installing).

## Getting Started
You can check fail-safe mechanism at: https://github.com/dora-rs/dora/pull/239.

1. Run the example:
See [this demo](http://www.youtube.com/watch?v=NvvTEP8Jak8).

```bash
git clone https://github.com/dora-rs/dora
cd examples/python-dataflow
dora build dataflow.yml
```
### ROS2 Bridge

2. Get some example operators:

```bash
dora up
dora start dataflow.yml
```

> Make sure to have a webcam

To stop your dataflow, you can use <kbd>ctrl</kbd>+<kbd>c</kbd>

To go further, you can add a yolov8 operator, check out our getting started here: https://www.dora-rs.ai/docs/guides/getting-started/yolov8/

## ROS2 Bridge
**Note**: this feature is marked as unstable.

- Compilation Free Message passing to ROS 2
- Automatic conversion ROS 2 Message <-> Arrow Array

```python
import random
import pyarrow as pa

# Configuration Boilerplate...
@@ -218,7 +200,28 @@ turtle_twist_writer.publish(message)

> You might want to use ChatGPT to write the Arrow Formatting: https://chat.openai.com/share/4eec1c6d-dbd2-46dc-b6cd-310d2895ba15

## Hardwares
## Showcases

### Self-Coding Robot: Code RAG (WIP)

You can easily create a self-coding robot, by combining Hot-reloading with a Retrieval Augmented Generation (RAG) that is going to generate code modification from your prompt.
See:[examples/python-operator-dataflow](examples/python-operator-dataflow)

<p align="center">
<picture align="center">
<source media="(prefers-color-scheme: dark)" srcset="https://raw.githubusercontent.com/dora-rs/dora/improve-beginner-exp/docs/src/self_coding_dark.svg">
<source media="(prefers-color-scheme: light)" srcset="https://raw.githubusercontent.com/dora-rs/dora/improve-beginner-exp/docs/src/self_coding_light.svg">
<img src="https://raw.githubusercontent.com/dora-rs/dora/improve-beginner-exp/docs/src/self_coding_light.svg">
</picture>
</p>

Self-Coding Robot is just the tip of the iceberg of robotics combined with llm, that we hope to power. There is so much more that we haven't explored yet like:

- [self-debugging](https://arxiv.org/pdf/2304.05128.pdf)
- [memory](https://github.com/cpacker/MemGPT)
- [function calling](https://github.com/ShishirPatil/gorilla)

### Cool Hardwares

Cool hardware that we think might be good fit to try out dora-rs 🙋 We are not sponsored by manufacturers:

@@ -235,23 +238,8 @@ Cool hardware that we think might be good fit to try out dora-rs 🙋 We are not

> For more: https://docs.google.com/spreadsheets/d/1YYeW2jfOIWDVgdEgqnMvltonHquQ7K8OZCrnJRELL6o/edit#gid=0

## Documentation

The full documentation is available on [our website](https://www.dora-rs.ai)

## Discussions

Our main communication channels are:

- [Our Discord server](https://discord.gg/6eMGGutkfE)
- [Our Github Project Discussion](https://github.com/orgs/dora-rs/discussions)

Feel free to reach out on any topic, issues or ideas.

We also have [a contributing guide](CONTRIBUTING.md).

## Support Matrix

| | dora-rs | Hoped for |
| --------------------------------- | --------------------------------------------------------- | ---------------------------------------------------------------------------------------------------------------------------------------- |
| **Tier 1 Support** | Python, Rust | C, C++, ROS 2 |
@@ -259,7 +247,7 @@ We also have [a contributing guide](CONTRIBUTING.md).
| **Hot-reloading** | Python | Rust (https://github.com/orgs/dora-rs/discussions/360) |
| **Message Format** | Arrow | Native |
| **Local Communication** | Shared Memory | Custom Middleware, [zero-copy GPU IPC](https://arrow.apache.org/docs/python/api/cuda.html), intra-process `tokio::channel` communication |
| **Remote Communication** | TCP (See: https://github.com/dora-rs/dora/issues/459) | Custom Middleware, [Zenoh](https://zenoh.io/) |
| **Remote Communication** | TCP | Custom Middleware, [Zenoh](https://zenoh.io/) |
| **Metrics, Tracing, and Logging** | Opentelemetry | Native logging libraries into Opentelemetry |
| **Data archives** | Parquet ([dora-record](libraries/extensions/dora-record)) |
| **Visualization and annotation** | OpenCV | [rerun.io](rerun.io) |
@@ -267,20 +255,22 @@ We also have [a contributing guide](CONTRIBUTING.md).
| **Supported Platforms (ARM)** | macOS, Linux |
| **Configuration** | YAML |

### Unstable functionality
## Contributing

`dora-rs` Ros2 Bridge is marked as **unstable**.
There are a number of reasons functionality may be marked as unstable:
We are passionate about supporting contributors of all levels of experience and would love to see
you get involved in the project. See the
[contributing guide](https://github.com/dora-rs/dora/blob/main/CONTRIBUTING.md) to get started.

- We are unsure about the exact API. The name, function signature, or implementation are likely to change in the future.
- The functionality is not tested extensively yet. Bugs may pop up when used in real-world scenarios.
- The functionality does not integrate well with the full dora-rs API. You may find it works in one context but not in another.
## Discussions

Releasing functionality as unstable allows us to gather important feedback from users that use dora-rs in real-world scenarios.
This helps us fine-tune things before giving it the final stamp of approval.
Users are only interested in solid, well-tested functionality can avoid this part of the API.
Our main communication channels are:

- [Our Discord server](https://discord.gg/6eMGGutkfE)
- [Our Github Project Discussion](https://github.com/orgs/dora-rs/discussions)

Functionality marked as unstable may change at any point without it being considered a breaking change.
Feel free to reach out on any topic, issues or ideas.

We also have [a contributing guide](CONTRIBUTING.md).

## License



+ 221
- 0
docs/src/Dora-RS.drawio View File

@@ -0,0 +1,221 @@
<mxfile host="app.diagrams.net" agent="Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/128.0.0.0 Safari/537.36" version="24.7.10">
<diagram name="Page-1" id="Zjxqgjh98Kea-gAgPe7l">
<mxGraphModel dx="1174" dy="1069" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="827" pageHeight="1169" math="0" shadow="0">
<root>
<mxCell id="0" />
<mxCell id="1" parent="0" />
<mxCell id="cViMoSzeVVcmjk6XKJUi-2" value="&lt;div&gt;&lt;br&gt;&lt;/div&gt;" style="rounded=1;whiteSpace=wrap;html=1;align=center;fillColor=#FFF2CC;" vertex="1" parent="1">
<mxGeometry x="190" y="120" width="490" height="160" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-3" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;CLI&lt;/b&gt;&lt;/font&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#F8CECC;" vertex="1" parent="1">
<mxGeometry x="80" y="180" width="70" height="40" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-4" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
<mxGeometry y="320" width="400" height="320" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-6" value="&lt;b&gt;&lt;font style=&quot;font-size: 18px;&quot;&gt;Daemon (Communication Layer, Data plane)&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;" vertex="1" parent="1">
<mxGeometry x="10" y="680" width="870" height="40" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-7" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;Node A&lt;/b&gt;&lt;/font&gt;&lt;div&gt;&lt;font size=&quot;3&quot;&gt;&lt;b&gt;(Dora Runtime)&lt;/b&gt;&lt;/font&gt;&lt;/div&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#DAE8FC;" vertex="1" parent="1">
<mxGeometry x="30" y="370" width="170" height="70" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-8" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;Node B&lt;/b&gt;&lt;br&gt;&lt;/font&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#DAE8FC;" vertex="1" parent="1">
<mxGeometry x="280" y="370" width="80" height="70" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-11" value="&lt;b&gt;Operator 1&lt;/b&gt;" style="rounded=0;whiteSpace=wrap;html=1;fillColor=#D5E8D4;" vertex="1" parent="1">
<mxGeometry x="65" y="465" width="100" height="30" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-12" value="&lt;b&gt;Operator 2&lt;/b&gt;" style="rounded=0;whiteSpace=wrap;html=1;fillColor=#D5E8D4;" vertex="1" parent="1">
<mxGeometry x="65" y="510" width="100" height="30" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-13" value="&lt;b&gt;Operator 3&lt;/b&gt;" style="rounded=0;whiteSpace=wrap;html=1;fillColor=#D5E8D4;" vertex="1" parent="1">
<mxGeometry x="65" y="555" width="100" height="30" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-14" value="&lt;b&gt;&lt;font style=&quot;font-size: 18px;&quot;&gt;C API&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#FFF2CC;" vertex="1" parent="1">
<mxGeometry x="280" y="495" width="80" height="60" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-15" value="&lt;b&gt;&lt;font style=&quot;font-size: 18px;&quot;&gt;RUST API&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#FFF2CC;" vertex="1" parent="1">
<mxGeometry x="190" y="495" width="80" height="60" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-18" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
<mxGeometry x="480" y="320" width="400" height="320" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-19" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;Node C&lt;/b&gt;&lt;/font&gt;&lt;div&gt;&lt;font size=&quot;3&quot;&gt;&lt;b&gt;(Dora Runtime)&lt;/b&gt;&lt;/font&gt;&lt;/div&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#DAE8FC;" vertex="1" parent="1">
<mxGeometry x="510" y="370" width="170" height="70" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-20" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;Node D&lt;/b&gt;&lt;br&gt;&lt;/font&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#DAE8FC;" vertex="1" parent="1">
<mxGeometry x="760" y="370" width="80" height="70" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-21" value="&lt;b&gt;Operator 4&lt;/b&gt;" style="rounded=0;whiteSpace=wrap;html=1;fillColor=#D5E8D4;" vertex="1" parent="1">
<mxGeometry x="545" y="465" width="100" height="30" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-22" value="&lt;b&gt;Operator 5&lt;/b&gt;" style="rounded=0;whiteSpace=wrap;html=1;fillColor=#D5E8D4;" vertex="1" parent="1">
<mxGeometry x="545" y="510" width="100" height="30" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-24" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;Python API&lt;/b&gt;&lt;/font&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#FFF2CC;" vertex="1" parent="1">
<mxGeometry x="760" y="495" width="80" height="60" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-25" value="&lt;b&gt;&lt;font style=&quot;font-size: 18px;&quot;&gt;Rust API&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#FFF2CC;" vertex="1" parent="1">
<mxGeometry x="670" y="495" width="80" height="60" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-26" value="&lt;b&gt;YAML Dataflow Layout&lt;/b&gt;" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
<mxGeometry x="220" y="180" width="110" height="50" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-27" value="&lt;b&gt;Cluster Management&lt;/b&gt;" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
<mxGeometry x="380" y="180" width="110" height="50" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-28" value="&lt;b&gt;Monitoring&lt;/b&gt;" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
<mxGeometry x="540" y="180" width="110" height="50" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-29" value="" style="endArrow=classic;html=1;rounded=0;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-3" target="cViMoSzeVVcmjk6XKJUi-2">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="470" y="510" as="sourcePoint" />
<mxPoint x="520" y="460" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-30" value="" style="endArrow=classic;html=1;rounded=0;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=0.25;entryY=0;entryDx=0;entryDy=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-15" target="cViMoSzeVVcmjk6XKJUi-6">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="470" y="510" as="sourcePoint" />
<mxPoint x="520" y="460" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-31" value="" style="endArrow=classic;html=1;rounded=0;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=0.25;entryY=0;entryDx=0;entryDy=0;" edge="1" parent="1">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="319.47" y="555" as="sourcePoint" />
<mxPoint x="319.47" y="680" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-32" value="" style="endArrow=classic;html=1;rounded=0;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=0.25;entryY=0;entryDx=0;entryDy=0;" edge="1" parent="1">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="700" y="555" as="sourcePoint" />
<mxPoint x="700" y="680" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-33" value="" style="endArrow=classic;html=1;rounded=0;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=0.25;entryY=0;entryDx=0;entryDy=0;" edge="1" parent="1">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="799.47" y="555" as="sourcePoint" />
<mxPoint x="799.47" y="680" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-34" value="" style="endArrow=classic;startArrow=classic;html=1;rounded=0;entryX=1;entryY=0.5;entryDx=0;entryDy=0;" edge="1" parent="1" target="cViMoSzeVVcmjk6XKJUi-2">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="880" y="700" as="sourcePoint" />
<mxPoint x="930" y="650" as="targetPoint" />
<Array as="points">
<mxPoint x="960" y="700" />
<mxPoint x="960" y="200" />
</Array>
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-37" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;Initializes dataflow data place&lt;/b&gt;&lt;/font&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;rotation=90;" vertex="1" parent="1">
<mxGeometry x="800" y="450" width="370" height="30" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-38" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.5;entryY=0;entryDx=0;entryDy=0;exitX=0.25;exitY=1;exitDx=0;exitDy=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-2" target="cViMoSzeVVcmjk6XKJUi-7">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="390" y="280" as="sourcePoint" />
<mxPoint x="440" y="230" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-39" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.5;entryY=0;entryDx=0;entryDy=0;exitX=0.5;exitY=1;exitDx=0;exitDy=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-2" target="cViMoSzeVVcmjk6XKJUi-8">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="400" y="290" as="sourcePoint" />
<mxPoint x="125" y="380" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-40" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.5;entryY=0;entryDx=0;entryDy=0;exitX=0.5;exitY=1;exitDx=0;exitDy=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-2" target="cViMoSzeVVcmjk6XKJUi-19">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="445" y="290" as="sourcePoint" />
<mxPoint x="330" y="380" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-41" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.5;entryY=0;entryDx=0;entryDy=0;exitX=0.75;exitY=1;exitDx=0;exitDy=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-2" target="cViMoSzeVVcmjk6XKJUi-20">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="455" y="300" as="sourcePoint" />
<mxPoint x="340" y="390" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-42" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.5;entryY=0;entryDx=0;entryDy=0;" edge="1" parent="1" target="cViMoSzeVVcmjk6XKJUi-14">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="320" y="440" as="sourcePoint" />
<mxPoint x="370" y="390" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-43" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.5;entryY=0;entryDx=0;entryDy=0;exitX=0.5;exitY=1;exitDx=0;exitDy=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-20" target="cViMoSzeVVcmjk6XKJUi-24">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="800" y="440" as="sourcePoint" />
<mxPoint x="850" y="390" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-44" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.5;entryY=0;entryDx=0;entryDy=0;" edge="1" parent="1" target="cViMoSzeVVcmjk6XKJUi-25">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="680" y="410" as="sourcePoint" />
<mxPoint x="730" y="360" as="targetPoint" />
<Array as="points">
<mxPoint x="710" y="410" />
</Array>
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-45" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.5;entryY=0;entryDx=0;entryDy=0;" edge="1" parent="1">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="200" y="410" as="sourcePoint" />
<mxPoint x="230" y="495" as="targetPoint" />
<Array as="points">
<mxPoint x="230" y="410" />
</Array>
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-46" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;Machine 1&lt;/b&gt;&lt;/font&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
<mxGeometry y="320" width="110" height="30" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-47" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;Machine 2&lt;/b&gt;&lt;/font&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
<mxGeometry x="770" y="320" width="110" height="30" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-48" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;Launches nodes&lt;/b&gt;&lt;/font&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
<mxGeometry x="360" y="240" width="160" height="30" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-49" value="&lt;font style=&quot;font-size: 18px;&quot;&gt;&lt;b&gt;Coordinator&lt;/b&gt;&lt;/font&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
<mxGeometry x="355" y="130" width="160" height="30" as="geometry" />
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-50" value="" style="endArrow=classic;startArrow=classic;html=1;rounded=0;entryX=0.5;entryY=0;entryDx=0;entryDy=0;exitX=0.5;exitY=1;exitDx=0;exitDy=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-7" target="cViMoSzeVVcmjk6XKJUi-11">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="60" y="490" as="sourcePoint" />
<mxPoint x="110" y="440" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-54" value="" style="endArrow=classic;startArrow=classic;html=1;rounded=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;exitX=0.127;exitY=1;exitDx=0;exitDy=0;exitPerimeter=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-7" target="cViMoSzeVVcmjk6XKJUi-12">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="10" y="570" as="sourcePoint" />
<mxPoint x="60" y="520" as="targetPoint" />
<Array as="points">
<mxPoint x="50" y="525" />
</Array>
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-55" value="" style="endArrow=classic;startArrow=classic;html=1;rounded=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;exitX=0.07;exitY=1.015;exitDx=0;exitDy=0;exitPerimeter=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-7" target="cViMoSzeVVcmjk6XKJUi-13">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="10" y="620" as="sourcePoint" />
<mxPoint x="60" y="570" as="targetPoint" />
<Array as="points">
<mxPoint x="40" y="570" />
</Array>
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-56" value="" style="endArrow=classic;startArrow=classic;html=1;rounded=0;exitX=0.5;exitY=0;exitDx=0;exitDy=0;entryX=0.5;entryY=1;entryDx=0;entryDy=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-21" target="cViMoSzeVVcmjk6XKJUi-19">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="450" y="320" as="sourcePoint" />
<mxPoint x="500" y="270" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="cViMoSzeVVcmjk6XKJUi-57" value="" style="endArrow=classic;startArrow=classic;html=1;rounded=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;exitX=0.106;exitY=1.011;exitDx=0;exitDy=0;exitPerimeter=0;" edge="1" parent="1" source="cViMoSzeVVcmjk6XKJUi-19" target="cViMoSzeVVcmjk6XKJUi-22">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="490" y="580" as="sourcePoint" />
<mxPoint x="540" y="530" as="targetPoint" />
<Array as="points">
<mxPoint x="528" y="525" />
</Array>
</mxGeometry>
</mxCell>
</root>
</mxGraphModel>
</diagram>
</mxfile>

+ 613
- 0
docs/src/bar_chart_dark.svg View File

@@ -0,0 +1,613 @@
<?xml version="1.0" encoding="utf-8" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN"
"http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">
<svg xmlns:xlink="http://www.w3.org/1999/xlink" width="576pt" height="144pt" viewBox="0 0 576 144" xmlns="http://www.w3.org/2000/svg" version="1.1">
<metadata>
<rdf:RDF xmlns:dc="http://purl.org/dc/elements/1.1/" xmlns:cc="http://creativecommons.org/ns#" xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#">
<cc:Work>
<dc:type rdf:resource="http://purl.org/dc/dcmitype/StillImage"/>
<dc:date>2024-09-04T10:41:15.616071</dc:date>
<dc:format>image/svg+xml</dc:format>
<dc:creator>
<cc:Agent>
<dc:title>Matplotlib v3.9.2, https://matplotlib.org/</dc:title>
</cc:Agent>
</dc:creator>
</cc:Work>
</rdf:RDF>
</metadata>
<defs>
<style type="text/css">*{stroke-linejoin: round; stroke-linecap: butt}</style>
</defs>
<g id="figure_1">
<g id="patch_1">
<path d="M 0 144
L 576 144
L 576 0
L 0 0
L 0 144
z
" style="fill: none; opacity: 0"/>
</g>
<g id="axes_1">
<g id="patch_2">
<path d="M 72 128.16
L 518.4 128.16
L 518.4 17.28
L 72 17.28
L 72 128.16
z
" style="fill: none"/>
</g>
<g id="patch_3">
<path d="M 72 22.32
L 96.823833 22.32
L 96.823833 62.64
L 72 62.64
z
" clip-path="url(#p9bd4d5c8bd)" style="fill: #800080"/>
</g>
<g id="patch_4">
<path d="M 72 82.8
L 497.142857 82.8
L 497.142857 123.12
L 72 123.12
z
" clip-path="url(#p9bd4d5c8bd)" style="fill: #808080; fill-opacity: 0.7"/>
</g>
<g id="matplotlib.axis_1">
<g id="xtick_1"/>
<g id="xtick_2"/>
<g id="xtick_3"/>
<g id="xtick_4"/>
<g id="xtick_5"/>
<g id="xtick_6"/>
<g id="xtick_7"/>
<g id="xtick_8"/>
<g id="xtick_9"/>
<g id="text_1">
<!-- Latency (ms) -->
<g style="fill: #ffffff" transform="translate(262.470312 139.758438) scale(0.1 -0.1)">
<defs>
<path id="DejaVuSans-4c" d="M 628 4666
L 1259 4666
L 1259 531
L 3531 531
L 3531 0
L 628 0
L 628 4666
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-61" d="M 2194 1759
Q 1497 1759 1228 1600
Q 959 1441 959 1056
Q 959 750 1161 570
Q 1363 391 1709 391
Q 2188 391 2477 730
Q 2766 1069 2766 1631
L 2766 1759
L 2194 1759
z
M 3341 1997
L 3341 0
L 2766 0
L 2766 531
Q 2569 213 2275 61
Q 1981 -91 1556 -91
Q 1019 -91 701 211
Q 384 513 384 1019
Q 384 1609 779 1909
Q 1175 2209 1959 2209
L 2766 2209
L 2766 2266
Q 2766 2663 2505 2880
Q 2244 3097 1772 3097
Q 1472 3097 1187 3025
Q 903 2953 641 2809
L 641 3341
Q 956 3463 1253 3523
Q 1550 3584 1831 3584
Q 2591 3584 2966 3190
Q 3341 2797 3341 1997
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-74" d="M 1172 4494
L 1172 3500
L 2356 3500
L 2356 3053
L 1172 3053
L 1172 1153
Q 1172 725 1289 603
Q 1406 481 1766 481
L 2356 481
L 2356 0
L 1766 0
Q 1100 0 847 248
Q 594 497 594 1153
L 594 3053
L 172 3053
L 172 3500
L 594 3500
L 594 4494
L 1172 4494
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-65" d="M 3597 1894
L 3597 1613
L 953 1613
Q 991 1019 1311 708
Q 1631 397 2203 397
Q 2534 397 2845 478
Q 3156 559 3463 722
L 3463 178
Q 3153 47 2828 -22
Q 2503 -91 2169 -91
Q 1331 -91 842 396
Q 353 884 353 1716
Q 353 2575 817 3079
Q 1281 3584 2069 3584
Q 2775 3584 3186 3129
Q 3597 2675 3597 1894
z
M 3022 2063
Q 3016 2534 2758 2815
Q 2500 3097 2075 3097
Q 1594 3097 1305 2825
Q 1016 2553 972 2059
L 3022 2063
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-6e" d="M 3513 2113
L 3513 0
L 2938 0
L 2938 2094
Q 2938 2591 2744 2837
Q 2550 3084 2163 3084
Q 1697 3084 1428 2787
Q 1159 2491 1159 1978
L 1159 0
L 581 0
L 581 3500
L 1159 3500
L 1159 2956
Q 1366 3272 1645 3428
Q 1925 3584 2291 3584
Q 2894 3584 3203 3211
Q 3513 2838 3513 2113
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-63" d="M 3122 3366
L 3122 2828
Q 2878 2963 2633 3030
Q 2388 3097 2138 3097
Q 1578 3097 1268 2742
Q 959 2388 959 1747
Q 959 1106 1268 751
Q 1578 397 2138 397
Q 2388 397 2633 464
Q 2878 531 3122 666
L 3122 134
Q 2881 22 2623 -34
Q 2366 -91 2075 -91
Q 1284 -91 818 406
Q 353 903 353 1747
Q 353 2603 823 3093
Q 1294 3584 2113 3584
Q 2378 3584 2631 3529
Q 2884 3475 3122 3366
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-79" d="M 2059 -325
Q 1816 -950 1584 -1140
Q 1353 -1331 966 -1331
L 506 -1331
L 506 -850
L 844 -850
Q 1081 -850 1212 -737
Q 1344 -625 1503 -206
L 1606 56
L 191 3500
L 800 3500
L 1894 763
L 2988 3500
L 3597 3500
L 2059 -325
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-20" transform="scale(0.015625)"/>
<path id="DejaVuSans-28" d="M 1984 4856
Q 1566 4138 1362 3434
Q 1159 2731 1159 2009
Q 1159 1288 1364 580
Q 1569 -128 1984 -844
L 1484 -844
Q 1016 -109 783 600
Q 550 1309 550 2009
Q 550 2706 781 3412
Q 1013 4119 1484 4856
L 1984 4856
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-6d" d="M 3328 2828
Q 3544 3216 3844 3400
Q 4144 3584 4550 3584
Q 5097 3584 5394 3201
Q 5691 2819 5691 2113
L 5691 0
L 5113 0
L 5113 2094
Q 5113 2597 4934 2840
Q 4756 3084 4391 3084
Q 3944 3084 3684 2787
Q 3425 2491 3425 1978
L 3425 0
L 2847 0
L 2847 2094
Q 2847 2600 2669 2842
Q 2491 3084 2119 3084
Q 1678 3084 1418 2786
Q 1159 2488 1159 1978
L 1159 0
L 581 0
L 581 3500
L 1159 3500
L 1159 2956
Q 1356 3278 1631 3431
Q 1906 3584 2284 3584
Q 2666 3584 2933 3390
Q 3200 3197 3328 2828
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-73" d="M 2834 3397
L 2834 2853
Q 2591 2978 2328 3040
Q 2066 3103 1784 3103
Q 1356 3103 1142 2972
Q 928 2841 928 2578
Q 928 2378 1081 2264
Q 1234 2150 1697 2047
L 1894 2003
Q 2506 1872 2764 1633
Q 3022 1394 3022 966
Q 3022 478 2636 193
Q 2250 -91 1575 -91
Q 1294 -91 989 -36
Q 684 19 347 128
L 347 722
Q 666 556 975 473
Q 1284 391 1588 391
Q 1994 391 2212 530
Q 2431 669 2431 922
Q 2431 1156 2273 1281
Q 2116 1406 1581 1522
L 1381 1569
Q 847 1681 609 1914
Q 372 2147 372 2553
Q 372 3047 722 3315
Q 1072 3584 1716 3584
Q 2034 3584 2315 3537
Q 2597 3491 2834 3397
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-29" d="M 513 4856
L 1013 4856
Q 1481 4119 1714 3412
Q 1947 2706 1947 2009
Q 1947 1309 1714 600
Q 1481 -109 1013 -844
L 513 -844
Q 928 -128 1133 580
Q 1338 1288 1338 2009
Q 1338 2731 1133 3434
Q 928 4138 513 4856
z
" transform="scale(0.015625)"/>
</defs>
<use xlink:href="#DejaVuSans-4c"/>
<use xlink:href="#DejaVuSans-61" x="55.712891"/>
<use xlink:href="#DejaVuSans-74" x="116.992188"/>
<use xlink:href="#DejaVuSans-65" x="156.201172"/>
<use xlink:href="#DejaVuSans-6e" x="217.724609"/>
<use xlink:href="#DejaVuSans-63" x="281.103516"/>
<use xlink:href="#DejaVuSans-79" x="336.083984"/>
<use xlink:href="#DejaVuSans-20" x="395.263672"/>
<use xlink:href="#DejaVuSans-28" x="427.050781"/>
<use xlink:href="#DejaVuSans-6d" x="466.064453"/>
<use xlink:href="#DejaVuSans-73" x="563.476562"/>
<use xlink:href="#DejaVuSans-29" x="615.576172"/>
</g>
</g>
</g>
<g id="matplotlib.axis_2">
<g id="ytick_1">
<g id="text_2">
<!-- dora -->
<g style="fill: #ffffff" transform="translate(42.29375 46.279219) scale(0.1 -0.1)">
<defs>
<path id="DejaVuSans-64" d="M 2906 2969
L 2906 4863
L 3481 4863
L 3481 0
L 2906 0
L 2906 525
Q 2725 213 2448 61
Q 2172 -91 1784 -91
Q 1150 -91 751 415
Q 353 922 353 1747
Q 353 2572 751 3078
Q 1150 3584 1784 3584
Q 2172 3584 2448 3432
Q 2725 3281 2906 2969
z
M 947 1747
Q 947 1113 1208 752
Q 1469 391 1925 391
Q 2381 391 2643 752
Q 2906 1113 2906 1747
Q 2906 2381 2643 2742
Q 2381 3103 1925 3103
Q 1469 3103 1208 2742
Q 947 2381 947 1747
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-6f" d="M 1959 3097
Q 1497 3097 1228 2736
Q 959 2375 959 1747
Q 959 1119 1226 758
Q 1494 397 1959 397
Q 2419 397 2687 759
Q 2956 1122 2956 1747
Q 2956 2369 2687 2733
Q 2419 3097 1959 3097
z
M 1959 3584
Q 2709 3584 3137 3096
Q 3566 2609 3566 1747
Q 3566 888 3137 398
Q 2709 -91 1959 -91
Q 1206 -91 779 398
Q 353 888 353 1747
Q 353 2609 779 3096
Q 1206 3584 1959 3584
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-72" d="M 2631 2963
Q 2534 3019 2420 3045
Q 2306 3072 2169 3072
Q 1681 3072 1420 2755
Q 1159 2438 1159 1844
L 1159 0
L 581 0
L 581 3500
L 1159 3500
L 1159 2956
Q 1341 3275 1631 3429
Q 1922 3584 2338 3584
Q 2397 3584 2469 3576
Q 2541 3569 2628 3553
L 2631 2963
z
" transform="scale(0.015625)"/>
</defs>
<use xlink:href="#DejaVuSans-64"/>
<use xlink:href="#DejaVuSans-6f" x="63.476562"/>
<use xlink:href="#DejaVuSans-72" x="124.658203"/>
<use xlink:href="#DejaVuSans-61" x="165.771484"/>
</g>
</g>
</g>
<g id="ytick_2">
<g id="text_3">
<!-- ros2 -->
<g style="fill: #ffffff" transform="translate(43.423437 106.759219) scale(0.1 -0.1)">
<defs>
<path id="DejaVuSans-32" d="M 1228 531
L 3431 531
L 3431 0
L 469 0
L 469 531
Q 828 903 1448 1529
Q 2069 2156 2228 2338
Q 2531 2678 2651 2914
Q 2772 3150 2772 3378
Q 2772 3750 2511 3984
Q 2250 4219 1831 4219
Q 1534 4219 1204 4116
Q 875 4013 500 3803
L 500 4441
Q 881 4594 1212 4672
Q 1544 4750 1819 4750
Q 2544 4750 2975 4387
Q 3406 4025 3406 3419
Q 3406 3131 3298 2873
Q 3191 2616 2906 2266
Q 2828 2175 2409 1742
Q 1991 1309 1228 531
z
" transform="scale(0.015625)"/>
</defs>
<use xlink:href="#DejaVuSans-72"/>
<use xlink:href="#DejaVuSans-6f" x="38.863281"/>
<use xlink:href="#DejaVuSans-73" x="100.044922"/>
<use xlink:href="#DejaVuSans-32" x="152.144531"/>
</g>
</g>
</g>
</g>
<g id="text_4">
<!-- 8.9 -->
<g style="fill: #ffffff" transform="translate(99.600549 45.239375) scale(0.1 -0.1)">
<defs>
<path id="DejaVuSans-38" d="M 2034 2216
Q 1584 2216 1326 1975
Q 1069 1734 1069 1313
Q 1069 891 1326 650
Q 1584 409 2034 409
Q 2484 409 2743 651
Q 3003 894 3003 1313
Q 3003 1734 2745 1975
Q 2488 2216 2034 2216
z
M 1403 2484
Q 997 2584 770 2862
Q 544 3141 544 3541
Q 544 4100 942 4425
Q 1341 4750 2034 4750
Q 2731 4750 3128 4425
Q 3525 4100 3525 3541
Q 3525 3141 3298 2862
Q 3072 2584 2669 2484
Q 3125 2378 3379 2068
Q 3634 1759 3634 1313
Q 3634 634 3220 271
Q 2806 -91 2034 -91
Q 1263 -91 848 271
Q 434 634 434 1313
Q 434 1759 690 2068
Q 947 2378 1403 2484
z
M 1172 3481
Q 1172 3119 1398 2916
Q 1625 2713 2034 2713
Q 2441 2713 2670 2916
Q 2900 3119 2900 3481
Q 2900 3844 2670 4047
Q 2441 4250 2034 4250
Q 1625 4250 1398 4047
Q 1172 3844 1172 3481
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-2e" d="M 684 794
L 1344 794
L 1344 0
L 684 0
L 684 794
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-39" d="M 703 97
L 703 672
Q 941 559 1184 500
Q 1428 441 1663 441
Q 2288 441 2617 861
Q 2947 1281 2994 2138
Q 2813 1869 2534 1725
Q 2256 1581 1919 1581
Q 1219 1581 811 2004
Q 403 2428 403 3163
Q 403 3881 828 4315
Q 1253 4750 1959 4750
Q 2769 4750 3195 4129
Q 3622 3509 3622 2328
Q 3622 1225 3098 567
Q 2575 -91 1691 -91
Q 1453 -91 1209 -44
Q 966 3 703 97
z
M 1959 2075
Q 2384 2075 2632 2365
Q 2881 2656 2881 3163
Q 2881 3666 2632 3958
Q 2384 4250 1959 4250
Q 1534 4250 1286 3958
Q 1038 3666 1038 3163
Q 1038 2656 1286 2365
Q 1534 2075 1959 2075
z
" transform="scale(0.015625)"/>
</defs>
<use xlink:href="#DejaVuSans-38"/>
<use xlink:href="#DejaVuSans-2e" x="63.623047"/>
<use xlink:href="#DejaVuSans-39" x="95.410156"/>
</g>
</g>
<g id="text_5">
<!-- 153.1 -->
<g style="fill: #ffffff" transform="translate(499.919572 105.719375) scale(0.1 -0.1)">
<defs>
<path id="DejaVuSans-31" d="M 794 531
L 1825 531
L 1825 4091
L 703 3866
L 703 4441
L 1819 4666
L 2450 4666
L 2450 531
L 3481 531
L 3481 0
L 794 0
L 794 531
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-35" d="M 691 4666
L 3169 4666
L 3169 4134
L 1269 4134
L 1269 2991
Q 1406 3038 1543 3061
Q 1681 3084 1819 3084
Q 2600 3084 3056 2656
Q 3513 2228 3513 1497
Q 3513 744 3044 326
Q 2575 -91 1722 -91
Q 1428 -91 1123 -41
Q 819 9 494 109
L 494 744
Q 775 591 1075 516
Q 1375 441 1709 441
Q 2250 441 2565 725
Q 2881 1009 2881 1497
Q 2881 1984 2565 2268
Q 2250 2553 1709 2553
Q 1456 2553 1204 2497
Q 953 2441 691 2322
L 691 4666
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-33" d="M 2597 2516
Q 3050 2419 3304 2112
Q 3559 1806 3559 1356
Q 3559 666 3084 287
Q 2609 -91 1734 -91
Q 1441 -91 1130 -33
Q 819 25 488 141
L 488 750
Q 750 597 1062 519
Q 1375 441 1716 441
Q 2309 441 2620 675
Q 2931 909 2931 1356
Q 2931 1769 2642 2001
Q 2353 2234 1838 2234
L 1294 2234
L 1294 2753
L 1863 2753
Q 2328 2753 2575 2939
Q 2822 3125 2822 3475
Q 2822 3834 2567 4026
Q 2313 4219 1838 4219
Q 1578 4219 1281 4162
Q 984 4106 628 3988
L 628 4550
Q 988 4650 1302 4700
Q 1616 4750 1894 4750
Q 2613 4750 3031 4423
Q 3450 4097 3450 3541
Q 3450 3153 3228 2886
Q 3006 2619 2597 2516
z
" transform="scale(0.015625)"/>
</defs>
<use xlink:href="#DejaVuSans-31"/>
<use xlink:href="#DejaVuSans-35" x="63.623047"/>
<use xlink:href="#DejaVuSans-33" x="127.246094"/>
<use xlink:href="#DejaVuSans-2e" x="190.869141"/>
<use xlink:href="#DejaVuSans-31" x="222.65625"/>
</g>
</g>
</g>
</g>
<defs>
<clipPath id="p9bd4d5c8bd">
<rect x="72" y="17.28" width="446.4" height="110.88"/>
</clipPath>
</defs>
</svg>

+ 613
- 0
docs/src/bar_chart_light.svg View File

@@ -0,0 +1,613 @@
<?xml version="1.0" encoding="utf-8" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN"
"http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">
<svg xmlns:xlink="http://www.w3.org/1999/xlink" width="576pt" height="144pt" viewBox="0 0 576 144" xmlns="http://www.w3.org/2000/svg" version="1.1">
<metadata>
<rdf:RDF xmlns:dc="http://purl.org/dc/elements/1.1/" xmlns:cc="http://creativecommons.org/ns#" xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#">
<cc:Work>
<dc:type rdf:resource="http://purl.org/dc/dcmitype/StillImage"/>
<dc:date>2024-09-04T10:41:15.595594</dc:date>
<dc:format>image/svg+xml</dc:format>
<dc:creator>
<cc:Agent>
<dc:title>Matplotlib v3.9.2, https://matplotlib.org/</dc:title>
</cc:Agent>
</dc:creator>
</cc:Work>
</rdf:RDF>
</metadata>
<defs>
<style type="text/css">*{stroke-linejoin: round; stroke-linecap: butt}</style>
</defs>
<g id="figure_1">
<g id="patch_1">
<path d="M 0 144
L 576 144
L 576 0
L 0 0
L 0 144
z
" style="fill: none; opacity: 0"/>
</g>
<g id="axes_1">
<g id="patch_2">
<path d="M 72 128.16
L 518.4 128.16
L 518.4 17.28
L 72 17.28
L 72 128.16
z
" style="fill: none"/>
</g>
<g id="patch_3">
<path d="M 72 22.32
L 96.823833 22.32
L 96.823833 62.64
L 72 62.64
z
" clip-path="url(#p124895ea21)" style="fill: #800080"/>
</g>
<g id="patch_4">
<path d="M 72 82.8
L 497.142857 82.8
L 497.142857 123.12
L 72 123.12
z
" clip-path="url(#p124895ea21)" style="fill: #808080; fill-opacity: 0.7"/>
</g>
<g id="matplotlib.axis_1">
<g id="xtick_1"/>
<g id="xtick_2"/>
<g id="xtick_3"/>
<g id="xtick_4"/>
<g id="xtick_5"/>
<g id="xtick_6"/>
<g id="xtick_7"/>
<g id="xtick_8"/>
<g id="xtick_9"/>
<g id="text_1">
<!-- Latency (ms) -->
<g transform="translate(262.470312 139.758438) scale(0.1 -0.1)">
<defs>
<path id="DejaVuSans-4c" d="M 628 4666
L 1259 4666
L 1259 531
L 3531 531
L 3531 0
L 628 0
L 628 4666
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-61" d="M 2194 1759
Q 1497 1759 1228 1600
Q 959 1441 959 1056
Q 959 750 1161 570
Q 1363 391 1709 391
Q 2188 391 2477 730
Q 2766 1069 2766 1631
L 2766 1759
L 2194 1759
z
M 3341 1997
L 3341 0
L 2766 0
L 2766 531
Q 2569 213 2275 61
Q 1981 -91 1556 -91
Q 1019 -91 701 211
Q 384 513 384 1019
Q 384 1609 779 1909
Q 1175 2209 1959 2209
L 2766 2209
L 2766 2266
Q 2766 2663 2505 2880
Q 2244 3097 1772 3097
Q 1472 3097 1187 3025
Q 903 2953 641 2809
L 641 3341
Q 956 3463 1253 3523
Q 1550 3584 1831 3584
Q 2591 3584 2966 3190
Q 3341 2797 3341 1997
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-74" d="M 1172 4494
L 1172 3500
L 2356 3500
L 2356 3053
L 1172 3053
L 1172 1153
Q 1172 725 1289 603
Q 1406 481 1766 481
L 2356 481
L 2356 0
L 1766 0
Q 1100 0 847 248
Q 594 497 594 1153
L 594 3053
L 172 3053
L 172 3500
L 594 3500
L 594 4494
L 1172 4494
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-65" d="M 3597 1894
L 3597 1613
L 953 1613
Q 991 1019 1311 708
Q 1631 397 2203 397
Q 2534 397 2845 478
Q 3156 559 3463 722
L 3463 178
Q 3153 47 2828 -22
Q 2503 -91 2169 -91
Q 1331 -91 842 396
Q 353 884 353 1716
Q 353 2575 817 3079
Q 1281 3584 2069 3584
Q 2775 3584 3186 3129
Q 3597 2675 3597 1894
z
M 3022 2063
Q 3016 2534 2758 2815
Q 2500 3097 2075 3097
Q 1594 3097 1305 2825
Q 1016 2553 972 2059
L 3022 2063
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-6e" d="M 3513 2113
L 3513 0
L 2938 0
L 2938 2094
Q 2938 2591 2744 2837
Q 2550 3084 2163 3084
Q 1697 3084 1428 2787
Q 1159 2491 1159 1978
L 1159 0
L 581 0
L 581 3500
L 1159 3500
L 1159 2956
Q 1366 3272 1645 3428
Q 1925 3584 2291 3584
Q 2894 3584 3203 3211
Q 3513 2838 3513 2113
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-63" d="M 3122 3366
L 3122 2828
Q 2878 2963 2633 3030
Q 2388 3097 2138 3097
Q 1578 3097 1268 2742
Q 959 2388 959 1747
Q 959 1106 1268 751
Q 1578 397 2138 397
Q 2388 397 2633 464
Q 2878 531 3122 666
L 3122 134
Q 2881 22 2623 -34
Q 2366 -91 2075 -91
Q 1284 -91 818 406
Q 353 903 353 1747
Q 353 2603 823 3093
Q 1294 3584 2113 3584
Q 2378 3584 2631 3529
Q 2884 3475 3122 3366
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-79" d="M 2059 -325
Q 1816 -950 1584 -1140
Q 1353 -1331 966 -1331
L 506 -1331
L 506 -850
L 844 -850
Q 1081 -850 1212 -737
Q 1344 -625 1503 -206
L 1606 56
L 191 3500
L 800 3500
L 1894 763
L 2988 3500
L 3597 3500
L 2059 -325
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-20" transform="scale(0.015625)"/>
<path id="DejaVuSans-28" d="M 1984 4856
Q 1566 4138 1362 3434
Q 1159 2731 1159 2009
Q 1159 1288 1364 580
Q 1569 -128 1984 -844
L 1484 -844
Q 1016 -109 783 600
Q 550 1309 550 2009
Q 550 2706 781 3412
Q 1013 4119 1484 4856
L 1984 4856
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-6d" d="M 3328 2828
Q 3544 3216 3844 3400
Q 4144 3584 4550 3584
Q 5097 3584 5394 3201
Q 5691 2819 5691 2113
L 5691 0
L 5113 0
L 5113 2094
Q 5113 2597 4934 2840
Q 4756 3084 4391 3084
Q 3944 3084 3684 2787
Q 3425 2491 3425 1978
L 3425 0
L 2847 0
L 2847 2094
Q 2847 2600 2669 2842
Q 2491 3084 2119 3084
Q 1678 3084 1418 2786
Q 1159 2488 1159 1978
L 1159 0
L 581 0
L 581 3500
L 1159 3500
L 1159 2956
Q 1356 3278 1631 3431
Q 1906 3584 2284 3584
Q 2666 3584 2933 3390
Q 3200 3197 3328 2828
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-73" d="M 2834 3397
L 2834 2853
Q 2591 2978 2328 3040
Q 2066 3103 1784 3103
Q 1356 3103 1142 2972
Q 928 2841 928 2578
Q 928 2378 1081 2264
Q 1234 2150 1697 2047
L 1894 2003
Q 2506 1872 2764 1633
Q 3022 1394 3022 966
Q 3022 478 2636 193
Q 2250 -91 1575 -91
Q 1294 -91 989 -36
Q 684 19 347 128
L 347 722
Q 666 556 975 473
Q 1284 391 1588 391
Q 1994 391 2212 530
Q 2431 669 2431 922
Q 2431 1156 2273 1281
Q 2116 1406 1581 1522
L 1381 1569
Q 847 1681 609 1914
Q 372 2147 372 2553
Q 372 3047 722 3315
Q 1072 3584 1716 3584
Q 2034 3584 2315 3537
Q 2597 3491 2834 3397
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-29" d="M 513 4856
L 1013 4856
Q 1481 4119 1714 3412
Q 1947 2706 1947 2009
Q 1947 1309 1714 600
Q 1481 -109 1013 -844
L 513 -844
Q 928 -128 1133 580
Q 1338 1288 1338 2009
Q 1338 2731 1133 3434
Q 928 4138 513 4856
z
" transform="scale(0.015625)"/>
</defs>
<use xlink:href="#DejaVuSans-4c"/>
<use xlink:href="#DejaVuSans-61" x="55.712891"/>
<use xlink:href="#DejaVuSans-74" x="116.992188"/>
<use xlink:href="#DejaVuSans-65" x="156.201172"/>
<use xlink:href="#DejaVuSans-6e" x="217.724609"/>
<use xlink:href="#DejaVuSans-63" x="281.103516"/>
<use xlink:href="#DejaVuSans-79" x="336.083984"/>
<use xlink:href="#DejaVuSans-20" x="395.263672"/>
<use xlink:href="#DejaVuSans-28" x="427.050781"/>
<use xlink:href="#DejaVuSans-6d" x="466.064453"/>
<use xlink:href="#DejaVuSans-73" x="563.476562"/>
<use xlink:href="#DejaVuSans-29" x="615.576172"/>
</g>
</g>
</g>
<g id="matplotlib.axis_2">
<g id="ytick_1">
<g id="text_2">
<!-- dora -->
<g transform="translate(42.29375 46.279219) scale(0.1 -0.1)">
<defs>
<path id="DejaVuSans-64" d="M 2906 2969
L 2906 4863
L 3481 4863
L 3481 0
L 2906 0
L 2906 525
Q 2725 213 2448 61
Q 2172 -91 1784 -91
Q 1150 -91 751 415
Q 353 922 353 1747
Q 353 2572 751 3078
Q 1150 3584 1784 3584
Q 2172 3584 2448 3432
Q 2725 3281 2906 2969
z
M 947 1747
Q 947 1113 1208 752
Q 1469 391 1925 391
Q 2381 391 2643 752
Q 2906 1113 2906 1747
Q 2906 2381 2643 2742
Q 2381 3103 1925 3103
Q 1469 3103 1208 2742
Q 947 2381 947 1747
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-6f" d="M 1959 3097
Q 1497 3097 1228 2736
Q 959 2375 959 1747
Q 959 1119 1226 758
Q 1494 397 1959 397
Q 2419 397 2687 759
Q 2956 1122 2956 1747
Q 2956 2369 2687 2733
Q 2419 3097 1959 3097
z
M 1959 3584
Q 2709 3584 3137 3096
Q 3566 2609 3566 1747
Q 3566 888 3137 398
Q 2709 -91 1959 -91
Q 1206 -91 779 398
Q 353 888 353 1747
Q 353 2609 779 3096
Q 1206 3584 1959 3584
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-72" d="M 2631 2963
Q 2534 3019 2420 3045
Q 2306 3072 2169 3072
Q 1681 3072 1420 2755
Q 1159 2438 1159 1844
L 1159 0
L 581 0
L 581 3500
L 1159 3500
L 1159 2956
Q 1341 3275 1631 3429
Q 1922 3584 2338 3584
Q 2397 3584 2469 3576
Q 2541 3569 2628 3553
L 2631 2963
z
" transform="scale(0.015625)"/>
</defs>
<use xlink:href="#DejaVuSans-64"/>
<use xlink:href="#DejaVuSans-6f" x="63.476562"/>
<use xlink:href="#DejaVuSans-72" x="124.658203"/>
<use xlink:href="#DejaVuSans-61" x="165.771484"/>
</g>
</g>
</g>
<g id="ytick_2">
<g id="text_3">
<!-- ros2 -->
<g transform="translate(43.423437 106.759219) scale(0.1 -0.1)">
<defs>
<path id="DejaVuSans-32" d="M 1228 531
L 3431 531
L 3431 0
L 469 0
L 469 531
Q 828 903 1448 1529
Q 2069 2156 2228 2338
Q 2531 2678 2651 2914
Q 2772 3150 2772 3378
Q 2772 3750 2511 3984
Q 2250 4219 1831 4219
Q 1534 4219 1204 4116
Q 875 4013 500 3803
L 500 4441
Q 881 4594 1212 4672
Q 1544 4750 1819 4750
Q 2544 4750 2975 4387
Q 3406 4025 3406 3419
Q 3406 3131 3298 2873
Q 3191 2616 2906 2266
Q 2828 2175 2409 1742
Q 1991 1309 1228 531
z
" transform="scale(0.015625)"/>
</defs>
<use xlink:href="#DejaVuSans-72"/>
<use xlink:href="#DejaVuSans-6f" x="38.863281"/>
<use xlink:href="#DejaVuSans-73" x="100.044922"/>
<use xlink:href="#DejaVuSans-32" x="152.144531"/>
</g>
</g>
</g>
</g>
<g id="text_4">
<!-- 8.9 -->
<g transform="translate(99.600549 45.239375) scale(0.1 -0.1)">
<defs>
<path id="DejaVuSans-38" d="M 2034 2216
Q 1584 2216 1326 1975
Q 1069 1734 1069 1313
Q 1069 891 1326 650
Q 1584 409 2034 409
Q 2484 409 2743 651
Q 3003 894 3003 1313
Q 3003 1734 2745 1975
Q 2488 2216 2034 2216
z
M 1403 2484
Q 997 2584 770 2862
Q 544 3141 544 3541
Q 544 4100 942 4425
Q 1341 4750 2034 4750
Q 2731 4750 3128 4425
Q 3525 4100 3525 3541
Q 3525 3141 3298 2862
Q 3072 2584 2669 2484
Q 3125 2378 3379 2068
Q 3634 1759 3634 1313
Q 3634 634 3220 271
Q 2806 -91 2034 -91
Q 1263 -91 848 271
Q 434 634 434 1313
Q 434 1759 690 2068
Q 947 2378 1403 2484
z
M 1172 3481
Q 1172 3119 1398 2916
Q 1625 2713 2034 2713
Q 2441 2713 2670 2916
Q 2900 3119 2900 3481
Q 2900 3844 2670 4047
Q 2441 4250 2034 4250
Q 1625 4250 1398 4047
Q 1172 3844 1172 3481
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-2e" d="M 684 794
L 1344 794
L 1344 0
L 684 0
L 684 794
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-39" d="M 703 97
L 703 672
Q 941 559 1184 500
Q 1428 441 1663 441
Q 2288 441 2617 861
Q 2947 1281 2994 2138
Q 2813 1869 2534 1725
Q 2256 1581 1919 1581
Q 1219 1581 811 2004
Q 403 2428 403 3163
Q 403 3881 828 4315
Q 1253 4750 1959 4750
Q 2769 4750 3195 4129
Q 3622 3509 3622 2328
Q 3622 1225 3098 567
Q 2575 -91 1691 -91
Q 1453 -91 1209 -44
Q 966 3 703 97
z
M 1959 2075
Q 2384 2075 2632 2365
Q 2881 2656 2881 3163
Q 2881 3666 2632 3958
Q 2384 4250 1959 4250
Q 1534 4250 1286 3958
Q 1038 3666 1038 3163
Q 1038 2656 1286 2365
Q 1534 2075 1959 2075
z
" transform="scale(0.015625)"/>
</defs>
<use xlink:href="#DejaVuSans-38"/>
<use xlink:href="#DejaVuSans-2e" x="63.623047"/>
<use xlink:href="#DejaVuSans-39" x="95.410156"/>
</g>
</g>
<g id="text_5">
<!-- 153.1 -->
<g transform="translate(499.919572 105.719375) scale(0.1 -0.1)">
<defs>
<path id="DejaVuSans-31" d="M 794 531
L 1825 531
L 1825 4091
L 703 3866
L 703 4441
L 1819 4666
L 2450 4666
L 2450 531
L 3481 531
L 3481 0
L 794 0
L 794 531
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-35" d="M 691 4666
L 3169 4666
L 3169 4134
L 1269 4134
L 1269 2991
Q 1406 3038 1543 3061
Q 1681 3084 1819 3084
Q 2600 3084 3056 2656
Q 3513 2228 3513 1497
Q 3513 744 3044 326
Q 2575 -91 1722 -91
Q 1428 -91 1123 -41
Q 819 9 494 109
L 494 744
Q 775 591 1075 516
Q 1375 441 1709 441
Q 2250 441 2565 725
Q 2881 1009 2881 1497
Q 2881 1984 2565 2268
Q 2250 2553 1709 2553
Q 1456 2553 1204 2497
Q 953 2441 691 2322
L 691 4666
z
" transform="scale(0.015625)"/>
<path id="DejaVuSans-33" d="M 2597 2516
Q 3050 2419 3304 2112
Q 3559 1806 3559 1356
Q 3559 666 3084 287
Q 2609 -91 1734 -91
Q 1441 -91 1130 -33
Q 819 25 488 141
L 488 750
Q 750 597 1062 519
Q 1375 441 1716 441
Q 2309 441 2620 675
Q 2931 909 2931 1356
Q 2931 1769 2642 2001
Q 2353 2234 1838 2234
L 1294 2234
L 1294 2753
L 1863 2753
Q 2328 2753 2575 2939
Q 2822 3125 2822 3475
Q 2822 3834 2567 4026
Q 2313 4219 1838 4219
Q 1578 4219 1281 4162
Q 984 4106 628 3988
L 628 4550
Q 988 4650 1302 4700
Q 1616 4750 1894 4750
Q 2613 4750 3031 4423
Q 3450 4097 3450 3541
Q 3450 3153 3228 2886
Q 3006 2619 2597 2516
z
" transform="scale(0.015625)"/>
</defs>
<use xlink:href="#DejaVuSans-31"/>
<use xlink:href="#DejaVuSans-35" x="63.623047"/>
<use xlink:href="#DejaVuSans-33" x="127.246094"/>
<use xlink:href="#DejaVuSans-2e" x="190.869141"/>
<use xlink:href="#DejaVuSans-31" x="222.65625"/>
</g>
</g>
</g>
</g>
<defs>
<clipPath id="p124895ea21">
<rect x="72" y="17.28" width="446.4" height="110.88"/>
</clipPath>
</defs>
</svg>

+ 3
- 0
docs/src/dora_diag_dark.svg
File diff suppressed because it is too large
View File


+ 3
- 0
docs/src/dora_diag_light.svg
File diff suppressed because it is too large
View File


BIN
docs/src/latency.png View File

Before After
Width: 1748  |  Height: 1970  |  Size: 213 kB

+ 117
- 0
docs/src/self_coding.drawio View File

@@ -0,0 +1,117 @@
<mxfile host="app.diagrams.net" agent="Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/128.0.0.0 Safari/537.36" version="24.7.10">
<diagram name="Page-1" id="MpIWeJbdh5Kd0poBk-Rj">
<mxGraphModel dx="973" dy="883" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="827" pageHeight="1169" math="0" shadow="0">
<root>
<mxCell id="0" />
<mxCell id="1" parent="0" />
<mxCell id="kSFPQLvTRyV1PGuO4xu3-5" value="" style="rounded=1;whiteSpace=wrap;html=1;fillColor=none;" vertex="1" parent="1">
<mxGeometry x="80" y="400" width="320" height="160" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-6" value="&lt;b&gt;&lt;font style=&quot;font-size: 14px;&quot;&gt;Node 1&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#E8F6D8;" vertex="1" parent="1">
<mxGeometry x="190" y="420" width="90" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-7" value="&lt;b&gt;&lt;font style=&quot;font-size: 14px;&quot;&gt;Node 2&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#E8F6D8;" vertex="1" parent="1">
<mxGeometry x="190" y="460" width="90" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-8" value="&lt;b&gt;&lt;font style=&quot;font-size: 14px;&quot;&gt;Node 3&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#E8F6D8;" vertex="1" parent="1">
<mxGeometry x="190" y="500" width="90" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-9" value="&lt;b&gt;&lt;font style=&quot;font-size: 14px;&quot;&gt;LLM&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#E3E4E6;" vertex="1" parent="1">
<mxGeometry x="290" y="460" width="90" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-11" value="&lt;font style=&quot;font-size: 14px;&quot;&gt;&lt;b&gt;Instruction&lt;/b&gt;&lt;/font&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#D7D3F0;" vertex="1" parent="1">
<mxGeometry x="90" y="420" width="90" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-12" value="" style="rounded=1;whiteSpace=wrap;html=1;fillColor=none;" vertex="1" parent="1">
<mxGeometry x="414" y="400" width="320" height="160" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-13" value="&lt;b&gt;&lt;font style=&quot;font-size: 14px;&quot;&gt;New Node 2&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#E8F6D8;" vertex="1" parent="1">
<mxGeometry x="460" y="460" width="90" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-14" value="&lt;b&gt;&lt;font style=&quot;font-size: 14px;&quot;&gt;Old Node 2&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#E8F6D8;dashed=1;" vertex="1" parent="1">
<mxGeometry x="610" y="460" width="90" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-15" value="&lt;b&gt;&lt;font style=&quot;font-size: 14px;&quot;&gt;New Node 2 with old state&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#E8F6D8;" vertex="1" parent="1">
<mxGeometry x="460" y="520" width="240" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-16" value="&lt;b&gt;&lt;font style=&quot;font-size: 14px;&quot;&gt;New Code for Node 2&lt;/font&gt;&lt;/b&gt;" style="rounded=1;whiteSpace=wrap;html=1;fillColor=#FBEEE7;" vertex="1" parent="1">
<mxGeometry x="460" y="410" width="160" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-17" value="&lt;b&gt;&lt;font style=&quot;font-size: 14px;&quot;&gt;RAG&lt;/font&gt;&lt;/b&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
<mxGeometry x="205" y="560" width="60" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-18" value="&lt;b&gt;&lt;font style=&quot;font-size: 14px;&quot;&gt;Hot Reloading&lt;/font&gt;&lt;/b&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
<mxGeometry x="521" y="560" width="106" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-27" value="" style="curved=1;endArrow=classic;html=1;rounded=0;entryX=0.75;entryY=0;entryDx=0;entryDy=0;" edge="1" parent="1" target="kSFPQLvTRyV1PGuO4xu3-9">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="180" y="430" as="sourcePoint" />
<mxPoint x="230" y="380" as="targetPoint" />
<Array as="points">
<mxPoint x="190" y="410" />
<mxPoint x="230" y="400" />
<mxPoint x="270" y="420" />
<mxPoint x="370" y="420" />
</Array>
</mxGeometry>
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-28" value="" style="curved=1;endArrow=classic;html=1;rounded=0;exitX=0.5;exitY=1;exitDx=0;exitDy=0;" edge="1" parent="1" source="kSFPQLvTRyV1PGuO4xu3-11">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="140" y="530" as="sourcePoint" />
<mxPoint x="190" y="480" as="targetPoint" />
<Array as="points">
<mxPoint x="120" y="490" />
<mxPoint x="135" y="500" />
<mxPoint x="160" y="490" />
</Array>
</mxGeometry>
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-29" value="" style="curved=1;endArrow=classic;html=1;rounded=0;entryX=0.5;entryY=0;entryDx=0;entryDy=0;" edge="1" parent="1" target="kSFPQLvTRyV1PGuO4xu3-9">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="280" y="480" as="sourcePoint" />
<mxPoint x="330" y="430" as="targetPoint" />
<Array as="points">
<mxPoint x="290" y="450" />
<mxPoint x="300" y="440" />
<mxPoint x="340" y="440" />
</Array>
</mxGeometry>
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-30" value="" style="curved=1;endArrow=classic;html=1;rounded=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;" edge="1" parent="1" target="kSFPQLvTRyV1PGuO4xu3-16">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="380" y="480" as="sourcePoint" />
<mxPoint x="430" y="430" as="targetPoint" />
<Array as="points">
<mxPoint x="430" y="480" />
<mxPoint x="400" y="430" />
</Array>
</mxGeometry>
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-32" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.444;entryY=-0.002;entryDx=0;entryDy=0;exitX=0.25;exitY=1;exitDx=0;exitDy=0;entryPerimeter=0;" edge="1" parent="1" source="kSFPQLvTRyV1PGuO4xu3-16" target="kSFPQLvTRyV1PGuO4xu3-13">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="500" y="440" as="sourcePoint" />
<mxPoint x="550" y="390" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-33" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.832;entryY=0.003;entryDx=0;entryDy=0;exitX=0.25;exitY=1;exitDx=0;exitDy=0;entryPerimeter=0;" edge="1" parent="1" target="kSFPQLvTRyV1PGuO4xu3-15">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="660" y="490" as="sourcePoint" />
<mxPoint x="660" y="510" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-34" value="" style="endArrow=classic;html=1;rounded=0;entryX=0.832;entryY=0.003;entryDx=0;entryDy=0;exitX=0.25;exitY=1;exitDx=0;exitDy=0;entryPerimeter=0;" edge="1" parent="1">
<mxGeometry width="50" height="50" relative="1" as="geometry">
<mxPoint x="504.93" y="490" as="sourcePoint" />
<mxPoint x="504.93" y="520" as="targetPoint" />
</mxGeometry>
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-35" value="&lt;font style=&quot;font-size: 12px;&quot;&gt;&lt;b&gt;Spawn&lt;/b&gt;&lt;/font&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
<mxGeometry x="504" y="433" width="60" height="30" as="geometry" />
</mxCell>
<mxCell id="kSFPQLvTRyV1PGuO4xu3-36" value="&lt;font style=&quot;font-size: 12px;&quot;&gt;&lt;b&gt;Copy State&lt;/b&gt;&lt;/font&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
<mxGeometry x="540" y="490" width="70" height="30" as="geometry" />
</mxCell>
</root>
</mxGraphModel>
</diagram>
</mxfile>

+ 3
- 0
docs/src/self_coding_dark.svg
File diff suppressed because it is too large
View File


+ 3
- 0
docs/src/self_coding_light.svg
File diff suppressed because it is too large
View File


Write Preview
Loading…
Cancel
Save
