add image_classification

model_zoo/official/lite/image_classification/.gitignore

@@ -0,0 +1,81 @@
+# MindSpore
+build/
+mindspore/lib
+output
+*.ir
+mindspore/ccsrc/schema/inner/*
+
+# Cmake files
+CMakeFiles/
+cmake_install.cmake
+CMakeCache.txt
+Makefile
+cmake-build-debug
+
+# Dynamic libraries
+*.so
+*.so.*
+*.dylib
+
+# Static libraries
+*.la
+*.lai
+*.a
+*.lib
+
+# Protocol buffers
+*_pb2.py
+*.pb.h
+*.pb.cc
+
+# Object files
+*.o
+
+# Editor
+.vscode
+.idea/
+
+# Cquery
+.cquery_cached_index/
+compile_commands.json
+
+# Ctags and cscope
+tags
+TAGS
+CTAGS
+GTAGS
+GRTAGS
+GSYMS
+GPATH
+cscope.*
+
+# Python files
+*__pycache__*
+.pytest_cache
+
+# Mac files
+*.DS_Store
+
+# Test results
+test_temp_summary_event_file/
+*.dot
+*.dat
+*.svg
+*.perf
+*.info
+*.ckpt
+*.shp
+*.pkl
+.clangd
+mindspore/version.py
+mindspore/default_config.py
+mindspore/.commit_id
+onnx.proto
+mindspore/ccsrc/onnx.proto
+
+# Android
+local.properties
+.gradle
+sdk/build
+sdk/.cxx
+app/.cxx

model_zoo/official/lite/image_classification/README.md

@@ -0,0 +1,275 @@
+## MindSpore Lite 端侧图像分类demo（Android）
+
+本示例程序演示了如何在端侧利用MindSpore Lite C++ API（Android JNI）以及MindSpore Lite 图像分类模型完成端侧推理，实现对设备摄像头捕获的内容进行分类，并在App图像预览界面中显示出最可能的分类结果。
+
+
+### 运行依赖
+
+- Android Studio >= 3.2 (推荐4.0以上版本)
+- NDK 21.3
+- CMake 3.10
+- Android SDK >= 26
+- OpenCV >= 4.0.0
+
+### 构建与运行
+
+1. 在Android Studio中加载本示例源码，并安装相应的SDK（指定SDK版本后，由Android Studio自动安装）。
+
+    ![start_home](images/home.png)
+
+    启动Android Studio后，点击`File->Settings->System Settings->Android SDK`，勾选相应的SDK。如下图所示，勾选后，点击`OK`，Android Studio即可自动安装SDK。
+
+    ![start_sdk](images/sdk_management.png)
+
+    （可选）若安装时出现NDK版本问题，可手动下载相应的[NDK版本](https://developer.android.com/ndk/downloads?hl=zh-cn)（本示例代码使用的NDK版本为21.3），并在`Project Structure`的`Android NDK location`设置中指定SDK的位置。
+
+    ![project_structure](images/project_structure.png)
+
+2. 连接Android设备，运行图像分类应用程序。
+
+    通过USB连接Android设备调试，点击`Run 'app'`即可在您的设备上运行本示例项目。
+
+    * 注：编译过程中Android Studio会自动下载MindSpore Lite、OpenCV、模型文件等相关依赖项，编译过程需做耐心等待。
+
+    ![run_app](images/run_app.PNG)
+
+    Android Studio连接设备调试操作，可参考<https://developer.android.com/studio/run/device?hl=zh-cn>。
+

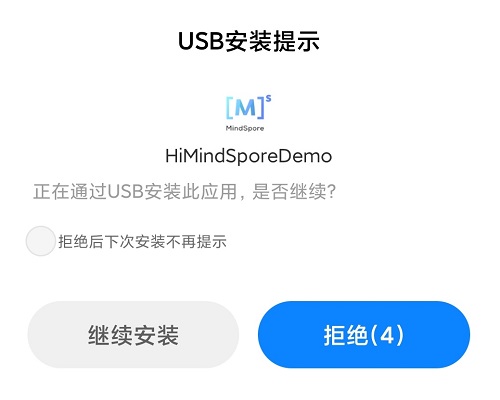

+3. 在Android设备上，点击“继续安装”，安装完即可查看到设备摄像头捕获的内容和推理结果。
+
+    ![install](images/install.jpg)
+
+    如下图所示，识别出的概率最高的物体是植物。
+
+    ![result](images/app_result.jpg)
+
+
+## 示例程序详细说明
+
+本端侧图像分类Android示例程序分为JAVA层和JNI层，其中，JAVA层主要通过Android Camera 2 API实现摄像头获取图像帧，以及相应的图像处理等功能；JNI层在[Runtime](https://www.mindspore.cn/tutorial/zh-CN/master/use/lite_runtime.html)中完成模型推理的过程。
+
+> 此处详细说明示例程序的JNI层实现，JAVA层运用Android Camera 2 API实现开启设备摄像头以及图像帧处理等功能，需读者具备一定的Android开发基础知识。
+
+### 示例程序结构
+
+```
+app
+|
+├── libs # 存放demo jni层依赖的库文件
+│   └── arm64-v8a
+│       ├── libopencv_java4.so  # opencv
+│       ├── libmlkit-label-MS.so  # ndk编译生成的库文件
+│       └── libmindspore-lite.so # mindspore lite
+|
+├── src/main
+│   ├── assets # 资源文件
+|   |   └── mobilenetv2.ms # 存放模型文件
+│   |
+│   ├── cpp # 模型加载和预测主要逻辑封装类
+|   |   ├── include # 存放MindSpore调用相关的头文件
+|   |   |   └── ...
+│   |   |
+|   |   ├── MindSporeNetnative.cpp # MindSpore调用相关的JNI方法
+│   |   └── MindSporeNetnative.h # 头文件
+│   |
+│   ├── java # java层应用代码
+│   │   └── com.huawei.himindsporedemo
+│   │       ├── gallery.classify # 图像处理及MindSpore JNI调用相关实现
+│   │       │   └── ...
+│   │       └── obejctdetect # 开启摄像头及绘制相关实现
+│   │           └── ...
+│   │
+│   ├── res # 存放Android相关的资源文件
+│   └── AndroidManifest.xml # Android配置文件
+│
+├── CMakeList.txt # cmake编译入口文件
+│
+├── build.gradle # 其他Android配置文件
+├── download.gradle # APP构建时由gradle自动从HuaWei Server下载依赖的库文件及模型文件
+└── ...
+```
+
+### 配置MindSpore Lite依赖项
+
+Android JNI层调用MindSpore C++ API时，需要相关库文件支持。可通过MindSpore Lite[源码编译](https://www.mindspore.cn/lite/docs/zh-CN/master/deploy.html)生成`libmindspore-lite.so`库文件，或直接下载MindSpore Lite提供的已编译完成的AMR64、ARM32、x86等[软件包](#TODO)。
+
+在Android Studio中将编译完成的`libmindspore-lite.so`库文件（可包含多个兼容架构），分别放置在APP工程的`app/libs/arm64-v8a`（ARM64）或`app/libs/armeabi-v7a`（ARM32）目录下，并在应用的`build.gradle`文件中配置CMake编译支持，以及`arm64-v8a`和`armeabi-v7a`的编译支持。
+
+本示例中，build过程由download.gradle文件自动从华为服务器下载libmindspore-lite.so以及OpenCV的libopencv_java4.so库文件，并放置在`app/libs/arm64-v8a`目录下。
+
+* 注：若自动下载失败，请手动下载相关库文件并将其放在对应位置：
+* libmindspore-lite.so [下载链接](https://download.mindspore.cn/model_zoo/official/lite/lib/mindspore%20version%200.7/libmindspore-lite.so)
+* libopencv_java4.so [下载链接](https://download.mindspore.cn/model_zoo/official/lite/lib/opencv%204.4.0/libopencv_java4.so)
+
+```
+android{
+    defaultConfig{
+        externalNativeBuild{
+            cmake{
+                arguments "-DANDROID_STL=c++_shared"
+            }
+        }
+
+        ndk{
+            abiFilters 'arm64-v8a'
+        }
+    }
+}
+```
+
+在`app/CMakeLists.txt`文件中建立`.so`库文件链接，如下所示。
+
+```
+# Set MindSpore Lite Dependencies.
+include_directories(${CMAKE_SOURCE_DIR}/src/main/cpp/include/MindSpore)
+add_library(mindspore-lite SHARED IMPORTED )
+set_target_properties(mindspore-lite PROPERTIES
+    IMPORTED_LOCATION "${CMAKE_SOURCE_DIR}/libs/libmindspore-lite.so")
+
+# Set OpenCV Dependecies.
+include_directories(${CMAKE_SOURCE_DIR}/opencv/sdk/native/jni/include)
+add_library(lib-opencv SHARED IMPORTED )
+set_target_properties(lib-opencv PROPERTIES
+    IMPORTED_LOCATION "${CMAKE_SOURCE_DIR}/libs/libopencv_java4.so")
+
+# Link target library.
+target_link_libraries(
+    ...
+    mindspore-lite
+    lib-opencv
+    ...
+)
+```
+
+### 下载及部署模型文件
+
+从MindSpore Model Hub中下载模型文件，本示例程序中使用的终端图像分类模型文件为`mobilenetv2.ms`，同样通过download.gradle脚本在APP构建时自动下载，并放置在`app/src/main/assets`工程目录下。
+
+* 注：若下载失败请手动下载模型文件，mobilenetv2.ms [下载链接](https://download.mindspore.cn/model_zoo/official/lite/mobilenetv2_openimage_lite/mobilenetv2.ms)。
+
+
+### 编写端侧推理代码
+
+在JNI层调用MindSpore Lite C++ API实现端测推理。
+
+推理代码流程如下，完整代码请参见`src/cpp/MindSporeNetnative.cpp`。
+
+1. 加载MindSpore Lite模型文件，构建上下文、会话以及用于推理的计算图。
+
+    - 加载模型文件：创建并配置用于模型推理的上下文
+        ```cpp
+        // Buffer is the model data passed in by the Java layer
+        jlong bufferLen = env->GetDirectBufferCapacity(buffer);
+        char *modelBuffer = CreateLocalModelBuffer(env, buffer);
+        ```
+
+    - 创建会话
+        ```cpp
+        void **labelEnv = new void *;
+        MSNetWork *labelNet = new MSNetWork;
+        *labelEnv = labelNet;
+
+        // Create context.
+        lite::Context *context = new lite::Context;
+        context->thread_num_ = numThread;  //Specify the number of threads to run inference
+
+        // Create the mindspore session.
+        labelNet->CreateSessionMS(modelBuffer, bufferLen, context);
+        delete(context);
+
+        ```
+
+    - 加载模型文件并构建用于推理的计算图
+        ```cpp
+        void MSNetWork::CreateSessionMS(char* modelBuffer, size_t bufferLen, mindspore::lite::Context* ctx)
+        {
+            CreateSession(modelBuffer, bufferLen, ctx);
+            session = mindspore::session::LiteSession::CreateSession(ctx);
+            auto model = mindspore::lite::Model::Import(modelBuffer, bufferLen);
+            int ret = session->CompileGraph(model); // Compile Graph
+        }
+        ```
+
+2. 将输入图片转换为传入MindSpore模型的Tensor格式。
+
+    将待检测图片数据转换为输入MindSpore模型的Tensor。
+
+    ```cpp
+    // Convert the Bitmap image passed in from the JAVA layer to Mat for OpenCV processing
+    BitmapToMat(env, srcBitmap, matImageSrc);
+   // Processing such as zooming the picture size.
+    matImgPreprocessed = PreProcessImageData(matImageSrc);
+
+    ImgDims inputDims;
+    inputDims.channel = matImgPreprocessed.channels();
+    inputDims.width = matImgPreprocessed.cols;
+    inputDims.height = matImgPreprocessed.rows;
+    float *dataHWC = new float[inputDims.channel * inputDims.width * inputDims.height]
+
+    // Copy the image data to be detected to the dataHWC array.
+    // The dataHWC[image_size] array here is the intermediate variable of the input MindSpore model tensor.
+    float *ptrTmp = reinterpret_cast<float *>(matImgPreprocessed.data);
+    for(int i = 0; i < inputDims.channel * inputDims.width * inputDims.height; i++){
+       dataHWC[i] = ptrTmp[i];
+    }
+
+    // Assign dataHWC[image_size] to the input tensor variable.
+    auto msInputs = mSession->GetInputs();
+    auto inTensor = msInputs.front();
+    memcpy(inTensor->MutableData(), dataHWC,
+        inputDims.channel * inputDims.width * inputDims.height * sizeof(float));
+    delete[] (dataHWC);
+    ```
+
+3. 对输入Tensor按照模型进行推理，获取输出Tensor，并进行后处理。
+
+   - 图执行，端测推理。
+
+        ```cpp
+        // After the model and image tensor data is loaded, run inference.
+        auto status = mSession->RunGraph();
+        ```
+
+   - 获取输出数据。
+        ```cpp
+        // Get the mindspore inference results.
+        auto msOutputs = mSession->GetOutputMapByNode();
+        std::string retStr = ProcessRunnetResult(msOutputs);
+        ```
+
+   - 输出数据的后续处理。
+        ```cpp
+        std::string ProcessRunnetResult(
+                std::unordered_map<std::string, std::vector<mindspore::tensor::MSTensor *>> msOutputs){
+
+            // Get the branch of the model output.
+            // Use iterators to get map elements.
+            std::unordered_map<std::string, std::vector<mindspore::tensor::MSTensor *>>::iterator iter;
+            iter = msOutputs.begin();
+
+            // The mobilenetv2.ms model output just one branch.
+            auto outputString = iter->first;
+            auto outputTensor = iter->second;
+
+            float *temp_scores = static_cast<float * >(branch1_tensor[0]->MutableData());
+
+            float scores[RET_CATEGORY_SUM];
+            for (int i = 0; i < RET_CATEGORY_SUM; ++i) {
+                if (temp_scores[i] > 0.5){
+                    MS_PRINT("MindSpore scores[%d] : [%f]",  i, temp_scores[i]);
+                }
+                scores[i] = temp_scores[i];
+            }
+
+            // Converted to text information that needs to be displayed in the APP.
+            std::string categoryScore = "";
+                for (int i = 0; i < RET_CATEGORY_SUM; ++i) {
+                    categoryScore += g_labels_name_map[i];
+                    categoryScore += ":";
+                    std::string score_str = std::to_string(scores[i]);
+                    categoryScore += score_str;
+                    categoryScore += ";";
+                }
+                return categoryScore;
+        }
+        ```

model_zoo/official/lite/image_classification/app/.gitignore

@@ -0,0 +1 @@
+/build

model_zoo/official/lite/image_classification/app/CMakeLists.txt

@@ -0,0 +1,94 @@
+# For more information about using CMake with Android Studio, read the
+# documentation: https://d.android.com/studio/projects/add-native-code.html
+
+# Sets the minimum version of CMake required to build the native library.
+
+cmake_minimum_required(VERSION 3.4.1)
+
+set(CMAKE_VERBOSE_MAKEFILE on)
+set(libs  ${CMAKE_SOURCE_DIR}/libs)
+
+
+set(CMAKE_LIBRARY_OUTPUT_DIRECTORY  ${CMAKE_SOURCE_DIR}/libs/${ANDROID_ABI})
+
+
+# ============== Set MindSpore Dependencies. =============
+include_directories(${CMAKE_SOURCE_DIR}/src/main/cpp/include)
+include_directories(${CMAKE_SOURCE_DIR}/src/main/cpp/include/MindSpore)
+include_directories(${CMAKE_SOURCE_DIR}/src/main/cpp/include/MindSpore/flatbuffers)
+include_directories(${CMAKE_SOURCE_DIR}/src/main/cpp/include/MindSpore/ir/dtype)
+include_directories(${CMAKE_SOURCE_DIR}/src/main/cpp/include/MindSpore/schema)
+
+add_library(mindspore-lite SHARED IMPORTED )
+
+set_target_properties(mindspore-lite PROPERTIES IMPORTED_LOCATION
+        ${CMAKE_SOURCE_DIR}/libs/${ANDROID_ABI}/libmindspore-lite.so)
+# --------------- MindSpore Lite set End. --------------------
+
+
+
+# =============== Set OpenCV Dependencies ===================
+
+include_directories(${CMAKE_SOURCE_DIR}/opencv/sdk/native/jni/include/)
+
+add_library(lib-opencv SHARED IMPORTED )
+
+set_target_properties(lib-opencv PROPERTIES IMPORTED_LOCATION
+        ${CMAKE_SOURCE_DIR}/libs/${ANDROID_ABI}/libopencv_java4.so)
+
+# --------------- OpenCV set End. ---------------------------
+
+
+# Creates and names a library, sets it as either STATIC
+# or SHARED, and provides the relative paths to its source code.
+# You can define multiple libraries, and CMake builds them for you.
+# Gradle automatically packages shared libraries with your APK.
+
+file(GLOB_RECURSE cpp_src "src/main/cpp/*.cpp"  "src/main/cpp/*.h")
+
+add_library( # Sets the name of the library.
+        mlkit-label-MS
+
+        # Sets the library as a shared library.
+        SHARED
+
+        # Provides a relative path to your source file(s).
+        ${cpp_src})
+
+
+# Searches for a specified prebuilt library and stores the path as a
+# variable. Because CMake includes system libraries in the search path by
+# default, you only need to specify the name of the public NDK library
+# you want to add. CMake verifies that the library exists before
+# completing its build.
+
+find_library( # Sets the name of the path variable.
+        log-lib
+
+        # Specifies the name of the NDK library that
+        # you want CMake to locate.
+        log )
+
+
+find_library( jnigraphics-lib jnig·raphics )
+
+# Specifies libraries CMake should link to your target library. You
+# can link multiple libraries, such as libraries you define in this
+# build script, prebuilt third-party libraries, or system libraries.
+add_definitions(-DMNN_USE_LOGCAT)
+target_link_libraries( # Specifies the target library.
+        mlkit-label-MS
+
+        # --- opencv ---
+        lib-opencv
+
+        # --- mindspore ---
+        mindspore-lite
+
+        # --- other dependencies.---
+        -ljnigraphics
+        android
+
+        # Links the target library to the log library
+        ${log-lib}
+        )

model_zoo/official/lite/image_classification/app/build.gradle

@@ -0,0 +1,84 @@
+apply plugin: 'com.android.application'
+
+android {
+    compileSdkVersion 30
+    buildToolsVersion "30.0.1"
+
+    defaultConfig {
+        applicationId "com.mindspore.himindsporedemo"
+        minSdkVersion 21
+        targetSdkVersion 30
+        versionCode 1
+        versionName "1.0"
+
+        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
+        externalNativeBuild {
+            cmake {
+                arguments "-DANDROID_STL=c++_shared"
+                cppFlags ""
+            }
+        }
+        ndk {
+            abiFilters 'arm64-v8a'
+        }
+    }
+    aaptOptions {
+        noCompress '.so', 'ms'
+    }
+
+    buildTypes {
+        release {
+            minifyEnabled false
+            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
+        }
+
+        customDebugType {
+            debuggable true
+        }
+    }
+    externalNativeBuild {
+        cmake {
+            path file('CMakeLists.txt')
+        }
+    }
+    ndkVersion '21.3.6528147'
+
+    sourceSets{
+        main {
+            jniLibs.srcDirs = ['libs']
+        }
+    }
+    packagingOptions{
+        pickFirst 'lib/arm64-v8a/libopencv_java4.so'
+        pickFirst 'lib/arm64-v8a/libmindspore-lite.so'
+        pickFirst 'lib/arm64-v8a/libmlkit-label-MS.so'
+    }
+
+}
+
+
+
+// Before gradle build.
+// To download some necessary libraries.
+apply from:'download.gradle'
+/*if (!file("libs/arm64-v8a/libmindspore-lite.so").exists() ||
+        !file("libs/arm64-v8a/libopencv_java4.so").exists()){
+    apply from:'download.gradle'
+}*/
+
+
+
+dependencies {
+    implementation fileTree(dir: "libs", include: ["*.jar"])
+    implementation 'androidx.appcompat:appcompat:1.1.0'
+    implementation 'androidx.constraintlayout:constraintlayout:1.1.3'
+//    implementation project(path: ':sdk')
+
+    testImplementation 'junit:junit:4.12'
+    androidTestImplementation 'androidx.test.ext:junit:1.1.1'
+    androidTestImplementation 'androidx.test.espresso:espresso-core:3.2.0'
+
+    implementation 'com.google.android.material:material:1.0.0'
+    androidTestImplementation 'com.android.support.test:rules:1.0.2'
+    androidTestImplementation 'com.google.truth:truth:1.0.1'
+}

model_zoo/official/lite/image_classification/app/download.gradle

@@ -0,0 +1,139 @@
+/**
+ * To download necessary library from HuaWei server.
+ * Including mindspore-lite .so file, opencv .so file and model file.
+ * The libraries can be downloaded manually.
+ */
+
+def targetopenCVInclude = "src/main/cpp/include"
+def targetMindSporeInclude = "src/main/cpp/include"
+
+
+def targetModelFile = "src/main/assets/model/mobilenetv2.ms"
+def openCVLibrary_arm64 = "libs/arm64-v8a/libopencv_java4.so"
+def mindSporeLibrary_arm64 = "libs/arm64-v8a/libmindspore-lite.so"
+def openCVlibIncluding_arm64 = "src/main/cpp/include/opencv2/include.zip"
+def mindSporeLibIncluding_arm64 = "src/main/cpp/include/MindSpore/include.zip"
+
+def modelDownloadUrl = "https://download.mindspore.cn/model_zoo/official/lite/mobilenetv2_openimage_lite/mobilenetv2.ms"
+def opencvDownloadUrl = "https://download.mindspore.cn/model_zoo/official/lite/lib/opencv%204.4.0/libopencv_java4.so"
+def mindsporeLiteDownloadUrl = "https://download.mindspore.cn/model_zoo/official/lite/lib/mindspore%20version%200.7/libmindspore-lite.so"
+def opencvincludeDownloadUrl = "https://download.mindspore.cn/model_zoo/official/lite/lib/opencv%204.4.0/include.zip"
+def mindsporeIncludeDownloadUrl = "https://download.mindspore.cn/model_zoo/official/lite/lib/mindspore%20version%200.7/include.zip"
+
+def cleantargetopenCVInclude = "src/main/cpp/include/opencv2"
+def cleantargetMindSporeInclude = "src/main/cpp/include/MindSpore"
+
+
+task downloadModelFile(type: DownloadUrlTask) {
+    doFirst {
+        println "Downloading ${modelDownloadUrl}"
+    }
+    sourceUrl = "${modelDownloadUrl}"
+    target = file("${targetModelFile}")
+}
+
+
+task downloadOpenCVLibrary(type: DownloadUrlTask) {
+    doFirst {
+        println "Downloading ${opencvDownloadUrl}"
+    }
+    sourceUrl = "${opencvDownloadUrl}"
+    target = file("${openCVLibrary_arm64}")
+}
+
+task downloadMindSporeLibrary(type: DownloadUrlTask) {
+    doFirst {
+        println "Downloading ${mindsporeLiteDownloadUrl}"
+    }
+    sourceUrl = "${mindsporeLiteDownloadUrl}"
+    target = file("${mindSporeLibrary_arm64}")
+}
+
+task downloadopecvIncludeLibrary(type: DownloadUrlTask) {
+    doFirst {
+        println "Downloading ${opencvincludeDownloadUrl}"
+    }
+    sourceUrl = "${opencvincludeDownloadUrl}"
+    target = file("${openCVlibIncluding_arm64}")
+}
+
+task downloadMindSporeIncludeLibrary(type: DownloadUrlTask) {
+    doFirst {
+        println "Downloading ${mindsporeIncludeDownloadUrl}"
+    }
+    sourceUrl = "${mindsporeIncludeDownloadUrl}"
+    target = file("${mindSporeLibIncluding_arm64}")
+}
+
+task unzipopencvInclude(type: Copy, dependsOn: 'downloadopecvIncludeLibrary') {
+    doFirst {
+        println "Unzipping ${openCVlibIncluding_arm64}"
+    }
+    from zipTree("${openCVlibIncluding_arm64}")
+    into "${targetopenCVInclude}"
+}
+
+task unzipMindSporeInclude(type: Copy, dependsOn: 'downloadMindSporeIncludeLibrary') {
+    doFirst {
+        println "Unzipping ${mindSporeLibIncluding_arm64}"
+    }
+    from zipTree("${mindSporeLibIncluding_arm64}")
+    into "${targetMindSporeInclude}"
+}
+
+task cleanUnusedopencvFiles(type: Delete, dependsOn: ['unzipopencvInclude']) {
+    delete fileTree("${cleantargetopenCVInclude}").matching {
+        include "*.zip"
+    }
+}
+task cleanUnusedmindsporeFiles(type: Delete, dependsOn: ['unzipMindSporeInclude']) {
+    delete fileTree("${cleantargetMindSporeInclude}").matching {
+        include "*.zip"
+    }
+}
+/*
+ * Using preBuild to download mindspore library, opencv library and model file.
+ * Run before gradle build.
+ */
+if (file("libs/arm64-v8a/libmindspore-lite.so").exists()){
+    downloadMindSporeLibrary.enabled = false
+}
+
+if (file("libs/arm64-v8a/libopencv_java4.so").exists()){
+    downloadOpenCVLibrary.enabled = false
+}
+if (file("src/main/assets/model/mobilenetv2.ms").exists()){
+    downloadModelFile.enabled = false
+}
+
+if (file("src/main/cpp/include/MindSpore/lite_session.h").exists()){
+    downloadMindSporeIncludeLibrary.enabled = false
+    unzipopencvInclude.enabled = false
+    cleanUnusedopencvFiles.enabled =false
+}
+if (file("src/main/cpp/include/opencv2/core.hpp").exists()){
+    downloadopecvIncludeLibrary.enabled = false
+    unzipMindSporeInclude.enabled = false
+    cleanUnusedmindsporeFiles.enabled =false
+}
+
+preBuild.dependsOn downloadMindSporeLibrary
+preBuild.dependsOn downloadOpenCVLibrary
+preBuild.dependsOn downloadModelFile
+preBuild.dependsOn unzipopencvInclude
+preBuild.dependsOn unzipMindSporeInclude
+preBuild.dependsOn cleanUnusedopencvFiles
+preBuild.dependsOn cleanUnusedmindsporeFiles
+
+class DownloadUrlTask extends DefaultTask {
+    @Input
+    String sourceUrl
+
+    @OutputFile
+    File target
+
+    @TaskAction
+    void download() {
+        ant.get(src: sourceUrl, dest: target)
+    }
+}

model_zoo/official/lite/image_classification/app/proguard-rules.pro

@@ -0,0 +1,21 @@
+# Add project specific ProGuard rules here.
+# You can control the set of applied configuration files using the
+# proguardFiles setting in build.gradle.
+#
+# For more details, see
+#   http://developer.android.com/guide/developing/tools/proguard.html
+
+# If your project uses WebView with JS, uncomment the following
+# and specify the fully qualified class name to the JavaScript interface
+# class:
+#-keepclassmembers class fqcn.of.javascript.interface.for.webview {
+#   public *;
+#}
+
+# Uncomment this to preserve the line number information for
+# debugging stack traces.
+#-keepattributes SourceFile,LineNumberTable
+
+# If you keep the line number information, uncomment this to
+# hide the original source file name.
+#-renamesourcefileattribute SourceFile

model_zoo/official/lite/image_classification/app/src/androidTest/java/com/mindspore/himindsporedemo/ExampleInstrumentedTest.java

@@ -0,0 +1,42 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package com.mindspore.himindsporedemo;
+
+import android.content.Context;
+
+import androidx.test.platform.app.InstrumentationRegistry;
+import androidx.test.ext.junit.runners.AndroidJUnit4;
+
+import org.junit.Test;
+import org.junit.runner.RunWith;
+
+import static org.junit.Assert.*;
+
+/**
+ * Instrumented test, which will execute on an Android device.
+ *
+ * @see <a href="http://d.android.com/tools/testing">Testing documentation</a>
+ */
+@RunWith(AndroidJUnit4.class)
+public class ExampleInstrumentedTest {
+    @Test
+    public void useAppContext() {
+        // Context of the app under test.
+        Context appContext = InstrumentationRegistry.getInstrumentation().getTargetContext();
+        assertEquals("com.mindspore.himindsporedemo", appContext.getPackageName());
+    }
+}

model_zoo/official/lite/image_classification/app/src/main/AndroidManifest.xml

@@ -0,0 +1,32 @@
+<?xml version="1.0" encoding="utf-8"?>
+<manifest xmlns:android="http://schemas.android.com/apk/res/android"
+    package="com.mindspore.himindsporedemo"
+    android:versionCode="1"
+    android:versionName="1.0">
+
+    <uses-permission android:name="android.permission.CAMERA" />
+    <uses-permission android:name="android.permission.WRITE_INTERNAL_STORAGE" />
+    <uses-permission android:name="android.permission.READ_INTERNAL_STORAGE" />
+    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
+    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
+    <uses-permission android:name="android.permission.MOUNT_UNMOUNT_FILESYSTEM" />
+    <uses-permission android:name="android.permission.READ_PHONE_STATE" />
+
+    <application
+        android:allowBackup="true"
+        android:icon="@mipmap/ic_launcher"
+        android:label="@string/app_name"
+        android:roundIcon="@mipmap/ic_launcher_round"
+        android:supportsRtl="true"
+        android:theme="@style/AppTheme">
+        <activity
+            android:name=".widget.CameraActivity"
+            android:screenOrientation="portrait">
+            <intent-filter>
+                <action android:name="android.intent.action.MAIN" />
+                <category android:name="android.intent.category.LAUNCHER" />
+            </intent-filter>
+        </activity>
+    </application>
+
+</manifest>

model_zoo/official/lite/image_classification/app/src/main/cpp/MSNetWork.cpp

@@ -0,0 +1,152 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+#include "MSNetWork.h"
+#include <android/log.h>
+#include <iostream>
+#include <string>
+#include "include/MindSpore/errorcode.h"
+
+#define MS_PRINT(format, ...) __android_log_print(ANDROID_LOG_INFO, "MSJNI", format, ##__VA_ARGS__)
+
+MSNetWork::MSNetWork(void) : session(nullptr), model(nullptr) {}
+
+MSNetWork::~MSNetWork(void) {}
+
+void
+MSNetWork::CreateSessionMS(char *modelBuffer, size_t bufferLen, mindspore::lite::Context *ctx) {
+  session = mindspore::session::LiteSession::CreateSession(ctx);
+  if (session == nullptr) {
+    MS_PRINT("Create Session failed.");
+    return;
+  }
+
+  // Compile model.
+  auto model = mindspore::lite::Model::Import(modelBuffer, bufferLen);
+  if (model == nullptr) {
+    MS_PRINT("Import model failed.");
+    return;
+  }
+
+  int ret = session->CompileGraph(model);
+  if (ret != mindspore::lite::RET_OK) {
+    MS_PRINT("CompileGraph failed.");
+    return;
+  }
+}
+
+int MSNetWork::ReleaseNets(void) {
+  delete session;
+//    delete model;
+  return 0;
+}
+
+const char *MSNetWork::labels_name_map[MSNetWork::RET_CATEGORY_SUM] = {
+    {"Tortoise"}, {"Container"}, {"Magpie"}, {"Seaturtle"}, {"Football"}, {"Ambulance"}, {"Ladder"},
+    {"Toothbrush"}, {"Syringe"}, {"Sink"}, {"Toy"}, {"Organ(MusicalInstrument) "}, {"Cassettedeck"},
+    {"Apple"}, {"Humaneye"}, {"Cosmetics"}, {"Paddle"}, {"Snowman"}, {"Beer"}, {"Chopsticks"},
+    {"Humanbeard"}, {"Bird"}, {"Parkingmeter"}, {"Trafficlight"}, {"Croissant"}, {"Cucumber"},
+    {"Radish"}, {"Towel"}, {"Doll"}, {"Skull"}, {"Washingmachine"}, {"Glove"}, {"Tick"}, {"Belt"},
+    {"Sunglasses"}, {"Banjo"}, {"Cart"}, {"Ball"}, {"Backpack"}, {"Bicycle"}, {"Homeappliance"},
+    {"Centipede"}, {"Boat"}, {"Surfboard"}, {"Boot"}, {"Headphones"}, {"Hotdog"}, {"Shorts"},
+    {"Fastfood"}, {"Bus"}, {"Boy "}, {"Screwdriver"}, {"Bicyclewheel"}, {"Barge"}, {"Laptop"},
+    {"Miniskirt"}, {"Drill(Tool)"}, {"Dress"}, {"Bear"}, {"Waffle"}, {"Pancake"}, {"Brownbear"},
+    {"Woodpecker"}, {"Bluejay"}, {"Pretzel"}, {"Bagel"}, {"Tower"}, {"Teapot"}, {"Person"},
+    {"Bowandarrow"}, {"Swimwear"}, {"Beehive"}, {"Brassiere"}, {"Bee"}, {"Bat(Animal)"},
+    {"Starfish"}, {"Popcorn"}, {"Burrito"}, {"Chainsaw"}, {"Balloon"}, {"Wrench"}, {"Tent"},
+    {"Vehicleregistrationplate"}, {"Lantern"}, {"Toaster"}, {"Flashlight"}, {"Billboard"},
+    {"Tiara"}, {"Limousine"}, {"Necklace"}, {"Carnivore"}, {"Scissors"}, {"Stairs"},
+    {"Computerkeyboard"}, {"Printer"}, {"Trafficsign"}, {"Chair"}, {"Shirt"}, {"Poster"},
+    {"Cheese"}, {"Sock"}, {"Firehydrant"}, {"Landvehicle"}, {"Earrings"}, {"Tie"}, {"Watercraft"},
+    {"Cabinetry"}, {"Suitcase"}, {"Muffin"}, {"Bidet"}, {"Snack"}, {"Snowmobile"}, {"Clock"},
+    {"Medicalequipment"}, {"Cattle"}, {"Cello"}, {"Jetski"}, {"Camel"}, {"Coat"}, {"Suit"},
+    {"Desk"}, {"Cat"}, {"Bronzesculpture"}, {"Juice"}, {"Gondola"}, {"Beetle"}, {"Cannon"},
+    {"Computermouse"}, {"Cookie"}, {"Officebuilding"}, {"Fountain"}, {"Coin"}, {"Calculator"},
+    {"Cocktail"}, {"Computermonitor"}, {"Box"}, {"Stapler"}, {"Christmastree"}, {"Cowboyhat"},
+    {"Hikingequipment"}, {"Studiocouch"}, {"Drum"}, {"Dessert"}, {"Winerack"}, {"Drink"},
+    {"Zucchini"}, {"Ladle"}, {"Humanmouth"}, {"DairyProduct"}, {"Dice"}, {"Oven"}, {"Dinosaur"},
+    {"Ratchet(Device)"}, {"Couch"}, {"Cricketball"}, {"Wintermelon"}, {"Spatula"}, {"Whiteboard"},
+    {"Pencilsharpener"}, {"Door"}, {"Hat"}, {"Shower"}, {"Eraser"}, {"Fedora"}, {"Guacamole"},
+    {"Dagger"}, {"Scarf"}, {"Dolphin"}, {"Sombrero"}, {"Tincan"}, {"Mug"}, {"Tap"}, {"Harborseal"},
+    {"Stretcher"}, {"Canopener"}, {"Goggles"}, {"Humanbody"}, {"Rollerskates"}, {"Coffeecup"},
+    {"Cuttingboard"}, {"Blender"}, {"Plumbingfixture"}, {"Stopsign"}, {"Officesupplies"},
+    {"Volleyball(Ball)"}, {"Vase"}, {"Slowcooker"}, {"Wardrobe"}, {"Coffee"}, {"Whisk"},
+    {"Papertowel"}, {"Personalcare"}, {"Food"}, {"Sunhat"}, {"Treehouse"}, {"Flyingdisc"},
+    {"Skirt"}, {"Gasstove"}, {"Saltandpeppershakers"}, {"Mechanicalfan"}, {"Facepowder"}, {"Fax"},
+    {"Fruit"}, {"Frenchfries"}, {"Nightstand"}, {"Barrel"}, {"Kite"}, {"Tart"}, {"Treadmill"},
+    {"Fox"}, {"Flag"}, {"Frenchhorn"}, {"Windowblind"}, {"Humanfoot"}, {"Golfcart"}, {"Jacket"},
+    {"Egg(Food)"}, {"Streetlight"}, {"Guitar"}, {"Pillow"}, {"Humanleg"}, {"Isopod"}, {"Grape"},
+    {"Humanear"}, {"Powerplugsandsockets"}, {"Panda"}, {"Giraffe"}, {"Woman"}, {"Doorhandle"},
+    {"Rhinoceros"}, {"Bathtub"}, {"Goldfish"}, {"Houseplant"}, {"Goat"}, {"Baseballbat"},
+    {"Baseballglove"}, {"Mixingbowl"}, {"Marineinvertebrates"}, {"Kitchenutensil"}, {"Lightswitch"},
+    {"House"}, {"Horse"}, {"Stationarybicycle"}, {"Hammer"}, {"Ceilingfan"}, {"Sofabed"},
+    {"Adhesivetape "}, {"Harp"}, {"Sandal"}, {"Bicyclehelmet"}, {"Saucer"}, {"Harpsichord"},
+    {"Humanhair"}, {"Heater"}, {"Harmonica"}, {"Hamster"}, {"Curtain"}, {"Bed"}, {"Kettle"},
+    {"Fireplace"}, {"Scale"}, {"Drinkingstraw"}, {"Insect"}, {"Hairdryer"}, {"Kitchenware"},
+    {"Indoorrower"}, {"Invertebrate"}, {"Foodprocessor"}, {"Bookcase"}, {"Refrigerator"},
+    {"Wood-burningstove"}, {"Punchingbag"}, {"Commonfig"}, {"Cocktailshaker"}, {"Jaguar(Animal)"},
+    {"Golfball"}, {"Fashionaccessory"}, {"Alarmclock"}, {"Filingcabinet"}, {"Artichoke"}, {"Table"},
+    {"Tableware"}, {"Kangaroo"}, {"Koala"}, {"Knife"}, {"Bottle"}, {"Bottleopener"}, {"Lynx"},
+    {"Lavender(Plant)"}, {"Lighthouse"}, {"Dumbbell"}, {"Humanhead"}, {"Bowl"}, {"Humidifier"},
+    {"Porch"}, {"Lizard"}, {"Billiardtable"}, {"Mammal"}, {"Mouse"}, {"Motorcycle"},
+    {"Musicalinstrument"}, {"Swimcap"}, {"Fryingpan"}, {"Snowplow"}, {"Bathroomcabinet"},
+    {"Missile"}, {"Bust"}, {"Man"}, {"Waffleiron"}, {"Milk"}, {"Ringbinder"}, {"Plate"},
+    {"Mobilephone"}, {"Bakedgoods"}, {"Mushroom"}, {"Crutch"}, {"Pitcher(Container)"}, {"Mirror"},
+    {"Personalflotationdevice"}, {"Tabletennisracket"}, {"Pencilcase"}, {"Musicalkeyboard"},
+    {"Scoreboard"}, {"Briefcase"}, {"Kitchenknife"}, {"Nail(Construction)"}, {"Tennisball"},
+    {"Plasticbag"}, {"Oboe"}, {"Chestofdrawers"}, {"Ostrich"}, {"Piano"}, {"Girl"}, {"Plant"},
+    {"Potato"}, {"Hairspray"}, {"Sportsequipment"}, {"Pasta"}, {"Penguin"}, {"Pumpkin"}, {"Pear"},
+    {"Infantbed"}, {"Polarbear"}, {"Mixer"}, {"Cupboard"}, {"Jacuzzi"}, {"Pizza"}, {"Digitalclock"},
+    {"Pig"}, {"Reptile"}, {"Rifle"}, {"Lipstick"}, {"Skateboard"}, {"Raven"}, {"Highheels"},
+    {"Redpanda"}, {"Rose"}, {"Rabbit"}, {"Sculpture"}, {"Saxophone"}, {"Shotgun"}, {"Seafood"},
+    {"Submarinesandwich"}, {"Snowboard"}, {"Sword"}, {"Pictureframe"}, {"Sushi"}, {"Loveseat"},
+    {"Ski"}, {"Squirrel"}, {"Tripod"}, {"Stethoscope"}, {"Submarine"}, {"Scorpion"}, {"Segway"},
+    {"Trainingbench"}, {"Snake"}, {"Coffeetable"}, {"Skyscraper"}, {"Sheep"}, {"Television"},
+    {"Trombone"}, {"Tea"}, {"Tank"}, {"Taco"}, {"Telephone"}, {"Torch"}, {"Tiger"}, {"Strawberry"},
+    {"Trumpet"}, {"Tree"}, {"Tomato"}, {"Train"}, {"Tool"}, {"Picnicbasket"}, {"Cookingspray"},
+    {"Trousers"}, {"Bowlingequipment"}, {"Footballhelmet"}, {"Truck"}, {"Measuringcup"},
+    {"Coffeemaker"}, {"Violin"}, {"Vehicle"}, {"Handbag"}, {"Papercutter"}, {"Wine"}, {"Weapon"},
+    {"Wheel"}, {"Worm"}, {"Wok"}, {"Whale"}, {"Zebra"}, {"Autopart"}, {"Jug"}, {"Pizzacutter"},
+    {"Cream"}, {"Monkey"}, {"Lion"}, {"Bread"}, {"Platter"}, {"Chicken"}, {"Eagle"}, {"Helicopter"},
+    {"Owl"}, {"Duck"}, {"Turtle"}, {"Hippopotamus"}, {"Crocodile"}, {"Toilet"}, {"Toiletpaper"},
+    {"Squid"}, {"Clothing"}, {"Footwear"}, {"Lemon"}, {"Spider"}, {"Deer"}, {"Frog"}, {"Banana"},
+    {"Rocket"}, {"Wineglass"}, {"Countertop"}, {"Tabletcomputer"}, {"Wastecontainer"},
+    {"Swimmingpool"}, {"Dog"}, {"Book"}, {"Elephant"}, {"Shark"}, {"Candle"}, {"Leopard"}, {"Axe"},
+    {"Handdryer"}, {"Soapdispenser"}, {"Porcupine"}, {"Flower"}, {"Canary"}, {"Cheetah"},
+    {"Palmtree"}, {"Hamburger"}, {"Maple"}, {"Building"}, {"Fish"}, {"Lobster"},
+    {"GardenAsparagus"}, {"Furniture"}, {"Hedgehog"}, {"Airplane"}, {"Spoon"}, {"Otter"}, {"Bull"},
+    {"Oyster"}, {"Horizontalbar"}, {"Conveniencestore"}, {"Bomb"}, {"Bench"}, {"Icecream"},
+    {"Caterpillar"}, {"Butterfly"}, {"Parachute"}, {"Orange"}, {"Antelope"}, {"Beaker"},
+    {"Mothsandbutterflies"}, {"Window"}, {"Closet"}, {"Castle"}, {"Jellyfish"}, {"Goose"}, {"Mule"},
+    {"Swan"}, {"Peach"}, {"Coconut"}, {"Seatbelt"}, {"Raccoon"}, {"Chisel"}, {"Fork"}, {"Lamp"},
+    {"Camera"}, {"Squash(Plant)"}, {"Racket"}, {"Humanface"}, {"Humanarm"}, {"Vegetable"},
+    {"Diaper"}, {"Unicycle"}, {"Falcon"}, {"Chime"}, {"Snail"}, {"Shellfish"}, {"Cabbage"},
+    {"Carrot"}, {"Mango"}, {"Jeans"}, {"Flowerpot"}, {"Pineapple"}, {"Drawer"}, {"Stool"},
+    {"Envelope"}, {"Cake"}, {"Dragonfly"}, {"Commonsunflower"}, {"Microwaveoven"}, {"Honeycomb"},
+    {"Marinemammal"}, {"Sealion"}, {"Ladybug"}, {"Shelf"}, {"Watch"}, {"Candy"}, {"Salad"},
+    {"Parrot"}, {"Handgun"}, {"Sparrow"}, {"Van"}, {"Grinder"}, {"Spicerack"}, {"Lightbulb"},
+    {"Cordedphone"}, {"Sportsuniform"}, {"Tennisracket"}, {"Wallclock"}, {"Servingtray"},
+    {"Kitchen&diningroomtable"}, {"Dogbed"}, {"Cakestand"}, {"Catfurniture"}, {"Bathroomaccessory"},
+    {"Facialtissueholder"}, {"Pressurecooker"}, {"Kitchenappliance"}, {"Tire"}, {"Ruler"},
+    {"Luggageandbags"}, {"Microphone"}, {"Broccoli"}, {"Umbrella"}, {"Pastry"}, {"Grapefruit"},
+    {"Band-aid"}, {"Animal"}, {"Bellpepper"}, {"Turkey"}, {"Lily"}, {"Pomegranate"}, {"Doughnut"},
+    {"Glasses"}, {"Humannose"}, {"Pen"}, {"Ant"}, {"Car"}, {"Aircraft"}, {"Humanhand"}, {"Skunk"},
+    {"Teddybear"}, {"Watermelon"}, {"Cantaloupe"}, {"Dishwasher"}, {"Flute"}, {"Balancebeam"},
+    {"Sandwich"}, {"Shrimp"}, {"Sewingmachine"}, {"Binoculars"}, {"Raysandskates"}, {"Ipod"},
+    {"Accordion"}, {"Willow"}, {"Crab"}, {"Crown"}, {"Seahorse"}, {"Perfume"}, {"Alpaca"}, {"Taxi"},
+    {"Canoe"}, {"Remotecontrol"}, {"Wheelchair"}, {"Rugbyball"}, {"Armadillo"}, {"Maracas"},
+    {"Helmet"}};
+

model_zoo/official/lite/image_classification/app/src/main/cpp/MSNetWork.h

@@ -0,0 +1,64 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+#ifndef MSNETWORK_H
+#define MSNETWORK_H
+
+#include <context.h>
+#include <lite_session.h>
+#include <model.h>
+#include <errorcode.h>
+#include <cstdio>
+#include <algorithm>
+#include <fstream>
+#include <functional>
+#include <sstream>
+#include <vector>
+#include <map>
+#include <string>
+#include <memory>
+#include <utility>
+
+
+struct ImgDims {
+  int channel = 0;
+  int width = 0;
+  int height = 0;
+};
+
+/*struct SessIterm {
+    std::shared_ptr<mindspore::session::LiteSession> sess = nullptr;
+};*/
+
+
+
+class MSNetWork {
+ public:
+  MSNetWork();
+
+  ~MSNetWork();
+
+  void CreateSessionMS(char *modelBuffer, size_t bufferLen, mindspore::lite::Context *ctx);
+
+  int ReleaseNets(void);
+
+  mindspore::session::LiteSession *session;
+  mindspore::lite::Model *model;
+  static const int RET_CATEGORY_SUM = 601;
+  static const char *labels_name_map[RET_CATEGORY_SUM];
+};
+
+#endif

model_zoo/official/lite/image_classification/app/src/main/cpp/MindSporeNetnative.cpp

@@ -0,0 +1,303 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+#include <android/bitmap.h>
+#include <android/asset_manager_jni.h>
+#include <android/log.h>
+#include <MindSpore/errorcode.h>
+#include <MindSpore/ms_tensor.h>
+#include <jni.h>
+#include <cstring>
+#include <vector>
+#include <string>
+#include <unordered_map>
+#include <set>
+#include "MindSporeNetnative.h"
+#include "opencv2/core.hpp"
+#include "opencv2/imgproc.hpp"
+#include "MSNetWork.h"
+
+#define MS_PRINT(format, ...) __android_log_print(ANDROID_LOG_INFO, "MSJNI", format, ##__VA_ARGS__)
+
+void BitmapToMat2(JNIEnv *env, const jobject &bitmap, cv::Mat *mat,
+                  jboolean needUnPremultiplyAlpha) {
+  AndroidBitmapInfo info;
+  void *pixels = nullptr;
+  cv::Mat &dst = *mat;
+  CV_Assert(AndroidBitmap_getInfo(env, bitmap, &info) >= 0);
+  CV_Assert(info.format == ANDROID_BITMAP_FORMAT_RGBA_8888 ||
+      info.format == ANDROID_BITMAP_FORMAT_RGB_565);
+  CV_Assert(AndroidBitmap_lockPixels(env, bitmap, &pixels) >= 0);
+  CV_Assert(pixels);
+  dst.create(info.height, info.width, CV_8UC4);
+  if (info.format == ANDROID_BITMAP_FORMAT_RGBA_8888) {
+    cv::Mat tmp(info.height, info.width, CV_8UC4, pixels);
+    if (needUnPremultiplyAlpha) {
+      cvtColor(tmp, dst, cv::COLOR_RGBA2BGR);
+    } else {
+      tmp.copyTo(dst);
+    }
+  } else {
+    cv::Mat tmp(info.height, info.width, CV_8UC4, pixels);
+    cvtColor(tmp, dst, cv::COLOR_BGR5652RGBA);
+  }
+  AndroidBitmap_unlockPixels(env, bitmap);
+  return;
+}
+
+void BitmapToMat(JNIEnv *env, const jobject &bitmap, cv::Mat *mat) {
+  BitmapToMat2(env, bitmap, mat, true);
+}
+
+/**
+ * Processing image with resize and normalize.
+ */
+cv::Mat PreProcessImageData(cv::Mat input) {
+  cv::Mat imgFloatTmp, imgResized256, imgResized224;
+  int resizeWidth = 256;
+  int resizeHeight = 256;
+  float normalizMin = 1.0;
+  float normalizMax = 255.0;
+
+  cv::resize(input, imgFloatTmp, cv::Size(resizeWidth, resizeHeight));
+
+  imgFloatTmp.convertTo(imgResized256, CV_32FC3, normalizMin / normalizMax);
+
+  int offsetX = 16;
+  int offsetY = 16;
+  int cropWidth = 224;
+  int cropHeight = 224;
+
+  // Standardization processing.
+  float meanR = 0.485;
+  float meanG = 0.456;
+  float meanB = 0.406;
+  float varR = 0.229;
+  float varG = 0.224;
+  float varB = 0.225;
+
+  cv::Rect roi;
+  roi.x = offsetX;
+  roi.y = offsetY;
+  roi.width = cropWidth;
+  roi.height = cropHeight;
+
+  // The final image size of the incoming model is 224*224.
+  imgResized256(roi).copyTo(imgResized224);
+
+  cv::Scalar mean = cv::Scalar(meanR, meanG, meanB);
+  cv::Scalar var = cv::Scalar(varR, varG, varB);
+  cv::Mat imgResized1;
+  cv::Mat imgResized2;
+  cv::Mat imgMean(imgResized224.size(), CV_32FC3,
+                  mean);  // imgMean Each pixel channel is (0.485, 0.456, 0.406)
+  cv::Mat imgVar(imgResized224.size(), CV_32FC3,
+                 var);  // imgVar Each pixel channel is (0.229, 0.224, 0.225)
+  imgResized1 = imgResized224 - imgMean;
+  imgResized2 = imgResized1 / imgVar;
+  return imgResized2;
+}
+
+char *CreateLocalModelBuffer(JNIEnv *env, jobject modelBuffer) {
+  jbyte *modelAddr = static_cast<jbyte *>(env->GetDirectBufferAddress(modelBuffer));
+  int modelLen = static_cast<int>(env->GetDirectBufferCapacity(modelBuffer));
+  char *buffer(new char[modelLen]);
+  memcpy(buffer, modelAddr, modelLen);
+  return buffer;
+}
+
+/**
+ * To process the result of mindspore inference.
+ * @param msOutputs
+ * @return
+ */
+std::string
+ProcessRunnetResult(const int RET_CATEGORY_SUM, const char *const labels_name_map[],
+                    std::unordered_map<std::string,
+                                       std::vector<mindspore::tensor::MSTensor *>> msOutputs) {
+  // Get the branch of the model output.
+  // Use iterators to get map elements.
+  std::unordered_map<std::string, std::vector<mindspore::tensor::MSTensor *>>::iterator iter;
+  iter = msOutputs.begin();
+
+  // The mobilenetv2.ms model output just one branch.
+  auto outputTensor = iter->second;
+
+  int tensorNum = outputTensor[0]->ElementsNum();
+  MS_PRINT("Number of tensor elements:%d", tensorNum);
+
+  // Get a pointer to the first score.
+  float *temp_scores = static_cast<float * >(outputTensor[0]->MutableData());
+
+  float scores[RET_CATEGORY_SUM];
+  for (int i = 0; i < RET_CATEGORY_SUM; ++i) {
+    if (temp_scores[i] > 0.5) {
+      MS_PRINT("MindSpore scores[%d] : [%f]", i, temp_scores[i]);
+    }
+    scores[i] = temp_scores[i];
+  }
+
+  // Score for each category.
+  // Converted to text information that needs to be displayed in the APP.
+  std::string categoryScore = "";
+  for (int i = 0; i < RET_CATEGORY_SUM; ++i) {
+    categoryScore += labels_name_map[i];
+    categoryScore += ":";
+    std::string score_str = std::to_string(scores[i]);
+    categoryScore += score_str;
+    categoryScore += ";";
+  }
+  return categoryScore;
+}
+
+
+/**
+ * The Java layer reads the model into MappedByteBuffer or ByteBuffer to load the model.
+ */
+extern "C"
+JNIEXPORT jlong JNICALL
+Java_com_mindspore_himindsporedemo_gallery_classify_TrackingMobile_loadModel(JNIEnv *env,
+                                                                             jobject thiz,
+                                                                             jobject model_buffer,
+                                                                             jint num_thread) {
+  if (nullptr == model_buffer) {
+    MS_PRINT("error, buffer is nullptr!");
+    return (jlong) nullptr;
+  }
+  jlong bufferLen = env->GetDirectBufferCapacity(model_buffer);
+  if (0 == bufferLen) {
+    MS_PRINT("error, bufferLen is 0!");
+    return (jlong) nullptr;
+  }
+
+  char *modelBuffer = CreateLocalModelBuffer(env, model_buffer);
+  if (modelBuffer == nullptr) {
+    MS_PRINT("modelBuffer create failed!");
+    return (jlong) nullptr;
+  }
+
+  // To create a mindspore network inference environment.
+  void **labelEnv = new void *;
+  MSNetWork *labelNet = new MSNetWork;
+  *labelEnv = labelNet;
+
+  mindspore::lite::Context *context = new mindspore::lite::Context;
+  context->thread_num_ = num_thread;
+
+  labelNet->CreateSessionMS(modelBuffer, bufferLen, context);
+  delete (context);
+
+  if (labelNet->session == nullptr) {
+    MS_PRINT("MindSpore create session failed!.");
+    delete (labelNet);
+    delete (labelEnv);
+    return (jlong) nullptr;
+  }
+
+  if (model_buffer != nullptr) {
+    env->DeleteLocalRef(model_buffer);
+  }
+
+  return (jlong) labelEnv;
+}
+
+/**
+ * After the inference environment is successfully created,
+ * sending a picture to the model and run inference.
+ */
+extern "C" JNIEXPORT jstring JNICALL
+Java_com_mindspore_himindsporedemo_gallery_classify_TrackingMobile_runNet(JNIEnv *env, jclass type,
+                                                                          jlong netEnv,
+                                                                          jobject srcBitmap) {
+  cv::Mat matImageSrc;
+  BitmapToMat(env, srcBitmap, &matImageSrc);
+  cv::Mat matImgPreprocessed = PreProcessImageData(matImageSrc);
+
+  ImgDims inputDims;
+  inputDims.channel = matImgPreprocessed.channels();
+  inputDims.width = matImgPreprocessed.cols;
+  inputDims.height = matImgPreprocessed.rows;
+
+  // Get the mindsore inference environment which created in loadModel().
+  void **labelEnv = reinterpret_cast<void **>(netEnv);
+  if (labelEnv == nullptr) {
+    MS_PRINT("MindSpore error, labelEnv is a nullptr.");
+    return NULL;
+  }
+  MSNetWork *labelNet = static_cast<MSNetWork *>(*labelEnv);
+
+  auto mSession = labelNet->session;
+  if (mSession == nullptr) {
+    MS_PRINT("MindSpore error, Session is a nullptr.");
+    return NULL;
+  }
+  MS_PRINT("MindSpore get session.");
+
+  auto msInputs = mSession->GetInputs();
+  if (msInputs.size() == 0) {
+    MS_PRINT("MindSpore error, msInputs.size() equals 0.");
+    return NULL;
+  }
+  auto inTensor = msInputs.front();
+
+  // dataHWC is the tensor format.
+  float *dataHWC = new float[inputDims.channel * inputDims.width * inputDims.height];
+  float *ptrTmp = reinterpret_cast<float *>(matImgPreprocessed.data);
+  for (int i = 0; i < inputDims.channel * inputDims.width * inputDims.height; ++i) {
+    dataHWC[i] = ptrTmp[i];
+  }
+
+  // Copy dataHWC to the model input tensor.
+  memcpy(inTensor->MutableData(), dataHWC,
+         inputDims.channel * inputDims.width * inputDims.height * sizeof(float));
+  delete[] (dataHWC);
+
+  // After the model and image tensor data is loaded, run inference.
+  auto status = mSession->RunGraph();
+
+  if (status != mindspore::lite::RET_OK) {
+    MS_PRINT("MindSpore run net error.");
+    return NULL;
+  }
+
+  /**
+   * Get the mindspore inference results.
+   * Return the map of output node name and MindSpore Lite MSTensor.
+   */
+  auto msOutputs = mSession->GetOutputMapByNode();
+
+  std::string resultStr = ProcessRunnetResult(MSNetWork::RET_CATEGORY_SUM,
+                                              MSNetWork::labels_name_map, msOutputs);
+
+  const char *resultCharData = resultStr.c_str();
+  return (env)->NewStringUTF(resultCharData);
+}
+
+extern "C" JNIEXPORT jboolean JNICALL
+Java_com_mindspore_himindsporedemo_gallery_classify_TrackingMobile_unloadModel(JNIEnv *env,
+                                                                               jclass type,
+                                                                               jlong netEnv) {
+  MS_PRINT("MindSpore release net.");
+  void **labelEnv = reinterpret_cast<void **>(netEnv);
+  if (labelEnv == nullptr) {
+    MS_PRINT("MindSpore error, labelEnv is a nullptr.");
+  }
+  MSNetWork *labelNet = static_cast<MSNetWork *>(*labelEnv);
+
+  labelNet->ReleaseNets();
+
+  return (jboolean) true;
+}

model_zoo/official/lite/image_classification/app/src/main/cpp/MindSporeNetnative.h

@@ -0,0 +1,20 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+#ifndef MINDSPORE_JNI_HMS_DEBUG_MINDSPORENETNATIVE_H
+#define MINDSPORE_JNI_HMS_DEBUG_MINDSPORENETNATIVE_H
+
+#endif  // MINDSPORE_JNI_HMS_DEBUG_MINDSPORENETNATIVE_H

model_zoo/official/lite/image_classification/app/src/main/java/com/mindspore/himindsporedemo/gallery/classify/CompareSizesByArea.java

@@ -0,0 +1,34 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package com.mindspore.himindsporedemo.gallery.classify;
+
+import android.util.Size;
+import java.util.Comparator;
+
+/**
+ * Data comparator.
+ */
+
+public class CompareSizesByArea implements Comparator<Size> {
+
+    @Override
+    public int compare(Size lhs, Size rhs) {
+        // We cast here to ensure the multiplications won't overflow
+        return Long.signum((long) lhs.getWidth() * lhs.getHeight() - (long) rhs.getWidth() * rhs.getHeight());
+    }
+
+}

model_zoo/official/lite/image_classification/app/src/main/java/com/mindspore/himindsporedemo/gallery/classify/RecognitionObjectBean.java

@@ -0,0 +1,46 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package com.mindspore.himindsporedemo.gallery.classify;
+
+public class RecognitionObjectBean {
+
+    private String name;
+    private float score;
+
+    public RecognitionObjectBean(String name, float score) {
+        this.name = name;
+        this.score = score;
+    }
+
+    public String getName() {
+        return name;
+    }
+
+    public void setName(String name) {
+        this.name = name;
+    }
+
+    public float getScore() {
+        return score;
+    }
+
+    public void setScore(float score) {
+        this.score = score;
+    }
+
+
+}

model_zoo/official/lite/image_classification/app/src/main/java/com/mindspore/himindsporedemo/gallery/classify/TrackingMobile.java

@@ -0,0 +1,128 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package com.mindspore.himindsporedemo.gallery.classify;
+
+import android.content.Context;
+import android.content.res.AssetManager;
+import android.graphics.Bitmap;
+import android.util.Log;
+
+import java.io.InputStream;
+import java.nio.ByteBuffer;
+
+/**
+ * Call the MindSpore interface API in the Java layer.
+ */
+public class TrackingMobile {
+    private final static String TAG = "TrackingMobile";
+
+    static {
+        try {
+            System.loadLibrary("mlkit-label-MS");
+            Log.i(TAG, "load libiMindSpore.so successfully.");
+        } catch (UnsatisfiedLinkError e) {
+            Log.e(TAG, "UnsatisfiedLinkError " + e.getMessage());
+        }
+    }
+
+    // The address of the running inference environment.
+    private long netEnv = 0;
+
+    private final Context mActivity;
+
+    public TrackingMobile(Context activity) {
+        this.mActivity = activity;
+    }
+
+    /**
+     * JNI load model and also create model inference environment.
+     *
+     * @param modelBuffer Model buffer.
+     * @param numThread The num of thread.
+     * @return MindSpore Inference environment address.
+     */
+    public native long loadModel(ByteBuffer modelBuffer, int numThread);
+
+    /**
+     * Running model.
+     *
+     * @param netEnv Inference environment address.
+     * @param img A picture to be inferred.
+     * @return Inference result
+     */
+    public native String runNet(long netEnv, Bitmap img);
+
+    /**
+     * Unbind model data.
+     *
+     * @param netEnv Inference environment address.
+     * @return Unbound state.
+     */
+    public native boolean unloadModel(long netEnv);
+
+    /**
+     * The C++ side is encapsulated into a method of the MSNetWorks class
+     *
+     * @param modelPath Model file location
+     * @return Load model file status
+     */
+    public boolean loadModelFromBuf(String modelPath) {
+        ByteBuffer buffer = loadModelFile(modelPath);
+        netEnv = loadModel(buffer, 2);  //numThread's default setting is 2.
+        if (netEnv == 0){ // Loading model failed.
+            return false;
+        }
+
+        return true;
+    }
+
+    /**
+     * Run MindSpore inference.
+     */
+    public String MindSpore_runnet(Bitmap img) {
+        String ret_str = runNet(netEnv, img);
+        return ret_str;
+    }
+
+    /**
+     * Unload model.
+     * @return true
+     */
+    public boolean unloadModel() {
+        unloadModel(netEnv);
+        return true;
+    }
+
+    /**
+     * Load model file stream.
+     * @param modelPath Model file path.
+     * @return  Model ByteBuffer.
+     */
+    public ByteBuffer loadModelFile(String modelPath) {
+        InputStream is = null;
+        try {
+            is = mActivity.getAssets().open(modelPath);
+            byte[] bytes = new byte[is.available()];
+            is.read(bytes);
+            return ByteBuffer.allocateDirect(bytes.length).put(bytes);
+        } catch (Exception e) {
+            Log.d("loadModelFile", " Exception occur. ");
+            Log.e(TAG, Log.getStackTraceString(e));
+        }
+        return null;
+    }
+}

model_zoo/official/lite/image_classification/app/src/main/java/com/mindspore/himindsporedemo/widget/AutoFitTextureView.java

@@ -0,0 +1,76 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package com.mindspore.himindsporedemo.widget;
+
+import android.content.Context;
+import android.util.AttributeSet;
+import android.util.Log;
+import android.view.TextureView;
+
+public class AutoFitTextureView extends TextureView {
+
+    private int mRatioWidth = 0;
+    private int mRatioHeight = 0;
+
+    public AutoFitTextureView(Context context) {
+        this(context, null);
+    }
+
+    public AutoFitTextureView(Context context, AttributeSet attrs) {
+        this(context, attrs, 0);
+    }
+
+    public AutoFitTextureView(Context context, AttributeSet attrs, int defStyle) {
+        super(context, attrs, defStyle);
+    }
+
+    /**
+     * Sets the aspect ratio for this view. The size of the view will be measured based on the ratio
+     * calculated from the parameters. Note that the actual sizes of parameters don't matter, that
+     * is, calling setAspectRatio(2, 3) and setAspectRatio(4, 6) make the same result.
+     *
+     * @param width  Relative horizontal size
+     * @param height Relative vertical size
+     */
+    public void setAspectRatio(int width, int height) {
+        if (width < 0 || height < 0) {
+            throw new IllegalArgumentException("Size cannot be negative.");
+        }
+        mRatioWidth = width;
+        mRatioHeight = height;
+        requestLayout();
+    }
+
+    @Override
+    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
+        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
+        int width = MeasureSpec.getSize(widthMeasureSpec);
+        int height = MeasureSpec.getSize(heightMeasureSpec);
+        Log.e("AAA","onMeasure height>>"+height);
+
+        if (0 == mRatioWidth || 0 == mRatioHeight) {
+            setMeasuredDimension(width, height);
+        } else {
+            if (width < height * mRatioWidth / mRatioHeight) {
+                setMeasuredDimension(width, width * mRatioHeight / mRatioWidth);
+            } else {
+                setMeasuredDimension(height * mRatioWidth / mRatioHeight, height);
+            }
+        }
+    }
+
+}

model_zoo/official/lite/image_classification/app/src/main/java/com/mindspore/himindsporedemo/widget/CameraActivity.java

@@ -0,0 +1,218 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package com.mindspore.himindsporedemo.widget;
+
+import android.Manifest;
+import android.content.pm.PackageManager;
+import android.graphics.Color;
+import android.os.Build;
+import android.os.Bundle;
+import android.util.Log;
+import android.view.Gravity;
+import android.view.View;
+import android.view.ViewGroup;
+import android.view.WindowManager;
+import android.widget.LinearLayout;
+import android.widget.TextView;
+import android.widget.Toast;
+
+import androidx.annotation.UiThread;
+import androidx.appcompat.app.AppCompatActivity;
+
+import com.mindspore.himindsporedemo.R;
+import com.mindspore.himindsporedemo.gallery.classify.RecognitionObjectBean;
+
+import java.util.ArrayList;
+import java.util.Collections;
+import java.util.Comparator;
+import java.util.List;
+
+/**
+ * The main interface of camera preview.
+ * Using Camera 2 API.
+ */
+public class CameraActivity extends AppCompatActivity{
+    private static final String TAG = "CameraActivity";
+
+    private static final String BUNDLE_FRAGMENTS_KEY = "android:support:fragments";
+
+    private static final int PERMISSIONS_REQUEST = 1;
+
+    private static final String PERMISSION_CAMERA = Manifest.permission.CAMERA;
+
+    private LinearLayout bottomLayout;
+
+    private List<RecognitionObjectBean> recognitionObjectBeanList;
+
+
+    @Override
+    protected void onCreate(final Bundle savedInstanceState) {
+        Log.d(TAG, "onCreate");
+
+        if (savedInstanceState != null && this.clearFragmentsTag()) {
+            // Clear the state of the fragment when rebuilding.
+            savedInstanceState.remove(BUNDLE_FRAGMENTS_KEY);
+        }
+
+        super.onCreate(null);
+        getWindow().addFlags(WindowManager.LayoutParams.FLAG_KEEP_SCREEN_ON);
+
+        setContentView(R.layout.activity_camera);
+
+        if (hasPermission()) {
+            setFragment();
+        } else {
+            requestPermission();
+        }
+
+        bottomLayout = findViewById(R.id.layout_bottom_content);
+    }
+
+    @Override
+    public void onRequestPermissionsResult(final int requestCode, final String[] permissions,
+                                           final int[] grantResults) {
+        super.onRequestPermissionsResult(requestCode, permissions, grantResults);
+        if (requestCode == PERMISSIONS_REQUEST) {
+            if (allPermissionsGranted(grantResults)) {
+                setFragment();
+            } else {
+                requestPermission();
+            }
+        }
+    }
+
+    private static boolean allPermissionsGranted(final int[] grantResults) {
+        for (int result : grantResults) {
+            if (result != PackageManager.PERMISSION_GRANTED) {
+                return false;
+            }
+        }
+        return true;
+    }
+
+    private boolean hasPermission() {
+        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
+            return checkSelfPermission(PERMISSION_CAMERA) == PackageManager.PERMISSION_GRANTED;
+        } else {
+            return true;
+        }
+    }
+
+    private void requestPermission() {
+        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
+            if (shouldShowRequestPermissionRationale(PERMISSION_CAMERA)) {
+                Toast.makeText(CameraActivity.this, "Camera permission is required for this demo", Toast.LENGTH_LONG)
+                        .show();
+            }
+            requestPermissions(new String[]{PERMISSION_CAMERA}, PERMISSIONS_REQUEST);
+        }
+    }
+
+
+    protected void setFragment() {
+        CameraFragment cameraFragment = CameraFragment.newInstance(new CameraFragment.RecognitionDataCallBack() {
+            @Override
+            public void onRecognitionDataCallBack(String result, final String time) {
+                dealRecognitionData(result,time);
+            }
+        });
+
+        getSupportFragmentManager().beginTransaction()
+                .replace(R.id.container, cameraFragment)
+                .commitAllowingStateLoss();
+    }
+
+
+
+    private void dealRecognitionData(String result, final String time) {
+        if (recognitionObjectBeanList != null) {
+            recognitionObjectBeanList.clear();
+        } else {
+            recognitionObjectBeanList = new ArrayList<>();
+        }
+
+        if (!result.equals("")) {
+            String[] resultArray = result.split(";");
+            for (String singleRecognitionResult:resultArray) {
+                String[] singleResult = singleRecognitionResult.split(":");
+                float score = Float.parseFloat(singleResult[1]);
+                if (score > 0.5) {
+                    recognitionObjectBeanList.add(new RecognitionObjectBean(singleResult[0], score));
+                }
+            }
+            Collections.sort(recognitionObjectBeanList, new Comparator<RecognitionObjectBean>() {
+                @Override
+                public int compare(RecognitionObjectBean t1, RecognitionObjectBean t2) {
+                    return Float.compare(t2.getScore(), t1.getScore());
+                }
+            });
+        }
+
+        runOnUiThread(new Runnable() {
+            @Override
+            public void run() {
+                showResultsInBottomSheet(recognitionObjectBeanList,time);
+            }
+        });
+    }
+
+    @UiThread
+    protected void showResultsInBottomSheet(List<RecognitionObjectBean> list,String time) {
+        bottomLayout.removeAllViews();
+        if (list != null && list.size() > 0){
+            int classNum = 0;
+            for (RecognitionObjectBean bean:list) {
+                classNum++;
+                HorTextView horTextView = new HorTextView(this);
+                horTextView.setLeftTitle(bean.getName());
+                horTextView.setRightContent(String.format("%.2f", (100 * bean.getScore())) + "%");
+                horTextView.setBottomLineVisible(View.VISIBLE);
+                bottomLayout.addView(horTextView);
+                if (classNum > 4){ // set maximum display is 5.
+                    break;
+                }
+            }
+            HorTextView horTextView = new HorTextView(this);
+            horTextView.setLeftTitle("Inference Time：");
+            horTextView.setRightContent(time);
+            horTextView.setBottomLineVisible(View.INVISIBLE);
+            bottomLayout.addView(horTextView);
+        }else{
+            TextView textView = new TextView(this);
+            textView.setLayoutParams(new LinearLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT,ViewGroup.LayoutParams.WRAP_CONTENT));
+            textView.setText("Keep moving.");
+            textView.setGravity(Gravity.CENTER);
+            textView.setTextColor(Color.BLACK);
+            textView.setTextSize(30);
+            bottomLayout.addView(textView);
+        }
+
+
+    }
+
+    @Override
+    protected void onSaveInstanceState(Bundle outState) {
+        super.onSaveInstanceState(outState);
+        if (outState != null && this.clearFragmentsTag()) {
+            outState.remove(BUNDLE_FRAGMENTS_KEY);
+        }
+    }
+
+    protected boolean clearFragmentsTag() {
+        return true;
+    }
+}

model_zoo/official/lite/image_classification/app/src/main/java/com/mindspore/himindsporedemo/widget/CameraFragment.java

@@ -0,0 +1,819 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package com.mindspore.himindsporedemo.widget;
+
+import android.annotation.SuppressLint;
+import android.app.Activity;
+import android.content.Context;
+import android.content.res.Configuration;
+import android.graphics.Bitmap;
+import android.graphics.ImageFormat;
+import android.graphics.Matrix;
+import android.graphics.Point;
+import android.graphics.RectF;
+import android.graphics.SurfaceTexture;
+import android.hardware.camera2.CameraAccessException;
+import android.hardware.camera2.CameraCaptureSession;
+import android.hardware.camera2.CameraCharacteristics;
+import android.hardware.camera2.CameraDevice;
+import android.hardware.camera2.CameraManager;
+import android.hardware.camera2.CameraMetadata;
+import android.hardware.camera2.CaptureRequest;
+import android.hardware.camera2.CaptureResult;
+import android.hardware.camera2.TotalCaptureResult;
+import android.hardware.camera2.params.StreamConfigurationMap;
+import android.media.Image;
+import android.media.ImageReader;
+import android.os.Bundle;
+import android.os.Handler;
+import android.os.HandlerThread;
+import android.util.Log;
+import android.util.Size;
+import android.util.SparseIntArray;
+import android.view.LayoutInflater;
+import android.view.Surface;
+import android.view.TextureView;
+import android.view.View;
+import android.view.ViewGroup;
+import android.view.ViewTreeObserver;
+import android.widget.Toast;
+
+import androidx.annotation.NonNull;
+import androidx.annotation.Nullable;
+import androidx.fragment.app.Fragment;
+
+import com.mindspore.himindsporedemo.R;
+import com.mindspore.himindsporedemo.gallery.classify.CompareSizesByArea;
+import com.mindspore.himindsporedemo.gallery.classify.TrackingMobile;
+
+import java.io.File;
+import java.util.ArrayList;
+import java.util.Arrays;
+import java.util.Collections;
+import java.util.List;
+import java.util.concurrent.Semaphore;
+import java.util.concurrent.TimeUnit;
+
+public class CameraFragment extends Fragment {
+
+    private static final String TAG = "CameraFragment";
+
+    private static final SparseIntArray ORIENTATIONS = new SparseIntArray();
+
+    static {
+        ORIENTATIONS.append(Surface.ROTATION_0, 90);
+        ORIENTATIONS.append(Surface.ROTATION_90, 0);
+        ORIENTATIONS.append(Surface.ROTATION_180, 270);
+        ORIENTATIONS.append(Surface.ROTATION_270, 180);
+    }
+
+    private static final int MAX_PREVIEW_WIDTH = 1920;
+
+    private static final int MAX_PREVIEW_HEIGHT = 1280;
+
+    private Semaphore mCameraOpenCloseLock = new Semaphore(1);
+
+    private int mState = STATE_PREVIEW;
+
+    private static final int STATE_PREVIEW = 0;
+
+    private static final int STATE_WAITING_LOCK = 1;
+
+    private static final int STATE_WAITING_PRECAPTURE = 2;
+
+    private static final int STATE_WAITING_NON_PRECAPTURE = 3;
+
+    private static final int STATE_PICTURE_TAKEN = 4;
+
+    /**
+     * Data interface returned after identification.
+     */
+    private RecognitionDataCallBack recognitionDataCallBack;
+
+
+    private AutoFitTextureView mTextureView;
+
+    private TrackingMobile mTrackingMobile;
+
+    private boolean mFlashSupported;
+
+    private boolean isPreBackgroundThreadPause;
+
+
+    /**
+     * HandlerThread and Handler of camera and algorithm.
+     */
+    private HandlerThread mCameraHandlerThread, mMindsporeHandlerThread;
+
+    private Handler mCameraHandler, mMindsporeHandler;
+
+    private CameraManager mCameraManager;
+
+    private CameraCaptureSession mCaptureSession;
+
+    private CameraDevice mCameraDevice;
+
+    private String mCameraId;
+
+    private ImageReader mImageReader;
+
+    private CaptureRequest.Builder mPreviewRequestBuilder;
+
+    private CaptureRequest mPreviewRequest;
+
+    private File mFile;
+
+    private Size mPreviewSize;
+
+    private int mSensorOrientation;
+
+    private CameraDevice.StateCallback mCameraDeviceStateCallback;
+
+
+    private CameraFragment(RecognitionDataCallBack recognitionDataCallBack) {
+        this.recognitionDataCallBack = recognitionDataCallBack;
+    }
+
+    /**
+     * Singleton.
+     *
+     * @param recognitionDataCallBack Identify data return interface.
+     * @return Construction method.
+     */
+    public static CameraFragment newInstance(RecognitionDataCallBack recognitionDataCallBack) {
+        return new CameraFragment(recognitionDataCallBack);
+    }
+
+    /**
+     * Data interface returned after identification.
+     */
+    public interface RecognitionDataCallBack {
+        /**
+         * Data interface returned after identification.
+         *
+         * @param result Recognition result
+         * @param time   Response time
+         */
+        void onRecognitionDataCallBack(String result, String time);
+    }
+
+    @Override
+    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
+        return inflater.inflate(R.layout.fragment_camera, container, false);
+    }
+
+    @Override
+    public void onViewCreated(@NonNull View view, @Nullable Bundle savedInstanceState) {
+        mTextureView = (AutoFitTextureView) view.findViewById(R.id.texture);
+    }
+
+    @Override
+    public void onActivityCreated(@Nullable Bundle savedInstanceState) {
+        super.onActivityCreated(savedInstanceState);
+        mTrackingMobile = new TrackingMobile(getActivity());
+
+        String modelPath = "model/mobilenetv2.ms";
+        boolean ret = mTrackingMobile.loadModelFromBuf(modelPath);
+        Log.d(TAG, "Loading model return value: " + ret);
+    }
+
+
+    @Override
+    public void onResume() {
+        super.onResume();
+        initChildThread();
+        initCameraManager();
+        initSelectCamera();
+        initHandlerMatchingSize();
+        initImageReader();
+        initTextureViewListener();
+    }
+
+    @Override
+    public void onDetach() {
+        super.onDetach();
+        if (mTrackingMobile != null) {
+            boolean ret = mTrackingMobile.unloadModel();
+            Log.d(TAG, "Unload model return value: " + ret);
+        }
+    }
+
+    @Override
+    public void onPause() {
+        closeCamera();
+        stopBackgroundThread();
+        super.onPause();
+    }
+
+    private void initChildThread() {
+        mCameraHandlerThread = new HandlerThread("CAMERA2");
+        mCameraHandlerThread.start();
+        mCameraHandler = new Handler(mCameraHandlerThread.getLooper());
+
+        mMindsporeHandlerThread = new HandlerThread("MINDSPORE");
+        mMindsporeHandlerThread.start();
+        mMindsporeHandler = new Handler(mMindsporeHandlerThread.getLooper());
+        mMindsporeHandler.post(classifyRunnable);
+    }
+
+
+    /**
+     * Detect time-consuming threads
+     */
+    private Runnable classifyRunnable = new Runnable() {
+        public void run() {
+            synchronized (CameraFragment.this) {
+                Bitmap bitmap = mTextureView.getBitmap();
+                if (bitmap != null) {
+                    long startTime = System.currentTimeMillis();
+                    // The current bitmap performs the sending request identification operation
+                    String ret = mTrackingMobile.MindSpore_runnet(bitmap);
+                    long endTime = System.currentTimeMillis();
+                    if (recognitionDataCallBack != null) {
+                        // Interface returns data。
+                        recognitionDataCallBack.onRecognitionDataCallBack(ret, (endTime - startTime) + "ms ");
+                    }
+                    if (!bitmap.isRecycled()) {
+                        bitmap.recycle();
+                    }
+                }
+                if (mMindsporeHandler != null && !isPreBackgroundThreadPause) {
+                    mMindsporeHandler.post(classifyRunnable);
+                }
+            }
+        }
+    };
+
+    private void initCameraManager() {
+        mCameraManager = (CameraManager) getActivity().getSystemService(Context.CAMERA_SERVICE);
+    }
+
+    private void initSelectCamera() {
+        try {
+            String[] cameraIdArray = mCameraManager.getCameraIdList();
+            for (String itemId : cameraIdArray) {
+                CameraCharacteristics itemCharacteristics = mCameraManager.getCameraCharacteristics(itemId);
+                Integer facing = itemCharacteristics.get(CameraCharacteristics.LENS_FACING);
+                if (facing == CameraCharacteristics.LENS_FACING_BACK) {
+                    mCameraId = itemId;
+                    break;
+                }
+
+            }
+        } catch (CameraAccessException e) {
+            e.printStackTrace();
+        }
+        if (mCameraId == null) {
+            Toast.makeText(getActivity(), getString(R.string.camera_error), Toast.LENGTH_SHORT).show();
+        }
+    }
+
+    private StreamConfigurationMap streamConfigurationMap;
+    private Size largest;
+
+    /**
+     * Calculate the camera resolution suitable for the current screen resolution.
+     */
+    private void initHandlerMatchingSize() {
+        try {
+            CameraCharacteristics cameraCharacteristics = mCameraManager.getCameraCharacteristics(mCameraId);
+            streamConfigurationMap = cameraCharacteristics.get(CameraCharacteristics.SCALER_STREAM_CONFIGURATION_MAP);
+
+            Size[] sizes = streamConfigurationMap.getOutputSizes(ImageFormat.JPEG);
+            largest = Collections.max(Arrays.asList(sizes), new CompareSizesByArea());
+
+            Boolean available = cameraCharacteristics.get(CameraCharacteristics.FLASH_INFO_AVAILABLE);
+            mFlashSupported = available == null ? false : available;
+        } catch (CameraAccessException e) {
+            e.printStackTrace();
+        }
+    }
+
+    /**
+     * Initialize the picture.
+     */
+    private void initImageReader() {
+        final int W = 640;
+        final int H = 480;
+
+        mImageReader = ImageReader.newInstance(W, H, ImageFormat.JPEG, 30);
+        mImageReader.setOnImageAvailableListener(new ImageReader.OnImageAvailableListener() {
+            @Override
+            public void onImageAvailable(ImageReader reader) {
+                mFile = new File(getActivity().getExternalFilesDir(null), System.currentTimeMillis() + ".jpg");
+                // Get the data frame and start the algorithm processing.
+                try {
+                    // Get the next image from the ImageReader queue.
+                    Image image = reader.acquireNextImage();
+                    image.close();
+                } catch (Exception e) {
+                    Log.e(TAG, "onImageAvailable: " + e.toString());
+                }
+            }
+        }, mCameraHandler);
+    }
+
+    /**
+     * TextureView.SurfaceTextureListener
+     */
+    private void initTextureViewListener() {
+        if (mTextureView.isAvailable()) {
+            openCamera(mTextureView.getMeasuredWidth(), mTextureView.getMeasuredHeight());
+            Log.d(TAG, "isAvailable: " + mTextureView.getWidth() + "--" + mTextureView.getHeight());
+        } else {
+            mTextureView.setSurfaceTextureListener(new TextureView.SurfaceTextureListener() {
+                @Override
+                public void onSurfaceTextureAvailable(SurfaceTexture texture, int width, int height) {
+                    openCamera(width, height);
+                }
+
+                @Override
+                public void onSurfaceTextureSizeChanged(SurfaceTexture texture, int width, int height) {
+                    configureTransform(width, height);
+                }
+
+                @Override
+                public boolean onSurfaceTextureDestroyed(@NonNull SurfaceTexture surfaceTexture) {
+                    return true;
+                }
+
+                @Override
+                public void onSurfaceTextureUpdated(@NonNull SurfaceTexture surfaceTexture) {
+
+                }
+            });
+        }
+    }
+
+
+    @SuppressLint("MissingPermission")
+    private void openCamera(int width, int height) {
+        Log.e("AAA","height>>"+height);
+        setPreviewSize(width, height, streamConfigurationMap, largest);
+        configureTransform(width, height);
+
+        mCameraDeviceStateCallback = new CameraDevice.StateCallback() {
+            @Override
+            public void onOpened(@NonNull CameraDevice cameraDevice) {
+                if (cameraDevice != null) {
+                    mCameraOpenCloseLock.release();
+                    mCameraDevice = cameraDevice;
+                    createCameraPreviewSession();
+                }
+            }
+
+            @Override
+            public void onDisconnected(@NonNull CameraDevice cameraDevice) {
+                if (cameraDevice != null) {
+                    mCameraOpenCloseLock.release();
+                    cameraDevice.close();
+                    mCameraDevice = null;
+                }
+            }
+
+            @Override
+            public void onError(@NonNull CameraDevice cameraDevice, int i) {
+                if (cameraDevice != null) {
+                    mCameraOpenCloseLock.release();
+                    cameraDevice.close();
+                    mCameraDevice = null;
+                    if (null != getActivity()) {
+                        getActivity().finish();
+                    }
+                }
+            }
+        };
+
+
+        try {
+            if (!mCameraOpenCloseLock.tryAcquire(2500, TimeUnit.MILLISECONDS)) {
+                throw new RuntimeException("Time out waiting to lock ic_launcher opening.");
+            }
+            mCameraManager.openCamera(mCameraId, mCameraDeviceStateCallback, mCameraHandler);
+        } catch (CameraAccessException e) {
+            e.printStackTrace();
+        } catch (InterruptedException e) {
+            throw new RuntimeException("Interrupted while trying to lock ic_launcher opening.", e);
+        }
+
+
+    }
+
+
+    /**
+     * Open camera preview.
+     */
+    private void createCameraPreviewSession() {
+        try {
+            SurfaceTexture texture = mTextureView.getSurfaceTexture();
+            // Set preview size.
+            texture.setDefaultBufferSize(mPreviewSize.getWidth(), mPreviewSize.getHeight());
+            // This is the output Surface we need to start preview.
+            Surface surface = new Surface(texture);
+
+            mPreviewRequestBuilder = mCameraDevice.createCaptureRequest(CameraDevice.TEMPLATE_PREVIEW);
+            mPreviewRequestBuilder.addTarget(surface);
+            // mPreviewRequestBuilder.addTarget(mImageReader.getSurface());
+            // Here, we create a CameraCaptureSession for ic_launcher preview.
+            mCameraDevice.createCaptureSession(Arrays.asList(surface, mImageReader.getSurface()),
+                    new CameraCaptureSession.StateCallback() {
+
+                        @Override
+                        public void onConfigured(@NonNull CameraCaptureSession cameraCaptureSession) {
+                            // The ic_launcher is already closed
+                            if (null == mCameraDevice) {
+                                return;
+                            }
+
+                            // When the session is ready, we start displaying the preview.
+                            mCaptureSession = cameraCaptureSession;
+                            try {
+                                // Auto focus should be continuous for ic_launcher preview.
+                                mPreviewRequestBuilder.set(CaptureRequest.CONTROL_AF_MODE,
+                                        CaptureRequest.CONTROL_AF_MODE_CONTINUOUS_PICTURE);
+                                // Flash is automatically enabled when necessary.
+                                setAutoFlash(mPreviewRequestBuilder);
+                                // Finally, we start displaying the ic_launcher preview.
+                                mPreviewRequest = mPreviewRequestBuilder.build();
+                                mCaptureSession.setRepeatingRequest(mPreviewRequest, mCaptureCallback, mCameraHandler);
+                            } catch (CameraAccessException e) {
+                                e.printStackTrace();
+                            }
+                        }
+
+                        @Override
+                        public void onConfigureFailed(@NonNull CameraCaptureSession cameraCaptureSession) {
+                            Toast.makeText(getActivity(), "Failed", Toast.LENGTH_LONG).show();
+                        }
+                    }, null);
+        } catch (CameraAccessException e) {
+            e.printStackTrace();
+        }
+    }
+
+
+    private CameraCaptureSession.CaptureCallback mCaptureCallback = new CameraCaptureSession.CaptureCallback() {
+
+        private void process(CaptureResult result) {
+            switch (mState) {
+                case STATE_PREVIEW: {
+                    // We have nothing to do when the ic_launcher preview is working normally.
+                    break;
+                }
+                case STATE_WAITING_LOCK: {
+                    Integer afState = result.get(CaptureResult.CONTROL_AF_STATE);
+                    if (afState == null) {
+                        captureStillPicture();
+                    } else if (CaptureResult.CONTROL_AF_STATE_FOCUSED_LOCKED == afState
+                            || CaptureResult.CONTROL_AF_STATE_NOT_FOCUSED_LOCKED == afState) {
+                        // CONTROL_AE_STATE can be null on some devices
+                        Integer aeState = result.get(CaptureResult.CONTROL_AE_STATE);
+                        if (aeState == null || aeState == CaptureResult.CONTROL_AE_STATE_CONVERGED) {
+                            mState = STATE_PICTURE_TAKEN;
+                            captureStillPicture();
+                        } else {
+                            runPrecaptureSequence();
+                        }
+                    }
+                    break;
+                }
+                case STATE_WAITING_PRECAPTURE: {
+                    // CONTROL_AE_STATE can be null on some devices
+                    Integer aeState = result.get(CaptureResult.CONTROL_AE_STATE);
+                    if (aeState == null || aeState == CaptureResult.CONTROL_AE_STATE_PRECAPTURE
+                            || aeState == CaptureRequest.CONTROL_AE_STATE_FLASH_REQUIRED) {
+                        mState = STATE_WAITING_NON_PRECAPTURE;
+                    }
+                    break;
+                }
+                case STATE_WAITING_NON_PRECAPTURE: {
+                    // CONTROL_AE_STATE can be null on some devices
+                    Integer aeState = result.get(CaptureResult.CONTROL_AE_STATE);
+                    if (aeState == null || aeState != CaptureResult.CONTROL_AE_STATE_PRECAPTURE) {
+                        mState = STATE_PICTURE_TAKEN;
+                        captureStillPicture();
+                    }
+                    break;
+                }
+            }
+        }
+
+        @Override
+        public void onCaptureProgressed(@NonNull CameraCaptureSession session, @NonNull CaptureRequest request,
+                                        @NonNull CaptureResult partialResult) {
+            process(partialResult);
+        }
+
+        @Override
+        public void onCaptureCompleted(@NonNull CameraCaptureSession session, @NonNull CaptureRequest request,
+                                       @NonNull TotalCaptureResult result) {
+            process(result);
+        }
+    };
+
+
+    /**
+     * Run the precapture sequence for capturing a still image. This method should be called when
+     * we get a response in.
+     */
+    private void runPrecaptureSequence() {
+        try {
+            // This is how to tell the ic_launcher to trigger.
+            mPreviewRequestBuilder.set(CaptureRequest.CONTROL_AE_PRECAPTURE_TRIGGER,
+                    CaptureRequest.CONTROL_AE_PRECAPTURE_TRIGGER_START);
+            // Tell #mCaptureCallback to wait for the precapture sequence to be set.
+            mState = STATE_WAITING_PRECAPTURE;
+            mCaptureSession.capture(mPreviewRequestBuilder.build(), mCaptureCallback, mCameraHandler);
+        } catch (CameraAccessException e) {
+            e.printStackTrace();
+        }
+    }
+
+    /**
+     * Capture a still picture. This method should be called when we get a response in
+     * {@link #mCaptureCallback} from both
+     */
+    private void captureStillPicture() {
+        try {
+            final Activity activity = getActivity();
+            if (null == activity || null == mCameraDevice) {
+                return;
+            }
+            // This is the CaptureRequest.Builder that we use to take a picture.
+            final CaptureRequest.Builder captureBuilder =
+                    mCameraDevice.createCaptureRequest(CameraDevice.TEMPLATE_STILL_CAPTURE);
+            captureBuilder.addTarget(mImageReader.getSurface());
+
+            // Use the same AE and AF modes as the preview.
+            captureBuilder.set(CaptureRequest.CONTROL_AF_MODE, CaptureRequest.CONTROL_AF_MODE_CONTINUOUS_PICTURE);
+            setAutoFlash(captureBuilder);
+
+            // Orientation
+            int rotation = activity.getWindowManager().getDefaultDisplay().getRotation();
+            captureBuilder.set(CaptureRequest.JPEG_ORIENTATION, getOrientation(rotation));
+
+            CameraCaptureSession.CaptureCallback CaptureCallback = new CameraCaptureSession.CaptureCallback() {
+
+                @Override
+                public void onCaptureCompleted(@NonNull CameraCaptureSession session, @NonNull CaptureRequest request,
+                                               @NonNull TotalCaptureResult result) {
+                    showToast("Saved: " + mFile);
+                    Log.d(TAG, mFile.toString());
+                    unlockFocus();
+                }
+            };
+
+            mCaptureSession.stopRepeating();
+            mCaptureSession.abortCaptures();
+            mCaptureSession.capture(captureBuilder.build(), CaptureCallback, null);
+        } catch (CameraAccessException e) {
+            e.printStackTrace();
+        }
+    }
+
+    /**
+     * Retrieves the JPEG orientation from the specified screen rotation.
+     *
+     * @param rotation The screen rotation.
+     * @return The JPEG orientation (one of 0, 90, 270, and 360)
+     */
+    private int getOrientation(int rotation) {
+        return (ORIENTATIONS.get(rotation) + mSensorOrientation + 270) % 360;
+    }
+
+    /**
+     * Unlock the focus. This method should be called when still image capture sequence is
+     * finished.
+     */
+    private void unlockFocus() {
+        try {
+            // Reset the auto-focus trigger
+            mPreviewRequestBuilder.set(CaptureRequest.CONTROL_AF_TRIGGER, CameraMetadata.CONTROL_AF_TRIGGER_CANCEL);
+            setAutoFlash(mPreviewRequestBuilder);
+            mCaptureSession.capture(mPreviewRequestBuilder.build(), mCaptureCallback, mCameraHandler);
+            // After this, the ic_launcher will go back to the normal state of preview.
+            mState = STATE_PREVIEW;
+            mCaptureSession.setRepeatingRequest(mPreviewRequest, mCaptureCallback, mCameraHandler);
+        } catch (CameraAccessException e) {
+            e.printStackTrace();
+        }
+    }
+
+    private void setAutoFlash(CaptureRequest.Builder requestBuilder) {
+        if (mFlashSupported) {
+            requestBuilder.set(CaptureRequest.CONTROL_AE_MODE, CaptureRequest.CONTROL_AE_MODE_ON_AUTO_FLASH);
+        }
+    }
+
+    protected void showToast(final String text) {
+        final Activity activity = getActivity();
+        if (activity != null) {
+            activity.runOnUiThread(new Runnable() {
+                @Override
+                public void run() {
+                    Toast.makeText(activity, text, Toast.LENGTH_SHORT).show();
+                }
+            });
+        }
+    }
+
+    /**
+     * Configures the necessary {@link Matrix} transformation to `mTextureView`.
+     * This method should be called after the ic_launcher preview size is determined in
+     * setUpCameraOutputs and also the size of `mTextureView` is fixed.
+     *
+     * @param viewWidth  The width of `mTextureView`
+     * @param viewHeight The height of `mTextureView`
+     */
+    protected void configureTransform(int viewWidth, int viewHeight) {
+        Activity activity = getActivity();
+        if (null == mTextureView || null == mPreviewSize || null == activity) {
+            return;
+        }
+        int rotation = activity.getWindowManager().getDefaultDisplay().getRotation();
+        Matrix matrix = new Matrix();
+        RectF viewRect = new RectF(0, 0, viewWidth, viewHeight);
+        RectF bufferRect = new RectF(0, 0, mPreviewSize.getHeight(), mPreviewSize.getWidth());
+        float centerX = viewRect.centerX();
+        float centerY = viewRect.centerY();
+        if (Surface.ROTATION_90 == rotation || Surface.ROTATION_270 == rotation) {
+            bufferRect.offset(centerX - bufferRect.centerX(), centerY - bufferRect.centerY());
+            matrix.setRectToRect(viewRect, bufferRect, Matrix.ScaleToFit.FILL);
+            float scale =
+                    Math.max((float) viewHeight / mPreviewSize.getHeight(), (float) viewWidth / mPreviewSize.getWidth());
+            matrix.postScale(scale, scale, centerX, centerY);
+            matrix.postRotate(90 * (rotation - 2), centerX, centerY);
+        } else if (Surface.ROTATION_180 == rotation) {
+            matrix.postRotate(180, centerX, centerY);
+        }
+        mTextureView.setTransform(matrix);
+    }
+
+
+    /**
+     * Set preview image size and positioning.
+     *
+     * @param width
+     * @param height
+     * @param map     StreamConfigurationMap, the manager of all output formats and sizes supported by the camera.
+     * @param largest The max size
+     */
+    private void setPreviewSize(int width, int height, StreamConfigurationMap map, Size largest) {
+        // Find out if we need to swap dimension to get the preview size relative to sensor coordinate.
+        int displayRotation = getActivity().getWindowManager().getDefaultDisplay().getRotation();
+        Log.d(TAG, "displayRotation: " + displayRotation);
+
+        boolean swappedDimensions = false;
+        if (Surface.ROTATION_0 == displayRotation || Surface.ROTATION_180 == displayRotation) {
+            if (mSensorOrientation == 90 || mSensorOrientation == 270) {
+                swappedDimensions = true;
+            }
+        } else if (Surface.ROTATION_90 == displayRotation || Surface.ROTATION_270 == displayRotation) {
+            if (mSensorOrientation == 0 || mSensorOrientation == 180) {
+                swappedDimensions = true;
+            }
+        }
+
+        Point displaySize = new Point();
+        getActivity().getWindowManager().getDefaultDisplay().getSize(displaySize);
+        int rotatedPreviewWidth = width;
+        int rotatedPreviewHeight = height;
+        int maxPreviewWidth = displaySize.x;
+        int maxPreviewHeight = displaySize.y;
+
+        if (swappedDimensions) {
+            rotatedPreviewWidth = height;
+            rotatedPreviewHeight = width;
+            maxPreviewWidth = displaySize.y;
+            maxPreviewHeight = displaySize.x;
+        }
+
+        if (maxPreviewWidth > MAX_PREVIEW_WIDTH) {
+            maxPreviewWidth = MAX_PREVIEW_WIDTH;
+        }
+
+        if (maxPreviewHeight > MAX_PREVIEW_HEIGHT) {
+            maxPreviewHeight = MAX_PREVIEW_HEIGHT;
+        }
+
+        // Danger, W.R.! Attempting to use too large a preview size could exceed the ic_launcher
+        // bus' bandwidth limitation, resulting in gorgeous previews but the storage of
+        // garbage capture data.
+        mPreviewSize = chooseOptimalSize(map.getOutputSizes(SurfaceTexture.class), rotatedPreviewWidth,
+                rotatedPreviewHeight, maxPreviewWidth, maxPreviewHeight, largest);
+
+        // We fit the aspect ratio of TextureView to the size of preview we picked.
+        int orientation = getResources().getConfiguration().orientation;// manifest中方向已经写死
+        if (orientation == Configuration.ORIENTATION_LANDSCAPE) {
+            mTextureView.setAspectRatio(mPreviewSize.getWidth(), mPreviewSize.getHeight());
+        } else {
+            mTextureView.setAspectRatio(mPreviewSize.getHeight(), mPreviewSize.getWidth());
+        }
+    }
+
+    /**
+     * Given {@code choices} of {@code Size}s supported by a ic_launcher, choose the smallest one that
+     * is at least as large as the respective texture view size, and that is at most as large as the
+     * respective max size, and whose aspect ratio matches with the specified value. If such size
+     * doesn't exist, choose the largest one that is at most as large as the respective max size,
+     * and whose aspect ratio matches with the specified value.
+     *
+     * @param choices           The list of sizes that the ic_launcher supports for the intended output
+     *                          class
+     * @param textureViewWidth  The width of the texture view relative to sensor coordinate
+     * @param textureViewHeight The height of the texture view relative to sensor coordinate
+     * @param maxWidth          The maximum width that can be chosen
+     * @param maxHeight         The maximum height that can be chosen
+     * @param aspectRatio       The aspect ratio
+     * @return The optimal {@code Size}, or an arbitrary one if none were big enough
+     */
+    protected Size chooseOptimalSize(Size[] choices, int textureViewWidth, int textureViewHeight, int maxWidth,
+                                     int maxHeight, Size aspectRatio) {
+
+        // Collect the supported resolutions that are at least as big as the preview Surface
+        List<Size> bigEnough = new ArrayList<>();
+        // Collect the supported resolutions that are smaller than the preview Surface
+        List<Size> notBigEnough = new ArrayList<>();
+        int w = aspectRatio.getWidth();
+        int h = aspectRatio.getHeight();
+        for (Size option : choices) {
+            if (option.getWidth() <= maxWidth && option.getHeight() <= maxHeight
+                    && option.getHeight() == option.getWidth() * h / w) {
+                // if (option.getWidth() <= maxWidth && option.getHeight() <= maxHeight) {
+                if (option.getWidth() >= textureViewWidth && option.getHeight() >= textureViewHeight) {
+                    bigEnough.add(option);
+                } else {
+                    notBigEnough.add(option);
+                }
+            }
+        }
+
+        if (bigEnough.size() > 0) {
+            return Collections.min(bigEnough, new CompareSizesByArea());
+        } else if (notBigEnough.size() > 0) {
+            return Collections.max(notBigEnough, new CompareSizesByArea());
+        } else {
+            Log.e(TAG, "Couldn't find any suitable preview size");
+            return choices[0];
+        }
+    }
+
+
+    /**
+     * Closes the current {@link CameraDevice}.
+     */
+    private void closeCamera() {
+        try {
+            mCameraOpenCloseLock.acquire();
+            if (null != mCaptureSession) {
+                mCaptureSession.close();
+                mCaptureSession = null;
+            }
+            if (null != mCameraDevice) {
+                mCameraDevice.close();
+                mCameraDevice = null;
+            }
+            if (null != mImageReader) {
+                mImageReader.close();
+                mImageReader = null;
+            }
+        } catch (InterruptedException e) {
+            throw new RuntimeException("Interrupted while trying to lock ic_launcher closing.", e);
+        } finally {
+            mCameraOpenCloseLock.release();
+        }
+    }
+
+    private void stopBackgroundThread() {
+        isPreBackgroundThreadPause = true;
+        mCameraHandlerThread.quitSafely();
+        mMindsporeHandlerThread.quitSafely();
+        try {
+            mCameraHandlerThread.join();
+            mCameraHandlerThread = null;
+            mCameraHandler.removeCallbacksAndMessages(null);
+            mCameraHandler = null;
+
+            mMindsporeHandlerThread.join();
+            mMindsporeHandlerThread = null;
+            mMindsporeHandler.removeCallbacksAndMessages(null);
+            mMindsporeHandler = null;
+        } catch (InterruptedException e) {
+            e.printStackTrace();
+        }
+    }
+}

model_zoo/official/lite/image_classification/app/src/main/java/com/mindspore/himindsporedemo/widget/HorTextView.java

@@ -0,0 +1,63 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package com.mindspore.himindsporedemo.widget;
+
+import android.content.Context;
+import android.util.AttributeSet;
+import android.view.LayoutInflater;
+import android.view.View;
+import android.widget.LinearLayout;
+import android.widget.TextView;
+
+import androidx.annotation.Nullable;
+
+import com.mindspore.himindsporedemo.R;
+
+public class HorTextView extends LinearLayout {
+    private TextView tvLeftTitle, tvRightContent;
+    private View viewBottomLine;
+
+    public HorTextView(Context context) {
+        this(context, null);
+    }
+
+    public HorTextView(Context context, @Nullable AttributeSet attrs) {
+        this(context, attrs, 0);
+    }
+
+    public HorTextView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
+        super(context, attrs, defStyleAttr);
+        LayoutInflater.from(context).inflate(R.layout.layout_hor_text_view, this);
+        tvLeftTitle = findViewById(R.id.tv_left_title);
+        tvRightContent = findViewById(R.id.tv_right_content);
+        viewBottomLine = findViewById(R.id.view_bottom_line);
+    }
+
+
+    public void setLeftTitle(String title) {
+        tvLeftTitle.setText(title);
+    }
+
+    public void setRightContent(String content) {
+        tvRightContent.setText(content);
+    }
+
+    public void setBottomLineVisible(int isVisible) {
+        viewBottomLine.setVisibility(isVisible);
+    }
+
+}

model_zoo/official/lite/image_classification/app/src/main/res/drawable-v24/ic_launcher_foreground.xml

@@ -0,0 +1,30 @@
+<vector xmlns:android="http://schemas.android.com/apk/res/android"
+    xmlns:aapt="http://schemas.android.com/aapt"
+    android:width="108dp"
+    android:height="108dp"
+    android:viewportWidth="108"
+    android:viewportHeight="108">
+    <path android:pathData="M31,63.928c0,0 6.4,-11 12.1,-13.1c7.2,-2.6 26,-1.4 26,-1.4l38.1,38.1L107,108.928l-32,-1L31,63.928z">
+        <aapt:attr name="android:fillColor">
+            <gradient
+                android:endX="85.84757"
+                android:endY="92.4963"
+                android:startX="42.9492"
+                android:startY="49.59793"
+                android:type="linear">
+                <item
+                    android:color="#44000000"
+                    android:offset="0.0" />
+                <item
+                    android:color="#00000000"
+                    android:offset="1.0" />
+            </gradient>
+        </aapt:attr>
+    </path>
+    <path
+        android:fillColor="#FFFFFF"
+        android:fillType="nonZero"
+        android:pathData="M65.3,45.828l3.8,-6.6c0.2,-0.4 0.1,-0.9 -0.3,-1.1c-0.4,-0.2 -0.9,-0.1 -1.1,0.3l-3.9,6.7c-6.3,-2.8 -13.4,-2.8 -19.7,0l-3.9,-6.7c-0.2,-0.4 -0.7,-0.5 -1.1,-0.3C38.8,38.328 38.7,38.828 38.9,39.228l3.8,6.6C36.2,49.428 31.7,56.028 31,63.928h46C76.3,56.028 71.8,49.428 65.3,45.828zM43.4,57.328c-0.8,0 -1.5,-0.5 -1.8,-1.2c-0.3,-0.7 -0.1,-1.5 0.4,-2.1c0.5,-0.5 1.4,-0.7 2.1,-0.4c0.7,0.3 1.2,1 1.2,1.8C45.3,56.528 44.5,57.328 43.4,57.328L43.4,57.328zM64.6,57.328c-0.8,0 -1.5,-0.5 -1.8,-1.2s-0.1,-1.5 0.4,-2.1c0.5,-0.5 1.4,-0.7 2.1,-0.4c0.7,0.3 1.2,1 1.2,1.8C66.5,56.528 65.6,57.328 64.6,57.328L64.6,57.328z"
+        android:strokeWidth="1"
+        android:strokeColor="#00000000" />
+</vector>

model_zoo/official/lite/image_classification/app/src/main/res/drawable/ic_launcher_background.xml

@@ -0,0 +1,170 @@
+<?xml version="1.0" encoding="utf-8"?>
+<vector xmlns:android="http://schemas.android.com/apk/res/android"
+    android:width="108dp"
+    android:height="108dp"
+    android:viewportHeight="108"
+    android:viewportWidth="108">
+    <path
+        android:fillColor="#26A69A"
+        android:pathData="M0,0h108v108h-108z" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M9,0L9,108"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M19,0L19,108"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M29,0L29,108"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M39,0L39,108"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M49,0L49,108"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M59,0L59,108"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M69,0L69,108"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M79,0L79,108"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M89,0L89,108"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M99,0L99,108"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M0,9L108,9"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M0,19L108,19"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M0,29L108,29"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M0,39L108,39"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M0,49L108,49"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M0,59L108,59"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M0,69L108,69"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M0,79L108,79"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M0,89L108,89"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M0,99L108,99"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M19,29L89,29"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M19,39L89,39"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M19,49L89,49"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M19,59L89,59"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M19,69L89,69"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M19,79L89,79"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M29,19L29,89"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M39,19L39,89"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M49,19L49,89"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M59,19L59,89"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M69,19L69,89"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+    <path
+        android:fillColor="#00000000"
+        android:pathData="M79,19L79,89"
+        android:strokeColor="#33FFFFFF"
+        android:strokeWidth="0.8" />
+</vector>

model_zoo/official/lite/image_classification/app/src/main/res/drawable/rectangle.xml

@@ -0,0 +1,13 @@
+<?xml version="1.0" encoding="UTF-8"?>
+<shape xmlns:android="http://schemas.android.com/apk/res/android"
+    android:id="@+id/listview_background_shape">
+    <stroke
+        android:width="1dp"
+        android:color="@android:color/darker_gray" />
+    <padding
+        android:bottom="2dp"
+        android:left="2dp"
+        android:right="2dp"
+        android:top="2dp" />
+    <solid android:color="#ffffffff" />
+</shape>

model_zoo/official/lite/image_classification/app/src/main/res/drawable/switch_thumb.xml

@@ -0,0 +1,8 @@
+<?xml version="1.0" encoding="utf-8"?>
+<shape xmlns:android="http://schemas.android.com/apk/res/android">
+    <size
+        android:width="40dp"
+        android:height="40dp" />
+    <corners android:radius="20dp" />
+    <solid android:color="#82eae5e5" />
+</shape>

model_zoo/official/lite/image_classification/app/src/main/res/drawable/switch_track.xml

@@ -0,0 +1,8 @@
+<?xml version="1.0" encoding="utf-8"?>
+<shape xmlns:android="http://schemas.android.com/apk/res/android">
+    <size
+        android:width="100dp"
+        android:height="40dp"/>
+    <corners android:radius="20dp" />
+    <solid android:color="#784b4b4b" />
+</shape>

model_zoo/official/lite/image_classification/app/src/main/res/layout/activity_camera.xml

@@ -0,0 +1,55 @@
+<?xml version="1.0" encoding="utf-8"?>
+<androidx.coordinatorlayout.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
+    xmlns:tools="http://schemas.android.com/tools"
+    android:layout_width="match_parent"
+    android:layout_height="match_parent"
+    android:background="#00000000">
+
+    <RelativeLayout
+        android:layout_width="match_parent"
+        android:layout_height="match_parent"
+        android:background="#00000000"
+        android:orientation="vertical">
+
+
+        <FrameLayout
+            android:id="@+id/container"
+            android:layout_width="match_parent"
+            android:layout_height="match_parent"
+            android:background="@android:color/black"
+            tools:context="com.mindspore.himindsporedemo.widget.CameraActivity" />
+
+
+        <androidx.appcompat.widget.Toolbar
+            android:id="@+id/toolbar"
+            android:layout_width="match_parent"
+            android:layout_height="?attr/actionBarSize"
+            android:layout_alignParentTop="true"
+            android:background="@color/mindspore_semi_transparent">
+
+            <TextView
+                android:gravity="center_vertical"
+                android:textColor="#ffffff"
+                android:drawablePadding="5dp"
+                android:textSize="30sp"
+                android:drawableStart="@mipmap/logo"
+                android:layout_width="match_parent"
+                android:layout_height="wrap_content"
+                android:text="MindSpore"/>
+        </androidx.appcompat.widget.Toolbar>
+
+        <LinearLayout
+            android:gravity="center"
+            android:background="#ffffff"
+            android:id="@+id/layout_bottom_content"
+            android:layout_alignParentBottom="true"
+            android:layout_width="match_parent"
+            android:layout_height="200dp"
+            android:orientation="vertical" />
+    </RelativeLayout>
+
+
+<!--    <include-->
+<!--        android:id="@+id/bottom_sheet_layout"-->
+<!--        layout="@layout/layout_bottom_sheet" />-->
+</androidx.coordinatorlayout.widget.CoordinatorLayout>

model_zoo/official/lite/image_classification/app/src/main/res/layout/fragment_camera.xml

@@ -0,0 +1,13 @@
+<?xml version="1.0" encoding="utf-8"?>
+<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
+    android:layout_width="match_parent"
+    android:layout_height="match_parent"
+    android:background="@color/white"
+    android:orientation="vertical">
+
+    <com.mindspore.himindsporedemo.widget.AutoFitTextureView
+        android:id="@+id/texture"
+        android:layout_width="match_parent"
+        android:layout_height="match_parent" />
+
+</FrameLayout>

model_zoo/official/lite/image_classification/app/src/main/res/layout/layout_hor_text_view.xml

@@ -0,0 +1,40 @@
+<?xml version="1.0" encoding="utf-8"?>
+<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
+    xmlns:tools="http://schemas.android.com/tools"
+    android:layout_width="match_parent"
+    android:layout_height="match_parent"
+    android:orientation="vertical">
+
+    <TextView
+        android:id="@+id/tv_left_title"
+        android:layout_width="wrap_content"
+        android:layout_height="wrap_content"
+        android:layout_marginStart="@dimen/hor_text_view_text_margin_normal"
+        android:layout_marginTop="@dimen/hor_text_view_text_margin_small"
+        android:textSize="@dimen/hor_text_view_text_size"
+        tools:text="person" />
+
+    <TextView
+        android:gravity="end"
+        android:layout_toRightOf="@+id/tv_left_title"
+        android:textColor="@color/black"
+        android:layout_alignParentEnd="true"
+        android:id="@+id/tv_right_content"
+        android:layout_width="wrap_content"
+        android:layout_height="wrap_content"
+        android:layout_marginEnd="@dimen/hor_text_view_text_margin_normal"
+        android:layout_marginStart="@dimen/hor_text_view_text_margin_normal"
+        android:layout_marginTop="@dimen/hor_text_view_text_margin_small"
+        android:textSize="@dimen/hor_text_view_text_size"
+        tools:text="12.5" />
+
+    <View
+        android:id="@+id/view_bottom_line"
+        android:layout_marginTop="@dimen/hor_text_view_text_margin_small"
+        android:layout_alignStart="@+id/tv_left_title"
+        android:layout_alignEnd="@+id/tv_right_content"
+        android:background="@color/gray"
+        android:layout_below="@+id/tv_left_title"
+        android:layout_height="0.5dp"
+        android:layout_width="match_parent"/>
+</RelativeLayout>

model_zoo/official/lite/image_classification/app/src/main/res/mipmap-anydpi-v26/ic_launcher.xml

@@ -0,0 +1,5 @@
+<?xml version="1.0" encoding="utf-8"?>
+<adaptive-icon xmlns:android="http://schemas.android.com/apk/res/android">
+    <background android:drawable="@color/ic_launcher_background"/>
+    <foreground android:drawable="@mipmap/ic_launcher_foreground"/>
+</adaptive-icon>

model_zoo/official/lite/image_classification/app/src/main/res/mipmap-anydpi-v26/ic_launcher_round.xml

@@ -0,0 +1,5 @@
+<?xml version="1.0" encoding="utf-8"?>
+<adaptive-icon xmlns:android="http://schemas.android.com/apk/res/android">
+    <background android:drawable="@color/ic_launcher_background"/>
+    <foreground android:drawable="@mipmap/ic_launcher_foreground"/>
+</adaptive-icon>

model_zoo/official/lite/image_classification/app/src/main/res/values/colors.xml

@@ -0,0 +1,18 @@
+<?xml version="1.0" encoding="utf-8"?>
+<resources>
+    <color name="colorPrimary">#6200EE</color>
+    <color name="colorPrimaryDark">#3700B3</color>
+    <color name="colorAccent">#03DAC5</color>
+
+
+    <color name="mindspore_color_primary">#00D4EF</color>
+    <color name="mindspore_color_primary_dark">#03A9F4</color>
+    <color name="mindspore_color_accent">#769DDA</color>
+
+    <color name="mindspore_semi_transparent">#66000000</color>
+
+    <color name="white">#ffffff</color>
+    <color name="black">#000000</color>
+    <color name="gray">#A69D9D</color>
+
+</resources>

model_zoo/official/lite/image_classification/app/src/main/res/values/dimens.xml

@@ -0,0 +1,9 @@
+<?xml version="1.0" encoding="utf-8"?>
+<resources>
+    <dimen name="ms_bottom_sheet_corner_radius">15dp</dimen>
+    <dimen name="ms_bottom_sheet_top_padding">8dp</dimen>
+
+    <dimen name="hor_text_view_text_margin_normal">15dp</dimen>
+    <dimen name="hor_text_view_text_margin_small">6dp</dimen>
+    <dimen name="hor_text_view_text_size">15sp</dimen>
+</resources>

model_zoo/official/lite/image_classification/app/src/main/res/values/ic_launcher_background.xml

@@ -0,0 +1,4 @@
+<?xml version="1.0" encoding="utf-8"?>
+<resources>
+    <color name="ic_launcher_background">#FFFFFF</color>
+</resources>

model_zoo/official/lite/image_classification/app/src/main/res/values/strings.xml

@@ -0,0 +1,30 @@
+<resources>
+    <string name="app_name">MindSporeClassify</string>
+    <string name="action_settings">设置</string>
+
+    <string name="request_permission">This sample needs camera permission.</string>
+    <string name="camera_error">This device doesn\'t support Camera2 API.</string>
+    <string name="intro_message">使用的google的camera2demo.</string>
+    <string name="appwidget_text">EXAMPLE</string>
+    <string name="add_widget">Add widget</string>
+
+
+    <string name="ms_ic_app_name" translation_description="Image Classification demo app [CHAR_LIMIT=40]">TFL Classify</string>
+    <string name="ms_ic_camera_error" translation_description="Error regarding camera support[CHAR_LIMIT=40]">This device doesn\'t support Camera2 API.</string>
+    <string name="ms_ic_gpu_quant_error" translation_description="Error regarding GPU support for Quant models[CHAR_LIMIT=60]">GPU does not yet supported quantized models.</string>
+    <string name="ms_ic_model" translatable="false">Model:</string>
+    <string-array name="ms_ic_models" translatable="false">
+        <item>Quantized_EfficientNet</item>
+        <item>Float_EfficientNet</item>
+        <item>Quantized_MobileNet</item>
+        <item>Float_MobileNet</item>
+    </string-array>
+
+    <string name="ms_ic_device" translatable="false">Device:</string>
+    <string-array name="ms_ic_devices" translatable="false">
+        <item>CPU</item>
+        <item>GPU</item>
+        <item>NNAPI</item>
+    </string-array>
+
+</resources>

model_zoo/official/lite/image_classification/app/src/main/res/values/styles.xml

@@ -0,0 +1,10 @@
+<resources>
+    <!-- Base application theme. -->
+    <style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar">
+        <!-- Customize your theme here. -->
+        <item name="colorPrimary">@color/colorPrimary</item>
+        <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
+        <item name="colorAccent">@color/colorAccent</item>
+    </style>
+
+</resources>

model_zoo/official/lite/image_classification/app/src/test/java/com/mindspore/himindsporedemo/ExampleUnitTest.java

@@ -0,0 +1,33 @@
+/**
+ * Copyright 2020 Huawei Technologies Co., Ltd
+ *
+ * Licensed under the Apache License, Version 2.0 (the "License");
+ * you may not use this file except in compliance with the License.
+ * You may obtain a copy of the License at
+ *
+ * http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package com.mindspore.himindsporedemo;
+
+import org.junit.Test;
+
+import static org.junit.Assert.*;
+
+/**
+ * Example local unit test, which will execute on the development machine (host).
+ *
+ * @see <a href="http://d.android.com/tools/testing">Testing documentation</a>
+ */
+public class ExampleUnitTest {
+    @Test
+    public void addition_isCorrect() {
+        assertEquals(4, 2 + 2);
+    }
+}

model_zoo/official/lite/image_classification/build.gradle

@@ -0,0 +1,24 @@
+// Top-level build file where you can add configuration options common to all sub-projects/modules.
+buildscript {
+    repositories {
+        google()
+        jcenter()
+    }
+    dependencies {
+        classpath "com.android.tools.build:gradle:4.0.1"
+
+        // NOTE: Do not place your application dependencies here; they belong
+        // in the individual module build.gradle files
+    }
+}
+
+allprojects {
+    repositories {
+        google()
+        jcenter()
+    }
+}
+
+task clean(type: Delete) {
+    delete rootProject.buildDir
+}

model_zoo/official/lite/image_classification/gradle.properties

@@ -0,0 +1,19 @@
+# Project-wide Gradle settings.
+# IDE (e.g. Android Studio) users:
+# Gradle settings configured through the IDE *will override*
+# any settings specified in this file.
+# For more details on how to configure your build environment visit
+# http://www.gradle.org/docs/current/userguide/build_environment.html
+# Specifies the JVM arguments used for the daemon process.
+# The setting is particularly useful for tweaking memory settings.
+org.gradle.jvmargs=-Xmx2048m
+# When configured, Gradle will run in incubating parallel mode.
+# This option should only be used with decoupled projects. More details, visit
+# http://www.gradle.org/docs/current/userguide/multi_project_builds.html#sec:decoupled_projects
+# org.gradle.parallel=true
+# AndroidX package structure to make it clearer which packages are bundled with the
+# Android operating system, and which are packaged with your app"s APK
+# https://developer.android.com/topic/libraries/support-library/androidx-rn
+android.useAndroidX=true
+# Automatically convert third-party libraries to use AndroidX
+android.enableJetifier=true

model_zoo/official/lite/image_classification/gradle/wrapper/gradle-wrapper.properties

@@ -0,0 +1,6 @@
+#Tue Jul 28 10:28:05 CST 2020
+distributionBase=GRADLE_USER_HOME
+distributionPath=wrapper/dists
+zipStoreBase=GRADLE_USER_HOME
+zipStorePath=wrapper/dists
+distributionUrl=https\://services.gradle.org/distributions/gradle-6.1.1-all.zip

model_zoo/official/lite/image_classification/gradlew

@@ -0,0 +1,172 @@
+#!/usr/bin/env sh
+
+##############################################################################
+##
+##  Gradle start up script for UN*X
+##
+##############################################################################
+
+# Attempt to set APP_HOME
+# Resolve links: $0 may be a link
+PRG="$0"
+# Need this for relative symlinks.
+while [ -h "$PRG" ] ; do
+    ls=`ls -ld "$PRG"`
+    link=`expr "$ls" : '.*-> \(.*\)$'`
+    if expr "$link" : '/.*' > /dev/null; then
+        PRG="$link"
+    else
+        PRG=`dirname "$PRG"`"/$link"
+    fi
+done
+SAVED="`pwd`"
+cd "`dirname \"$PRG\"`/" >/dev/null
+APP_HOME="`pwd -P`"
+cd "$SAVED" >/dev/null
+
+APP_NAME="Gradle"
+APP_BASE_NAME=`basename "$0"`
+
+# Add default JVM options here. You can also use JAVA_OPTS and GRADLE_OPTS to pass JVM options to this script.
+DEFAULT_JVM_OPTS=""
+
+# Use the maximum available, or set MAX_FD != -1 to use that value.
+MAX_FD="maximum"
+
+warn () {
+    echo "$*"
+}
+
+die () {
+    echo
+    echo "$*"
+    echo
+    exit 1
+}
+
+# OS specific support (must be 'true' or 'false').
+cygwin=false
+msys=false
+darwin=false
+nonstop=false
+case "`uname`" in
+  CYGWIN* )
+    cygwin=true
+    ;;
+  Darwin* )
+    darwin=true
+    ;;
+  MINGW* )
+    msys=true
+    ;;
+  NONSTOP* )
+    nonstop=true
+    ;;
+esac
+
+CLASSPATH=$APP_HOME/gradle/wrapper/gradle-wrapper.jar
+
+# Determine the Java command to use to start the JVM.
+if [ -n "$JAVA_HOME" ] ; then
+    if [ -x "$JAVA_HOME/jre/sh/java" ] ; then
+        # IBM's JDK on AIX uses strange locations for the executables
+        JAVACMD="$JAVA_HOME/jre/sh/java"
+    else
+        JAVACMD="$JAVA_HOME/bin/java"
+    fi
+    if [ ! -x "$JAVACMD" ] ; then
+        die "ERROR: JAVA_HOME is set to an invalid directory: $JAVA_HOME
+
+Please set the JAVA_HOME variable in your environment to match the
+location of your Java installation."
+    fi
+else
+    JAVACMD="java"
+    which java >/dev/null 2>&1 || die "ERROR: JAVA_HOME is not set and no 'java' command could be found in your PATH.
+
+Please set the JAVA_HOME variable in your environment to match the
+location of your Java installation."
+fi
+
+# Increase the maximum file descriptors if we can.
+if [ "$cygwin" = "false" -a "$darwin" = "false" -a "$nonstop" = "false" ] ; then
+    MAX_FD_LIMIT=`ulimit -H -n`
+    if [ $? -eq 0 ] ; then
+        if [ "$MAX_FD" = "maximum" -o "$MAX_FD" = "max" ] ; then
+            MAX_FD="$MAX_FD_LIMIT"
+        fi
+        ulimit -n $MAX_FD
+        if [ $? -ne 0 ] ; then
+            warn "Could not set maximum file descriptor limit: $MAX_FD"
+        fi
+    else
+        warn "Could not query maximum file descriptor limit: $MAX_FD_LIMIT"
+    fi
+fi
+
+# For Darwin, add options to specify how the application appears in the dock
+if $darwin; then
+    GRADLE_OPTS="$GRADLE_OPTS \"-Xdock:name=$APP_NAME\" \"-Xdock:icon=$APP_HOME/media/gradle.icns\""
+fi
+
+# For Cygwin, switch paths to Windows format before running java
+if $cygwin ; then
+    APP_HOME=`cygpath --path --mixed "$APP_HOME"`
+    CLASSPATH=`cygpath --path --mixed "$CLASSPATH"`
+    JAVACMD=`cygpath --unix "$JAVACMD"`
+
+    # We build the pattern for arguments to be converted via cygpath
+    ROOTDIRSRAW=`find -L / -maxdepth 1 -mindepth 1 -type d 2>/dev/null`
+    SEP=""
+    for dir in $ROOTDIRSRAW ; do
+        ROOTDIRS="$ROOTDIRS$SEP$dir"
+        SEP="|"
+    done
+    OURCYGPATTERN="(^($ROOTDIRS))"
+    # Add a user-defined pattern to the cygpath arguments
+    if [ "$GRADLE_CYGPATTERN" != "" ] ; then
+        OURCYGPATTERN="$OURCYGPATTERN|($GRADLE_CYGPATTERN)"
+    fi
+    # Now convert the arguments - kludge to limit ourselves to /bin/sh
+    i=0
+    for arg in "$@" ; do
+        CHECK=`echo "$arg"|egrep -c "$OURCYGPATTERN" -`
+        CHECK2=`echo "$arg"|egrep -c "^-"`                                 ### Determine if an option
+
+        if [ $CHECK -ne 0 ] && [ $CHECK2 -eq 0 ] ; then                    ### Added a condition
+            eval `echo args$i`=`cygpath --path --ignore --mixed "$arg"`
+        else
+            eval `echo args$i`="\"$arg\""
+        fi
+        i=$((i+1))
+    done
+    case $i in
+        (0) set -- ;;
+        (1) set -- "$args0" ;;
+        (2) set -- "$args0" "$args1" ;;
+        (3) set -- "$args0" "$args1" "$args2" ;;
+        (4) set -- "$args0" "$args1" "$args2" "$args3" ;;
+        (5) set -- "$args0" "$args1" "$args2" "$args3" "$args4" ;;
+        (6) set -- "$args0" "$args1" "$args2" "$args3" "$args4" "$args5" ;;
+        (7) set -- "$args0" "$args1" "$args2" "$args3" "$args4" "$args5" "$args6" ;;
+        (8) set -- "$args0" "$args1" "$args2" "$args3" "$args4" "$args5" "$args6" "$args7" ;;
+        (9) set -- "$args0" "$args1" "$args2" "$args3" "$args4" "$args5" "$args6" "$args7" "$args8" ;;
+    esac
+fi
+
+# Escape application args
+save () {
+    for i do printf %s\\n "$i" | sed "s/'/'\\\\''/g;1s/^/'/;\$s/\$/' \\\\/" ; done
+    echo " "
+}
+APP_ARGS=$(save "$@")
+
+# Collect all arguments for the java command, following the shell quoting and substitution rules
+eval set -- $DEFAULT_JVM_OPTS $JAVA_OPTS $GRADLE_OPTS "\"-Dorg.gradle.appname=$APP_BASE_NAME\"" -classpath "\"$CLASSPATH\"" org.gradle.wrapper.GradleWrapperMain "$APP_ARGS"
+
+# by default we should be in the correct project dir, but when run from Finder on Mac, the cwd is wrong
+if [ "$(uname)" = "Darwin" ] && [ "$HOME" = "$PWD" ]; then
+  cd "$(dirname "$0")"
+fi
+
+exec "$JAVACMD" "$@"

model_zoo/official/lite/image_classification/gradlew.bat

@@ -0,0 +1,84 @@
+@if "%DEBUG%" == "" @echo off
+@rem ##########################################################################
+@rem
+@rem  Gradle startup script for Windows
+@rem
+@rem ##########################################################################
+
+@rem Set local scope for the variables with windows NT shell
+if "%OS%"=="Windows_NT" setlocal
+
+set DIRNAME=%~dp0
+if "%DIRNAME%" == "" set DIRNAME=.
+set APP_BASE_NAME=%~n0
+set APP_HOME=%DIRNAME%
+
+@rem Add default JVM options here. You can also use JAVA_OPTS and GRADLE_OPTS to pass JVM options to this script.
+set DEFAULT_JVM_OPTS=
+
+@rem Find java.exe
+if defined JAVA_HOME goto findJavaFromJavaHome
+
+set JAVA_EXE=java.exe
+%JAVA_EXE% -version >NUL 2>&1
+if "%ERRORLEVEL%" == "0" goto init
+
+echo.
+echo ERROR: JAVA_HOME is not set and no 'java' command could be found in your PATH.
+echo.
+echo Please set the JAVA_HOME variable in your environment to match the
+echo location of your Java installation.
+
+goto fail
+
+:findJavaFromJavaHome
+set JAVA_HOME=%JAVA_HOME:"=%
+set JAVA_EXE=%JAVA_HOME%/bin/java.exe
+
+if exist "%JAVA_EXE%" goto init
+
+echo.
+echo ERROR: JAVA_HOME is set to an invalid directory: %JAVA_HOME%
+echo.
+echo Please set the JAVA_HOME variable in your environment to match the
+echo location of your Java installation.
+
+goto fail
+
+:init
+@rem Get command-line arguments, handling Windows variants
+
+if not "%OS%" == "Windows_NT" goto win9xME_args
+
+:win9xME_args
+@rem Slurp the command line arguments.
+set CMD_LINE_ARGS=
+set _SKIP=2
+
+:win9xME_args_slurp
+if "x%~1" == "x" goto execute
+
+set CMD_LINE_ARGS=%*
+
+:execute
+@rem Setup the command line
+
+set CLASSPATH=%APP_HOME%\gradle\wrapper\gradle-wrapper.jar
+
+@rem Execute Gradle
+"%JAVA_EXE%" %DEFAULT_JVM_OPTS% %JAVA_OPTS% %GRADLE_OPTS% "-Dorg.gradle.appname=%APP_BASE_NAME%" -classpath "%CLASSPATH%" org.gradle.wrapper.GradleWrapperMain %CMD_LINE_ARGS%
+
+:end
+@rem End local scope for the variables with windows NT shell
+if "%ERRORLEVEL%"=="0" goto mainEnd
+
+:fail
+rem Set variable GRADLE_EXIT_CONSOLE if you need the _script_ return code instead of
+rem the _cmd.exe /c_ return code!
+if  not "" == "%GRADLE_EXIT_CONSOLE%" exit 1
+exit /b 1
+
+:mainEnd
+if "%OS%"=="Windows_NT" endlocal
+
+:omega

model_zoo/official/lite/image_classification/settings.gradle

@@ -0,0 +1,2 @@
+include ':app'
+rootProject.name = "HiMindSporeDemo"
